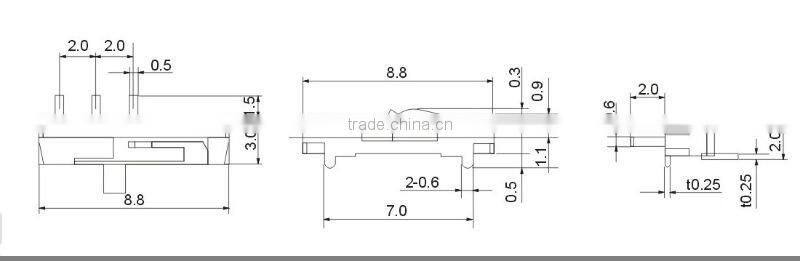

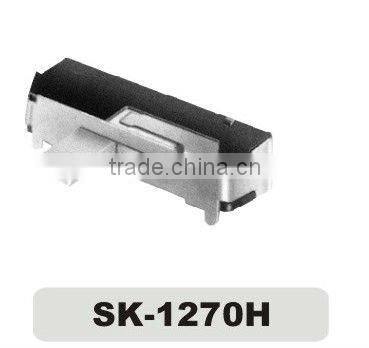

Smd Mini Slide Switch Sk-1270H

Specifications

Mini slide switch:
1 ISO 9001 ,SGS report,ROHS compliant
2 5 years Manufacturers
3 Quality is guaranteed and low price

Mini slide Switches

Specification

Working Temperature	-30°C~+80°C
Rated Load	DC 30V,0.5A
Contact resistance	500mΩ max
Insulation resistance	100MΩ min at 500V DC
Withstand voltage	AC 250(50Hz)/min
Lifetime Actuationg Force	100,000 cycles min 60~70N





Application of  mini  switch series:

 Widely apply to:

1.Audio Products:MP3,MP4,DVD. Audio;

2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;

5.We have all kinds of phone jacks(2.5mm/3.5mm/6.35mm),Dc Power Jacks,RCA Jacks,Connectors,Switches(flip/micro/power/rocket/multi function),A&V Composite-Board,USB,PCB,HDMI,DR/DB Jacks,DIV,SATA etc.





Services:

 1.Size,color,materials and plating can be variable according to customer definition.

2..Consulting price on alitalk must reply  ASAP in working days.

3).we can provide the products few as samples  with high quality,moderate price,and good customer services,any help, ontact us please.
