Specifications
Mini slide switch:1 ISO 9001 ,SGS report,ROHS compliant
2 5 years Manufacturers
3 Quality is guaranteed and low price

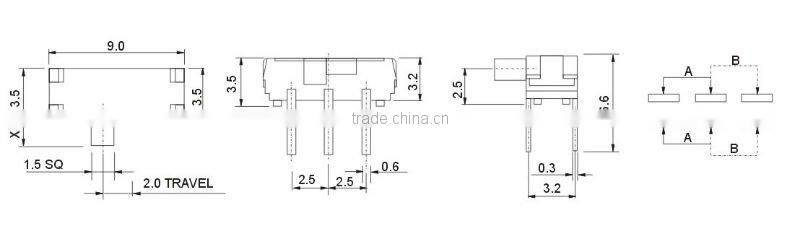

Mini slide Switches
Specification
Working Temperature | -30°C~+80°C |
Rated Load | DC 30V,0.5A |
Contact resistance | 500mΩ max |
Insulation resistance | 100MΩ min at 500V DC |
Withstand voltage | AC 250(50Hz)/min |
Lifetime Actuationg Force
| 100,000 cycles min 60~70N |
Application of mini switch series:
Widely apply to:
1.Audio Products:MP3,MP4,DVD. Audio;
2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;
5.We have all kinds of phone jacks(2.5mm/3.5mm/6.35mm),Dc Power Jacks,RCA Jacks,Connectors,Switches(flip/micro/power/rocket/multi function),A&V Composite-Board,USB,PCB,HDMI,DR/DB Jacks,DIV,SATA etc.
Services:
1.Size,color,materials and plating can be variable according to customer definition.
2..Consulting price on alitalk must reply ASAP in working days.
3).we can provide the products few as samples with high quality,moderate price,and good customer services,any help, ontact us please.
