Specifications
1. ISO9001 and ROHS certified2. Good feeling and long life
3. Customization available
4. Short lead time

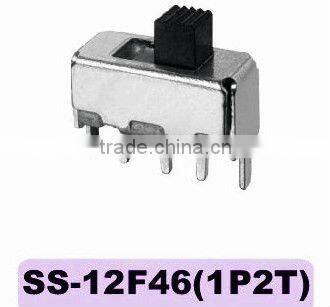

switch toggle SS-12F46(1P2T)
Quick Details
Capacity: 20000 pieces per week MOQ: 2000 pieces
Brand Name: XF Certificates: ISO9001 and ROHS
Model Number: SS-12F46(1P2T) Mechanical Life: 10 years
Packaging & Delivery
Packaging Detail: 100pieces per transparent plastic bag, 10 bags in one paper carton
Delivery detail: 7days after the payment
Specification
Toggle Switch | |
Model No. |
SS-12F46(1P2T) |
Rating |
DC 30V, 0.5A |
Contact Resistance |
30mΩ MAX. |
Insulation Resistance |
100mΩ MIN. at DC 500V |
Withstand Voltage |
AC 500V for 1 minute |
Operating Life |
10,000 cycles(15-18cycles/minute,unloading) |
Feature
The switches are widely used in the fields of electronic product, toys, computer instrument ,household appliance, such as computer mouse, communication facility, military product, test instrument, gas water heater, gas burner, small household facility and so on
How to get price for this toggle switch?
1. E-mail us with the type you are interested in.
2. We will reply to you with price in one working day.
Ordering Notes
1. You can order single items as samples
2.Shipping worldwide.
