Help Centerdc Power Jack Connector DC-020-SMD
Related Products
Specifications
1.ISO9001 and ROHS certified2. Good feeling and long life
3. Customization available
4. Short lead time

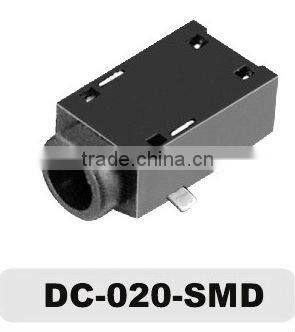

dc power jack connector DC-020-SMD
Quick Details
Capacity: 200000 pieces per week MOQ: 2000 pieces
Brand Name: XF Certificates: ISO9001 and ROHS
Model Number: DC-020-SMD Mechanical Life: 10 years
Packaging & Delivery
Packaging Detail: 100pieces per transparent plastic bag, 10 bags in one paper carton
Delivery detail: 7days after the payment
Specifications
Product Name |
DC-020-SMD |
Type |
DC POWER SWITCH |
Temperature |
-30~70 |
Rated Load |
DC 30V 0.5A |
Contact Resistance |
≤0.03Ω |
Insulation resistance |
≥100mΩ |
Withstand Voltage |
AC 500V(50Hz)/min |
Insertion and Extraction Force |
320N |
Lifer |
5000 |
Application
1.Audio Products: MP3,MP4,DVD. Audio;
2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;
PS :
For more details, welcome to our homepage.
Website: http://www.jf-switch.en.china.cn
If you have any questions about our products, please contact us.
You can also send E-mail to us.
Thanks for your visit.
