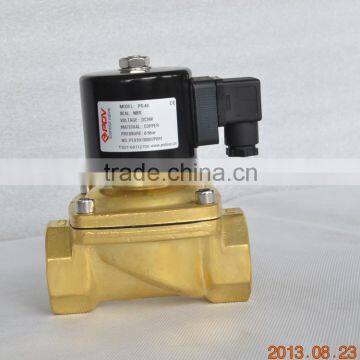

Brass 1 inch solenoid valve normally close 24v solenoid valve water
Valve introduction:
PS 2/2 way normally closed type 24v solenoid valve water, power off down, electricity open,
the valve body for brass, stainless steel SS304, stainless steel SS316,the highest pressure of 10kg/cm2
and the environment temperature of 0-65°C , this product for series produce with small volume, big flow,
wide application scope. It can be installation at any angle according to the direction of the arrow on the valve;
in order to add the service life of the valve, better to winding up, level installation. Film and seals using NBR, VITON,EPDM a variety of materials to suitable for the switch control of different fluids.
Technical parameters:
Body material |
Wrought brass,SS304, SS316 |
Environment temperature |
0°C~65°C |
Medium temperature |
NBR:0°C~80°C EPDM:0°C~120°C |
Suitable voltage |
AC24V/110V/230V/240V 50/60HZ DC24V/12V ±10% permitted range |
The highest pressure |
10kgf/cm2 |
Structure form |
Direct acting zero pressure difference start |
Connection type |
G thread,NPT thread,flange |
Diaphragm sealing |
VITON,NBR,EPDM |
Control pattern |
Normally closed type |
Explosion proof coil |
Optional explosion proof coil Exm1/11T4 |
Applicable medium |
Gas, liquid, oil, water, steam, etc |

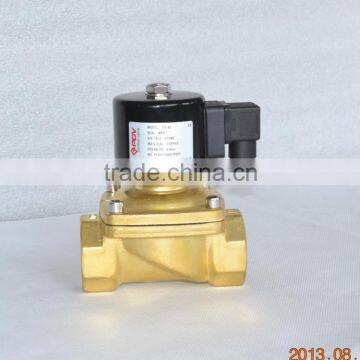

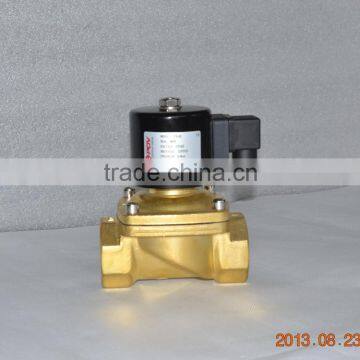

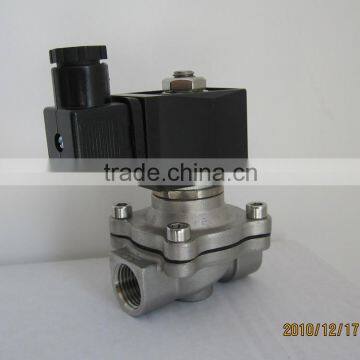

Related picture for your checking:
- 2/2way normal close type solenoid valve, electricity open, power off down.
- Small volume, big flow, wide application scope.
- Forging copper and stainless steel precision casting.
- Direct drive structure start fast, long service life.
Can be optional explosion proof type:
Exm 1 /11 T4
We mainly supply high quality ball valve, butterfly valves, pneuamtic actuator, electric
actuator, pneuamtic angle seat valve pneumatic diaphragm valve,pvc valve, sanitary valve,
3 way ball valve, regulation valve and penuamatic valve accessories.
POV is always keeping its advantage of leading technology so as to produce high quality
products and promptly provide customers with comprehensive and satisfactory services.
Please show the solenoid valve 24v water working shop and testing procedure?
2. Please show some pictures to introduce how to installed on the pipeline?
Pov valves (Shanghai) Co., Ltd
Thank you very much for your checking here, we promise the best product quality and best service for
you, hope you can have a nice shopping mood here and find the suitable products here, have a nice day;
