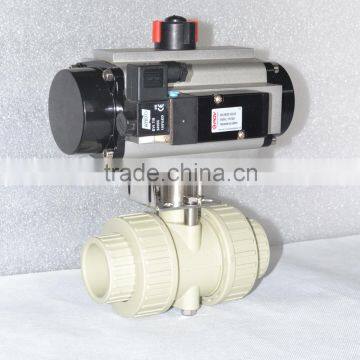

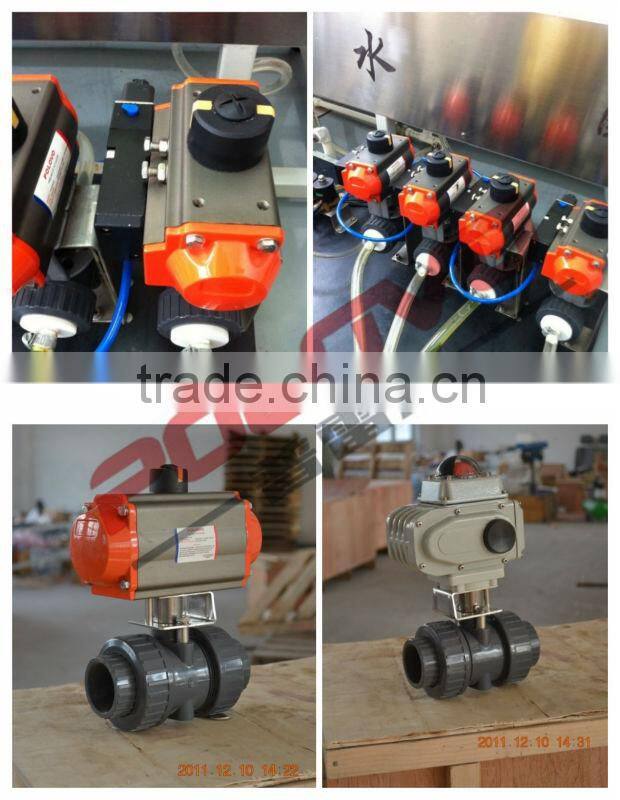

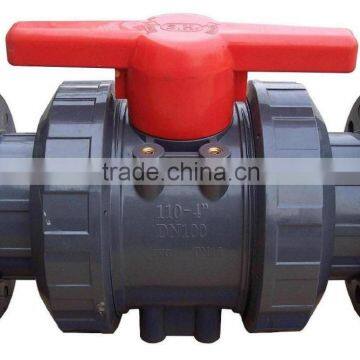

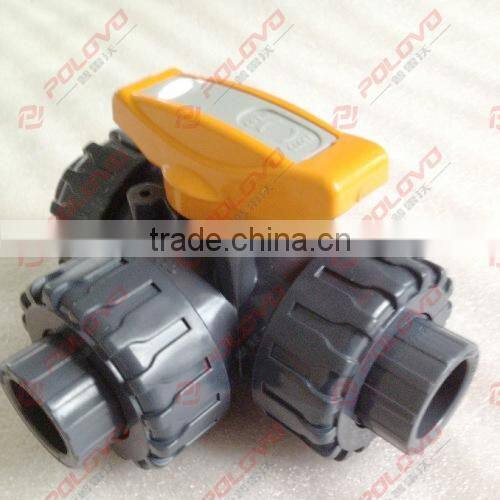

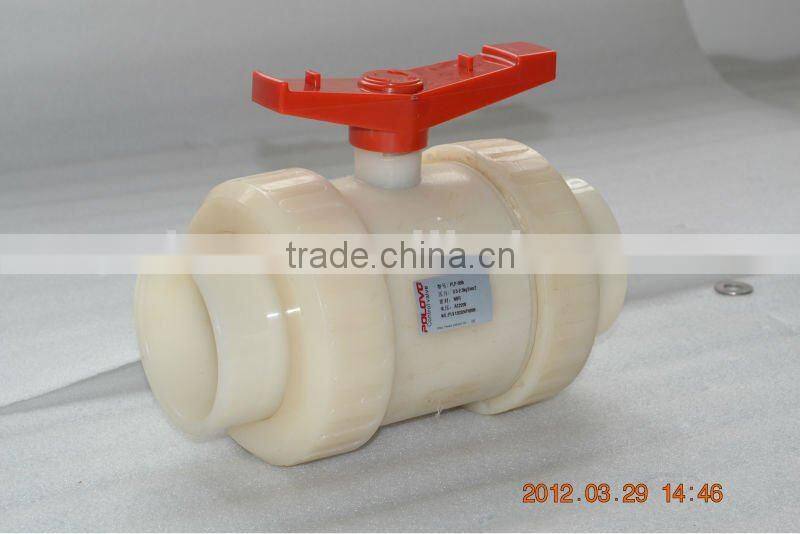

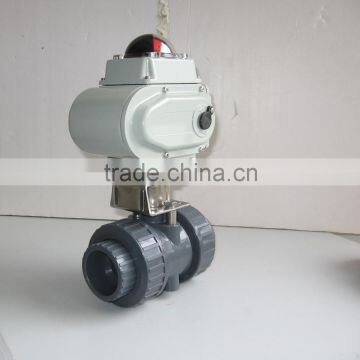

Plastic ball valve agricultural irrigation valve
Product Parameters:
Control type |
Hand lever, pneumatic, electric |
Pneumatic actuator |
Double acting,single acting |
Pneumatic accessories |
Limit switch,positioner,solenoid valve,filter relief-pressure valve,hand wheel-operated. |
Nominal diameter |
DN15-DN100mm (2 way) / DN15-50mm (3 way) |
Nominal pressure |
1.0-1.6MPa |
Applicable temperature |
-30~80°C |
Connection |
Flanged, double union,thread |
Body structure |
2 way,T/L-type three way |
Body material |
UPVC,CPVC,PP, PVDF |
Disc material |
UPVC,CPVC,PP, PVDF |
Seat lining |
PTFE |
Applicable medium |
PVC compatible food industrial solvents |
Type specification table:
|
Nominal Size (mm) |
Outline size dimension |
Working pressure (MPa) |
Net weight (UPVC) |
||
D |
L |
L1 |
|||
15 (1/2’’) |
20 |
100 |
15 |
1.0 |
0.25 |
20 (3/4’’) |
25 |
120 |
17 |
1.0 |
0.26 |
25 (1’’) |
32 |
135 |
20 |
1.0 |
0.37 |
32 (1 1/4’’) |
40 |
150 |
23 |
1.0 |
0.58 |
40 (1 1/2’’) |
50 |
170 |
25 |
1.0 |
0.92 |
50 (2’’) |
63 |
200 |
28 |
1.0 |
1.47 |
65 (2 1/2’’) |
75 |
215 |
32 |
1.0 |
2 |
80 (3’’) |
90 |
265 |
35 |
1.0 |
3.3 |
100 (4’’) |
110 |
360 |
45 |
1.0 |
5.5 |

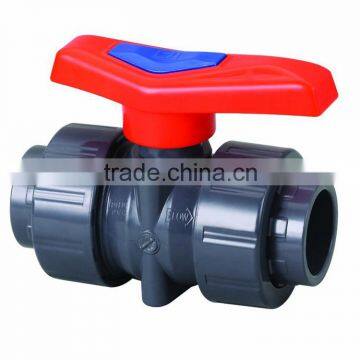

Plastic lever handle ball valve for your checking:
* Itself light weight
* Material health and non-toxic
* Maintenance ,replacement and remove convenient
* Strong corrosion resistance, adapt to large diameter
Welcome to here, have any interesting in our valves please don't hesitate to
mail me or leave a message here for me, thank you very much and have a nice day !
Tel: +21 68112100
Fax: +21 39652505
Contact person: Arina Wang
Thank you agian and best regards.
Please contact with me and provide some parameters such as: diameter,
medium,material, MOQ, etc.We will contact you as soon as possible!
