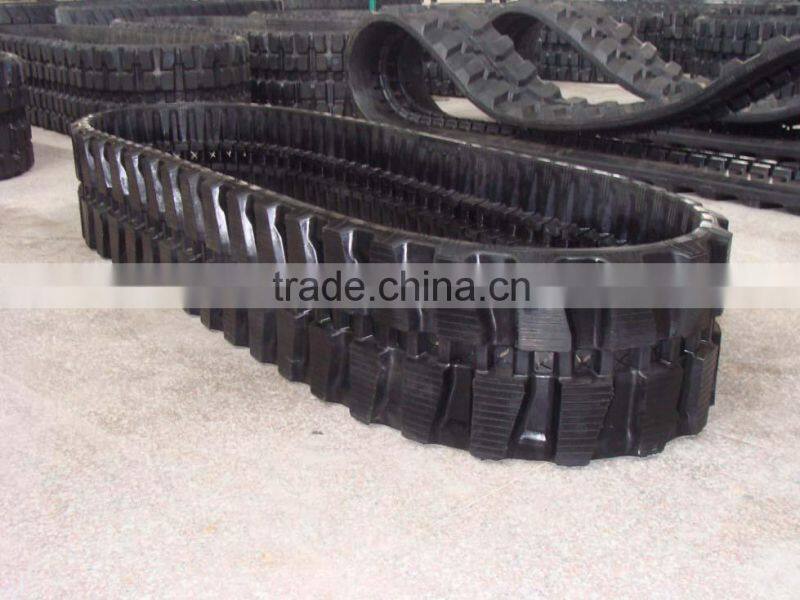

Guma przemysiowa Tory 350x90w

Name: Guma przemysiowa Tory 350x90w
Brand: L-GUARD
Availability: InStock

FOB Price

USD $30 - $1,500 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	L-GUARD
Model Number	350x90w	Tire Design	Bias
Type	Other

Product Description

L-GUARD TIRES CORP Has 10 years' exporting experience.

Agricultural Tires Description:
1.Our suppliers have extended the EUROPE, AUSTRALIA, AMERICA, AFRICA, ASIA, and CHINA mainland ect.
2.Carcass design with wear-resisting, good anti-impact and traction, strong adhesion, prick-proof, wear-resisting, better self-clesnness; stress, strong and economic and practicable suitable for workong in the field and agricultural transportat
3.This style is suitable for driving on the soft-road.
About L-GUARD TIRES CORP
Our factory specializes in producing solid tires. good service. All our tyres are three stages with steel rings in it.
We have exported to almost all of the world, such as Spain, Singapore, Japan, South Africa, Chile, Australia and so on. Welcome to contact me and I will reply you as soon as possible.
Trade terms
1.Brand :L-GUARD
2.Payment terms:30% TT in advance, 70% banlance against copy of BL
3.Delivery time: within 25 days

400*90 350*90 450*90
rubber track, track roller, Sprocket, rubber pads
brand name :l-guard
place of origin :Shandong,China

Industral Rubber Tracks

No.	Size	Weight/Link	No.	Size	Weight/Link
1	150 X 72	0.60	35	350X54.5	2.32
2	180 X 60	0.59	36	350 X 56	2.27
3	180 X 72	0.66	37	350 X 56R	2.66
4	180 X 72K	0.95	38	350 X 75.5	3.68
5	200 X 72	0.89	39	350 X 109	4.10
6	200 X 72K	1.05	40	370 X 107	4.82
7	230 X 48	0.88	41	400X72.5K	3.46
8	230 X 72	1.15	42	400X72.5N	3.63
9	230 X 96	1.67	43	400X72.5W	3.86
10	250 X 47	1.18	44	400X72.5Y	3.94
11	250X48.5Y	1.35	45	400X72.5R	4.27
12	250X52.5K	1.29	46	400 X 75.5	3.94
13	250 X72	1.41	47	400 X 107K	5.08
14	250 X 96	2.23	48	400X142K	7.00
15	260 X 96	2.39	49	420 X 100	5.48
16	260X109	2.92	50	450 X 71	4.38
17	280 X 72	1.46	51	450X73.5	4.49
18	280 X 106	3.15	52	450 X 76	5.20
19	300X52.5K	1.79	53	450 X 81N	4.88
20	300 X52.5N	1.49	54	450 X 81W	5.01
21	300X52.5W	1.56	55	450 X 83.5	5.49
22	300X53	1.81	56	450X83.5Y	5.80
23	300X55	1.84	57	450 X 84K	4.72
24	300X55.5	1.87	58	450X86	4.64
25	300X109K	3.75	59	450 X 100	5.93
26	300X109N	3.26	60	450X163	10.38
27	300X109W	3.26	61	500X90	6.32
28	320X54	1.70	62	500X92	8.77
29	320X84	3.08	63	600X100	9.08
30	320X86	3.26	64	700X100	12.80
31	320X90	2.99	65	750X150	23.77
32	320X100	3.24	66	800X150	21.93
33	320X106	3.63	67	800X125	19.64
34	350X52.5	1.88	68

If you want to equip your machine with rubber tracks and you cannot read the rubber
track size, you can define the size in the following way.

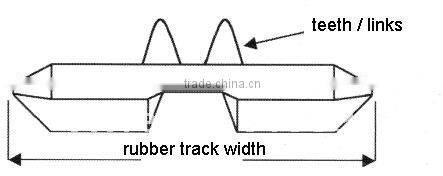

1. Measure the width of the rubber track.

2. Define the number of links by counting the teeth of the rubber track.

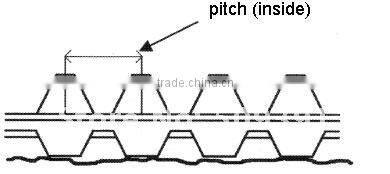

3. Measure the distance between the teeth. This is the pitch.

Width and length of the rubber track are quoted in millimeters.
Example:
For a rubber track marked 300 x 109 x 37 following could be said
• the width of the rubber track is 300mm
• the distance between the links is 109mm
• the rubber track consists of 37 links
Please note:

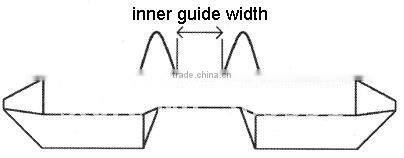

For several rubber tracks also the inner guide width has to be defined.

Any comment by return will be much appreciated.
It will be our pleasure to cooperate with your company in the near future.

Welcome to contact me!!!
