Keewin 65inch Vertical Floor Standing Double Sided High Brightness Outdoor LCD Advertising Display Digital Signage
Unique Design
New structure desgin, fully outdoor waterproof, burglar-proof
Easy for installation and services
High brightness 2500-5000cd/m2
High Transmission and Explosion-proof Glass
safety glass, high transmission and zero UV
reduce irradiation, explosion-proof
Ultra-thin Integrated Frame Design
Width 14cm,ultra-thin frame design
Fan cooling System Design
Fan cooling System, Environmental Protection and Energy Saving
Reducing Power Consumption
Fundamentally tackle the difficulty issue that the power consumpation of outdoor machine is too high
Engergy Saving and Emission Reduction to response green development trend in the world

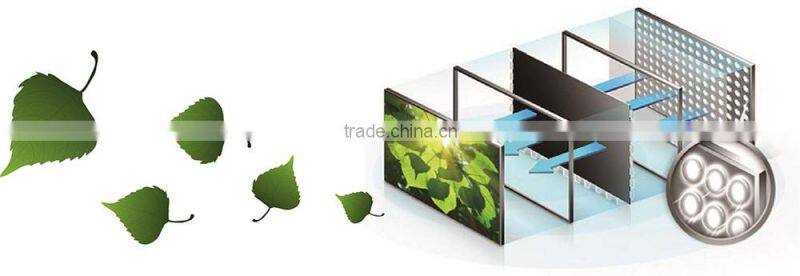

Optical System Design
LED backlight, Environmental Protection and Energy Saving
Auto Brightness Control
World‘s leading light emitting diode
(55“,2500 cd/m2,300 w)
Environmental control system design
Intelligent temperature control system

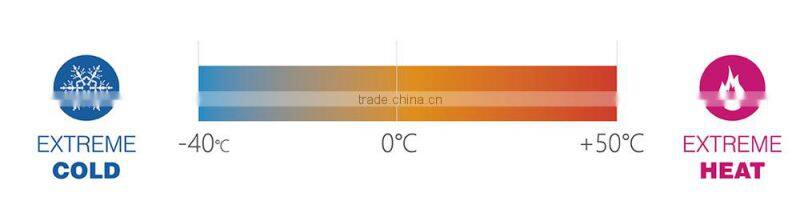

LCD operation temperature:-40℃~+50℃
Technology of heat dissipation obtain international patent
Blackening defect free in direct sunlight
High bightness module invented by Keewin dissipate heat by itself and owns auto temperature control system.
New desgin to control temperature inside of display
Product System Test
Frame and temperature controlling system obey standard of community industry to design and manufacture
Rich experiences on designing and manufacturing industrial cooling system
Unique laborotary of environment simulation (high temperature, low temperature, rain and sun)
Before leave factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.

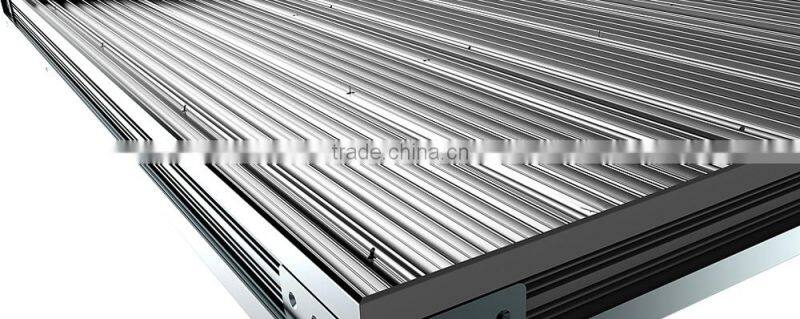

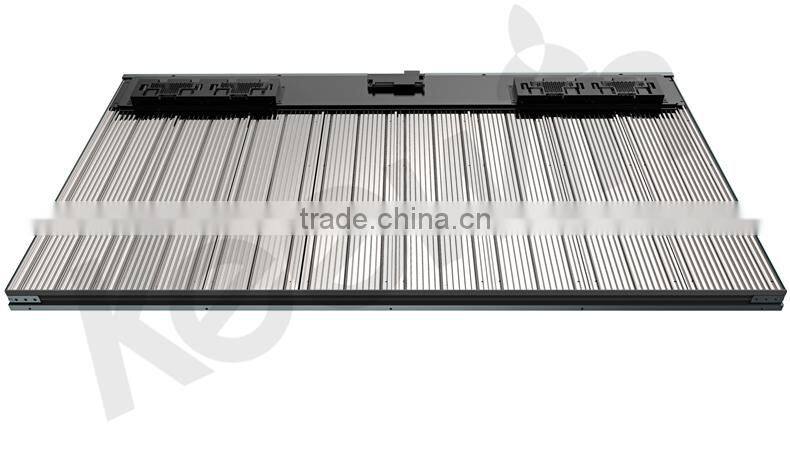

All Metal Structure Design Cooling Performance Strong
Using high brighntess module researched and invented by Keewin
Utlizing all metal structure and its LED board taking high thermal conductivity of metal material,
Keewin Module realize heat transfer to the greatest extent, reduce operating temperature of the whole machine.
Maintaining and Upgrading easily
Using unique patent structure to sparate LED backlight board, Keewin display not need to be returned back to dust free room, which available for fixing and replacing in site, so it reduce customers' fixing time and cost, meanwhile increase their operation benefits.
Vividness Uniformity High Color Saturation
Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000cd/m2 of screens can reach over 90%, and are more readable, colorful and accurate.
- What is sunlight readable, daylight viewable?
A sunlight readable or daylight viewable monitor is also known as a high brightness monitor. It is designed to operate in very bright environments, for example in broad daylight. High brightness monitors are typically used commercially in kiosks and out-of-home advertising.
Keewin recommends screens with a brigthness rating of at least 2,500 for applications in high ambient light locations, and 5,000 nits for applications in direct sunlight.
Source: High brightness monitor. (2011, February 17). In Wikipedia, The Free Encyclopedia. Retrieved May 8, 2013,
from /w/index.php?title=High_brightness_monitor&oldid=414450560
- Can Keewin high brightness LCDs be used outdoors?

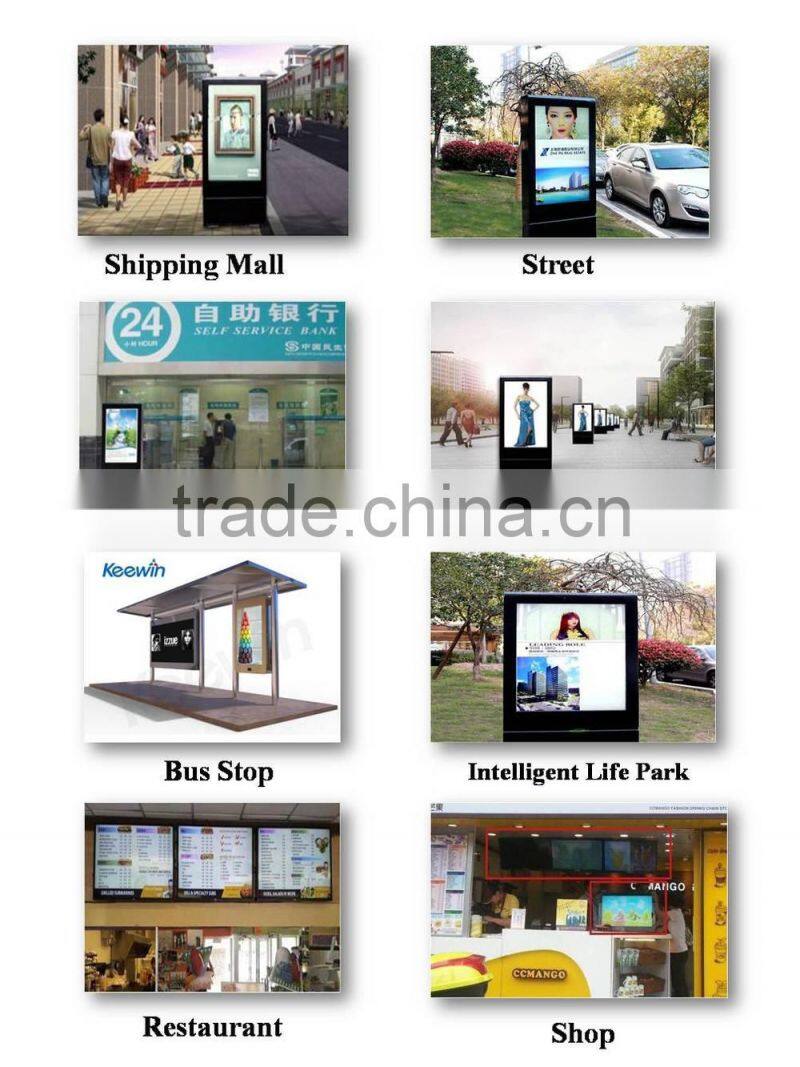

With daylight viewable capabilities, Keewin high brightness screens are great for outdoor applications such as kiosks and building facades. For outdoor installations a weatherproof enclosure is required. In many instances, this may include the use of an air conditioning system.
- What is the difference between a professional and commercial display?
Unlike consumer television sets, professional displays are designed to run 24 hours a day, 7 days a week with advanced heat management systems. Built with security in mind, they offer rugged metal construction and the ability to lockout remote control functions. While televisions are limited to being mounted in a landscape orientation, professional displays may also be mounted in a vertical, portrait orientation. Perhaps most importantly, consumer televisions are not covered by warranty when used in a commercial environment.
ISO9001:2008 ISO14001:2004
Keewin Display, a wholly owned subsidiary of Keewin International Ltd., leads the way in LCD display technology innovation. As a globally recognized leader in LCD display industry, we dedicates in custom design, manufacture and marketing of the state of art high brightness TFT LCD panels, high brightness sunlight readable outdoor display, high brightness digital signage and super-thin dual-side display.
Our mission:
We promise to offer quick delivery, reliable after-sales services to meet the challenging market demands.
We will continue cooperating with domestic and foreign customers to custom design for all their commercial display needs, especially outdoor display needs.
We look forward to building up business relationship based on mutual benefits and win-win situation with all customers worldwide.
Keewin owned a bold innovation, strong technical force, strong technical expertise cadre.The company has applied for a patent to the Patent Office of China for its multiple self-developed techniques with innovative significance .The company possesses a production base of 8000 square meters,Its main products include the standard display device high brightness,outdoor industry standard innovation products display solution.The company is ability to provide industry breakdown solutions,one-stop service for customers.We can not only meet the large-scale demands of mass production,but also provide personalized to meet customer customized production demand.
We would like to provide you with the following after-sale service based on the aim that "Service is only a starting point, satisfaction with no end"
-
Installation, Testing and Training Services
Our technical engineer will take charge of the installation and testing , train and guide the technicians of customers how to operate ,maintain the system equipment and other attentions on site or in the offered site , Implement the turnkey service to users.
-
Lifelong Repair
After the warranty period, our company offers life-long repair services, to provide total customer experience and various service scheme selection for industry customers . Only charged cost fees
-
7×24s hot-line service
The company has a parts storehouse, technical service and repair center, 7 x 24 hours service hotline, on-site repairing and scene change service for 24 hours a day .
-
Fast Response
While the customer's system is abnormal , the company will help customers to solve problems immediately through internet or telephone, and put forward the repair plan within half an hour; If you need a on-site repairing, the engineer will arrive the site by the fastest transportation at the first time after receiving fault report .
-
Client Review
Establish a client review system, a special after-sale service engineer, monthly timing review to inquiry system usage by telephone.
-
On-site Technical Support
In order to guarantee the task smoothly, we can send an engineer to offer technical support on-site in the event of an important task.
| KWO65 | ||
| Item | Type | Specification |
| Panel | Panel Size | KW6525 |
| Active Display Size | 65'' | |
| Backlight | Direct LED | |
| Resolution | 1920(RGB)×1080(FHD) | |
| Brightness | 2500 cd/m2 | |
| Contrast Ratio | 4000 : 1 | |
| Response time | 6 ms | |
| Viewing angle | Horizontal 178° and Vertical 178° | |
| Colors | 16.7M(8-bit) | |
| Transmissivity | 6.35% | |
| Show Direction | Longitudinal | |
| Service life | 50000hours | |
| Functional Characteristics | Video Input | USB×1,SD×1 |
| USB, SD supports video formats | support extended.avi,mpg,dat,rm/rmbv,wmv | |
| USB, SD supports audio formats | support extended.mp3 | |
| USB, SD supports image formats | support extend.jpg/jpeg,bmp,png | |
| USB, SD support audio formats | Support Extended.mp3 | |
| USB, SD support image formats | Support Extended.jpg/jpeg,bmp,png | |
| Audio Output | 2x5W (8ohm) | |
| Timing on-off | Free set Multi-period time | |
| Abnormal voltage protection | Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range. | |
| Intelligent temperature control system | Intelligent temperature control function can automaticlly control the working situation of cooling fan according to envirionment, to ensure that products can work in environment of high temperature. | |
| Power Supply | Intelligent optical sensor | With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment. |
| Outdoor grade | IP55,sunlight readable , no blacking | |
| Maximium Power | 850w | |
| Working Environment | Working temperature | -40℃~+55℃ |
| Working humidity | 5%~100% | |
| Physical specifications | Texture of material | The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the colour of which can be customized. |
| Dimension(W×D×H) | 2200*1050*140mm | |
| Remarks:optional network edition with information publishing system | ||
| Android | CPU | Allwinner A31S , Quad-Core,Dominant frequency 1.2GHz |
| Memory | 512M | |
| Internal Memory 4G | ||
| Monitor | Maxmium supported 1080P | |
| Operating System | Android 4.4.2 | |
| Web Support | Ethernet ,WiFi support,Wireless Peripherals Extended,3G(external) | |
| Video Player | Supports wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc. | |
| Picutre Format | Supports BMP,JPEG,PNG,GIF etc. | |
| USB2.0 interface | 2 USB HOST, 2 USB sockets | |
| Serial | 3 serial sockets including 2 common serial ports, 1 fully functional serial port | |
| Ethernet | 1, 10M/100M adaptive Ethernet | |
| SD card | TF card | |
| LVDS Output | 1, supports 50/60 hz direct drive LCD screen | |
| HDMI Output | 1,support 1080P output | |
| Audio and Video Output | Left and right sound channel output,built-in double 4R/20W,8R/10W amplifier | |
| RTC Real Time Clock | Support | |
| Time Switch | Support | |
| System Upgrade | Supports USB upgrade, supports network upgrade | |
| Linux | CPU | SIGMA chip SMP8653 |
| Memory | 256M | |
| Monitor | Maxmium supported 1080P | |
| Operating System | linux | |
| Web Support | Ethernet ,WiFi support,Wireless Peripherals Extended,3G(external) | |
| Video Player | AVI, MPG, MKV, MOV, WMV9, VOB | |
| Picutre Format | Supports BMP,JPEG,PNG,GIF etc. | |
| USB2.0 interface | 2 USB sockets | |
| Ethernet | 1, 10M/100M adaptive Ethernet | |
| LVDS Output | 1,50/60Hz direct drive LCD screen | |
| Time Switch | Support | |
