55inch 2500nits fan-cooling high brightness LCD digital display with double screen
| KWO55 | ||
| Item | Type | Specification |
| Panel | Panel Size | KW55 |
| Active Display Size | 55" | |
| Backlight | Direct LED | |
| Resolution | 1920(RGB)×1080(FHD) | |
| Brightness | 2500 cd/m2 | |
| Contrast Ratio | 4000 : 1 | |
| Response time | 6ms | |
| Viewing angle | Horizontal 178° and Vertical 178° | |
| Colors | 16.7M(8-bit) | |
| Transmissivity | 6.35% | |
| Show Direction | Longitudinal | |
| Service life | 50000hours | |
| Functional Characteristics | Video Input | USB×1,SD×1 |
| USB, SD supports video formats | support extended.avi,mpg,dat,rm/rmbv,wmv | |
| USB, SD supports audio formats | support extended.mp3 | |
| USB, SD supports image formats | support extend.jpg/jpeg,bmp,png | |
| USB, SD support audio formats | Support Extended.mp3 | |
| USB, SD support image formats | Support Extended.jpg/jpeg,bmp,png | |
| Audio Output | 2x5W (8ohm) | |
| Timing on-off | Free set Multi-period time | |
| Abnormal voltage protection | Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range. | |
| Intelligent temperature control system | Intelligent temperature control function can automaticlly control the working situation of cooling fan according to envirionment, to ensure that products can work in environment of high temperature. | |
| Power Supply | Intelligent optical sensor | With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment. |
| Outdoor grade | IP55,sunlight readable , no blacking | |
| Maximium Power | 600W | |
| Working Environment | Working temperature | -40℃~+50℃ |
| Working humidity | 5%~100% | |
| Physical specifications | Texture of material | The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the colour of which can be customized. |
| Dimension(W×D×H) | 2000*880*130mm | |
| Remarks:optional network edition with information publishing system | ||
| Android | CPU | Allwinner A31S , Quad-Core,Dominant frequency 1.2GHz |
| Memory | 512M | |
| Internal Memory 4G | ||
| Monitor | Maxmium supported 1080P | |
| Operating System | Android 4.4.2 | |
| Web Support | Ethernet ,WiFi support,Wireless Peripherals Extended,3G(external) | |
| Video Player | Supports wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc. | |
| Picutre Format | Supports BMP,JPEG,PNG,GIF etc. | |
| USB2.0 interface | 2 USB HOST, 2 USB sockets | |
| Serial | 3 serial sockets including 2 common serial ports, 1 fully functional serial port | |
| Ethernet | 1, 10M/100M adaptive Ethernet | |
| SD card | TF card | |
| LVDS Output | 1, supports 50/60 hz direct drive LCD screen | |
| HDMI Output | 1,support 1080P output | |
| Audio and Video Output | Left and right sound channel output,built-in double 4R/20W,8R/10W amplifier | |
| RTC Real Time Clock | Support | |
| Time Switch | Support | |
| System Upgrade | Supports USB upgrade, supports network upgrade | |
| Linux | CPU | SIGMA chip SMP8653 |
| Memory | 256M | |
| Monitor | Maxmium supported 1080P | |
| Operating System | linux | |
| Web Support | Ethernet ,WiFi support,Wireless Peripherals Extended,3G(external) | |
| Video Player | AVI, MPG, MKV, MOV, WMV9, VOB | |
| Picutre Format | Supports BMP,JPEG,PNG,GIF etc. | |
| USB2.0 interface | 2 USB sockets | |
| Ethernet | 1, 10M/100M adaptive Ethernet | |
| LVDS Output | 1,50/60Hz direct drive LCD screen | |
| Time Switch | Support | |
Meet and surpass environment test standard of heat resistance
Unique patent, Ultra thin, the whole machine width is only 14cm.
Use module invented by Keewin, optimize fan cooling system.
Work 8hours under sunshine 1200wm2,50℃ temperature.
Accept custom made to choose 1000cd/m2 to 5000 cd/m2
Unique structural design
Waterproof, dustproof, anti-theft
Anticorrosion more than seven years
The modular design for Easy installation and maintenance
Shatterproof glass with anti-explosion, antireflection and high
Thickness with 14cm
Our thickness has reached the peak with best performance, in same industry.

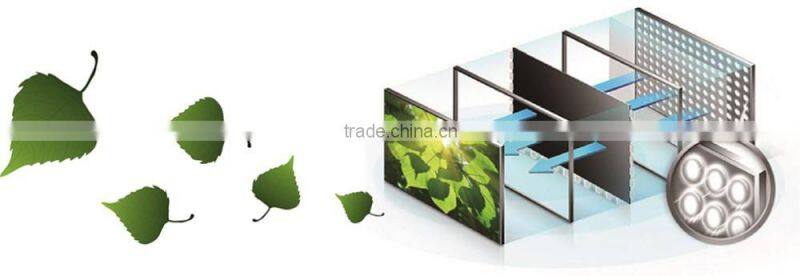

Optical system design
High brightness 1000-5000 cd/m²
Direct LED backlit and Low power consumption
Lux Auto Brightness
Leading short wide-angle LED in the world
high luminous efficiency
Sustainable Advantage
- High brightness module invented by Keewin, which can dissipate heat by itself.
- lKeewin module owns advantages which optoelectronic conversion efficiency is high, input power is lower and output brightness is high, so produce low heat.
- Realize auto adjusting on turning on fan and brightness, so the energy consumption is low.
-
The inner of the machine and module realize intelligent temperature control, so when environment temperature is too cool, they are preheated, to the contrary, when it is too hot, they will be turned offer for protection
