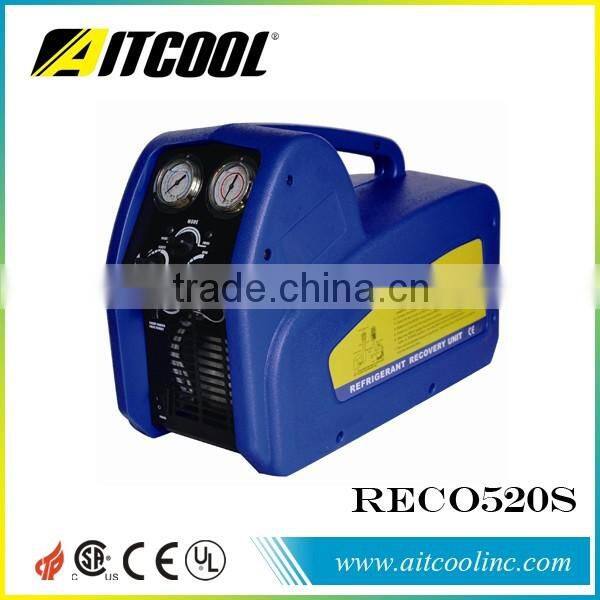

Refrigerant and Recycling Recovery Machine With Oil Separator 1HP RECO520S

FOB Price

US$ 300 - 400 / Piece

24 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Compressor	Place of Origin	Zhejiang, China
Brand Name	Aitcool	Model Number	RECO520S
Certification	CE, UL

Product Description

Refrigerant and recycling recovery machine with oil separator 1HP RECO520S

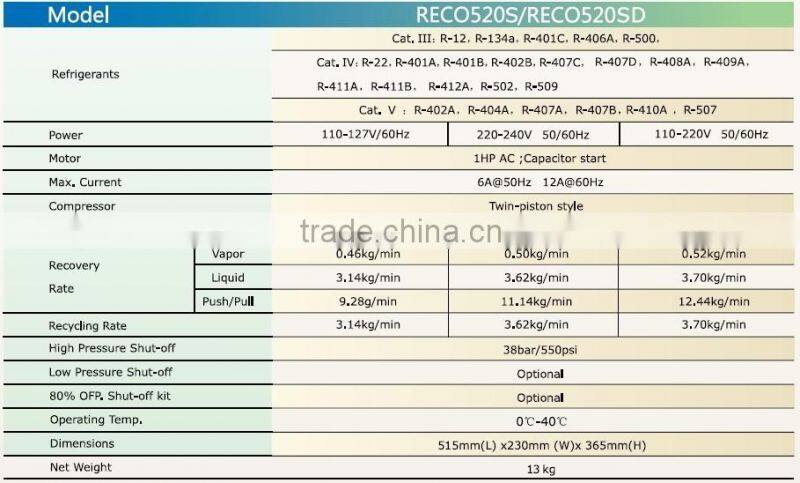

Model

RECO520S

Refrigerants

Cat.Ⅲ:R-12,R-134a,R-401C,R-406A,R-500

Cat.IV:R-22,R-401A,R-401B,R-402B,R-407C, R-407D,R-408A,R-409A,R-411A,R-411B,R-412A,R-502,R-509

Cat.V:R-402A,R-404A,R-407A,R-407B,R-410A, R-507

Power

110-127V/60Hz 220-240V 50/60Hz 110-220V 50/60Hz

Motor

1HP AC;Capacitor start

Max.Current

6A@50Hz 12A@60Hz

Compressor

Twin-piston style

Refrigerant Recovery Rate

Cat.Ⅲ Cat.IV Cat.V

Vapor

0.46kg/min 0.50kg/min 0.52kg/min

Liquid

3.14kg/min 3.62kg/min 3.70kg/min

Push/Pull

9.28kg/min 11.14kg/min 12.44kg/min

Recycling Rate

3.14kg/min 3.62kg/min 3.70kg/min

High Pressure Shut-off

38bar/550psi

Low Pressure Shut-off

Optional

80%O.F.P.Shut-off kit

Optional

Operating Temp.

0 °C-40°C

Dimensions

485mm(L)x220mm(W)x365mm(H)

Net Weight

15kg

1. Recover all commonly used refrigerants (CFC,HFC, HCFC), including R410A.

2. 1/2HP&1HP, oil-less compressor recovers both vapor and liquid refrigerant quickly.

3. Heavy duty industrial grade condenser and cooling fan.

4. High pressure safety of Shut-off switch.

5. Filter/ Drier removes both moisture and acid from the refrigerant.

6. Ergonomic and compact design makes it easy to carry and use.

7. Design for residential, commercial and automotive A/C system.

8. Optional 80% capacity shut off kit to prevent from overfilling the storage tank.

9. Suitable for all the main voltage standard in the world.

10. China patent, Dual voltage refrigerant recovery, RECO-D SERIES.

11. Oil separator device for recycling refrigerant, RECO-S SERIES.
