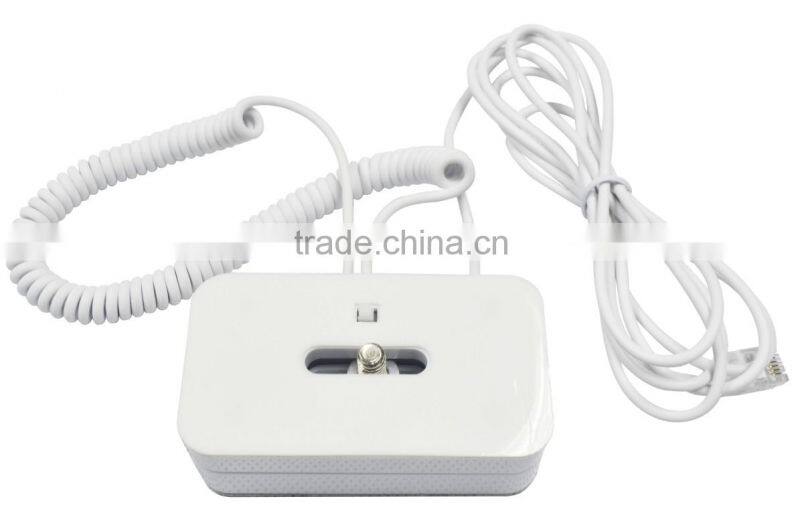

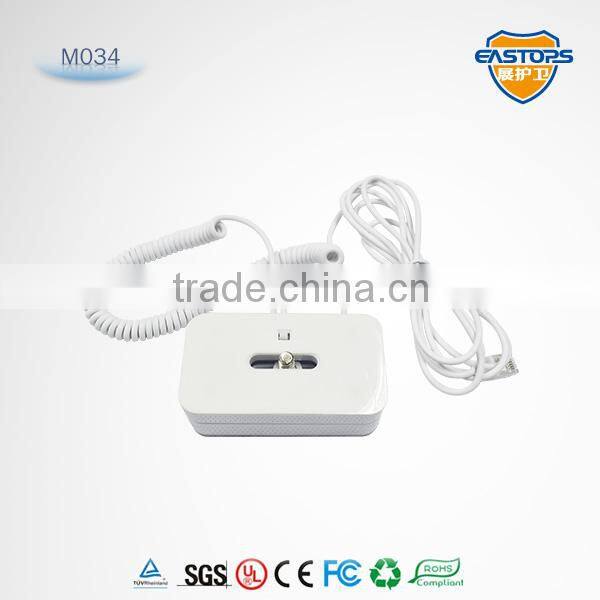

M034 Dslr Security Display Stand With Multi-port Security Alarm

Specifications

M034 dslr security display stand with multi-port security alarm Product Name: 8-Port Alarm Controller

Model Number: DFS-DSS-M019

Specification:

Working Temperature: -10°C-85°C

Input: AC110V~240V  50~60Hz

Output: 5.0V    800mA

Maximum Power Consumption: 0.38W

N.W. 530.0G

Main Functions

 1. Consumers-experiential Display

 2. Anti-shoplifting

 3. Charging for Displayed Merchandise

 Accessories:

 1. One set of Alarm host

 2. Power Adapter (Customized)

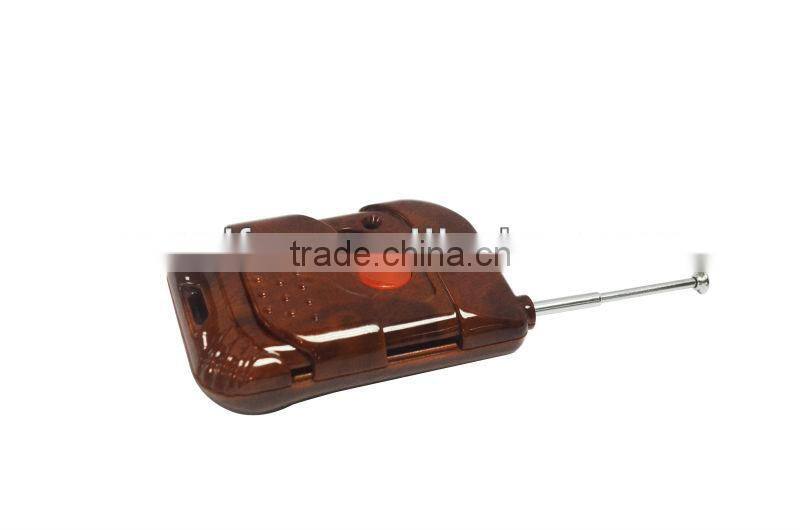

 3. Remote Controller

 4. Instruction Manual

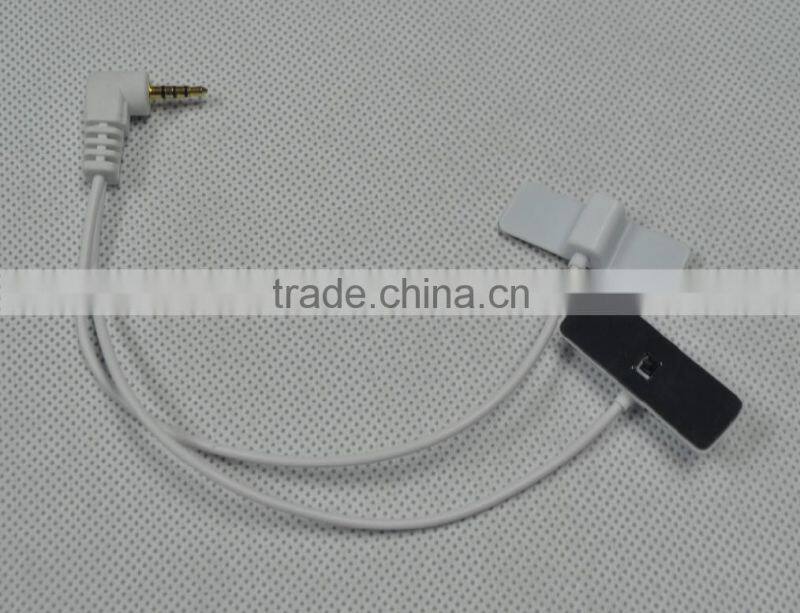

 5. Sensor cable

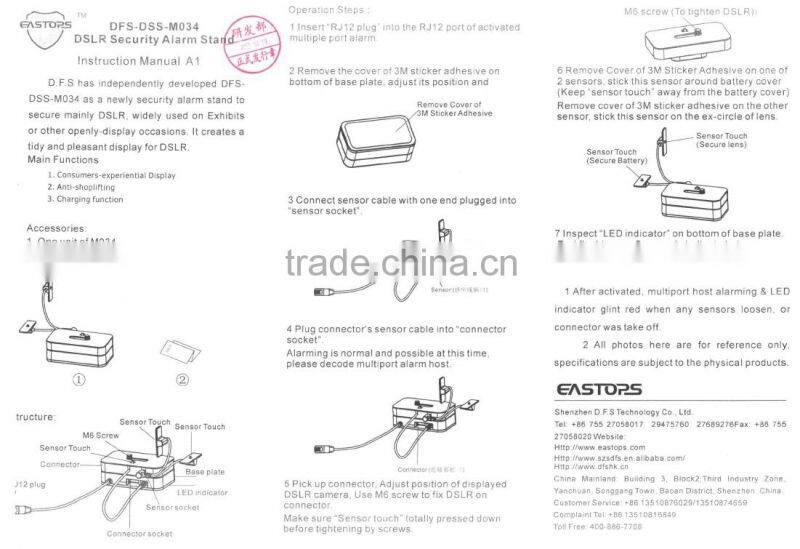

Operation Guide:

1. Charge for the host with power adapter connected.

One end of power adapter plunging into DC Power Charge Port, the other end of power adapter plunging into power socket.

2. Turn on power switch by pressing “red button” on back of host.

3. Press Reset button and within 3 seconds press on remote controller.

  “D...D” sound indicates remote controller matches code successfully.

    Note:Keep pressing button on remote controller for 2 seconds.

4. Plug USB end of sensor cable into cell phone.

   Tear off 3M sticker adhesive on small touch sensor.

   Pull straight and stick small touch sensor on back of cell phone (Keep pressing for 10 seconds).

5. RJ12 of sensor cable plugged into port of host. “D” sound indicates being activated.

1. Clearing code function is beneficial when remote controller is lost, this function prevents remote controller from being used by others.

2. Match code with the one which lost its remote controller by using 3 remote controllers,  then codes being matched before are cleared.

3. One remote controller can clear all codes by matching 3 codes (3 times).

4. Please connect power adapter to charge for host when displayed commodities need to be charged.

5. Maximum number of remote controllers which can be used to matched code for one host is 3. Any one of these 3 remote controllers can cancel alarming of this host.

you can find us by key words:

canon camera stand, professional camera stand,anti-theft camera stand, anti-theft security camera stand, camara security camera stand, camera display stand security, camera display stand, camera display stand security, camera display holder

digital camera display stand, camera display solution, security camera display stand, slr camera display, camera display stand with alarm, 3g gsm video camera security alarm, camera secure display holders, camera security display, security stand ipad,iphone security stand,tablet pc security stand,security standalone,laptop security stand,mini laptop tablet pc security stand,dummy phone security stand,cheap security stand,security stand for digital camera,tablet security stand for ipad

security stand for mobile phone,charging security stand holder,camera security stand,tablet security stand,iphone alarm,security stand,security stand for phone,mobilephone display security stand,pc alarm security stand,retail security stand

cell phone security stand,alarm phone security stand,blackberry cell phone security stand

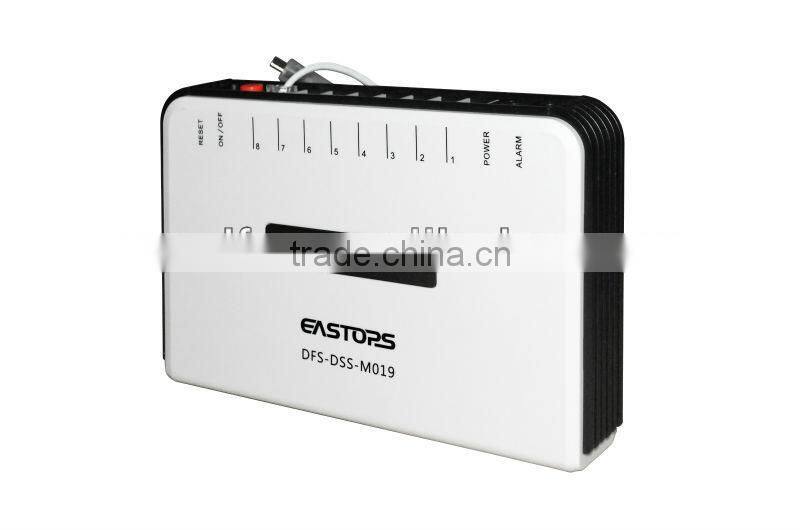

Eastops DFS-DSS-M019 multiple port alarm controller:

Remote Control:
