Certified High Capacity Filling Machine ZXJ-380+HFM-2000

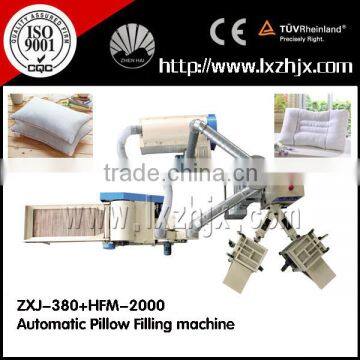

ZXJ-380+HFM-2000 Automatic pillow filling machine

Specifications:
1) Capacity: 120kg/h
2) Error in fixing quantity:±25g
3) Pressure: 380V ,three phases,50HZ
4) Total power: 22.75kw
5)Packing size: One set will be packed into 3 cases(L×W×H)
2250× 1590× 1600mm(opening machine)
G.W:1160kg N.W:1000kg
2230× 1590× 2150mm(filling machine)
G.W:800kg N.W:650kg
2250× 1380× 1300mm(ball fiber machine)
G.W:800kg N.W:620kg

6) working video link :  /v_show/id_XNDg3NDkyMTA0.html

ZXJ-380 Automatic pillow filling machine

Specifications:
1) Capacity: 120kg/h
2) Error in fixing quantity:±25g
3) Pressure: 380V ,three phases,50HZ
4) Total power: 13kw
5)Packing size: One set will be packed into 2 cases(L×W×H)
2250× 1590× 1600mm(opening machine)
G.W:1160kg N.W:1000kg
2230× 1590× 2150mm(filling machine)
G.W:800kg N.W:650kg
6)working video link:  /v_show/id_XNjI3NTA3ODQw.html

ZXJ-88 Automatic weighting pillow filling machine

Usages:

1.Fiber carding,accurate weighing and high speed filling.
2.Having the most advanced weighing system,the operator can set the filling weight with controller,fully automatic and accurate.The handling weight:150g-800g.
3.More safety:the fiber carding machine has metal detector and overloading alarm system to avoid the machine being damaged.
4.Two heads filling machine with patting devices ensure the high speed and top-quality filling.

Specifications:
1.Capacity:120kg/h
2.Accuracy:±10-20g
3.Pressure:380V,three phases
4.Total power:14.5kw
5.Packing size:(L×W×H)
2650×1600×1900mm,G.W:1800kg; N.W:1500kg
2100×1420×2300mm,G.W:800kg; N.W:600kg
2250×1600×2150mm,G.W:1000kg; N.W:800kg

6. working video link:  /v_show/id_XNDY5OTYzMzA4.html

HFC-700 Pillow filling machine

Usages:

Mainly used for opeing fiber material then fill pillow and cushion,etc. Characteristics: easy and safety use, even and plump filling, continuous work,filling quantity can be adjusted according to request, with converter plant.

Specifications:
Power supplier: 380V,three phases, 6.5KW
Capacity: 50-60kg/h
Weight error: less than 100g for each pillow
M/C dimension: (L×W×H)5890×2850×900mm
Packing size: (L×W×H)2200×1300×2000mm
G.W:800KG
N.W:650KG

working video link:  /v_show/id_XNzE4Nzk0NTUy.html ,  /v_show/id_XOTI2MTMyMjMy.html

1, wooden case/polywood case

2, plastic foam packing

3, nude packing

1,  Engineers available for overseas service according to request.

2,  Any machine from our factory has one year guarantee.

3,  24-hour technical support via email,telephone,skype,whatsapp,TM etc.

4,  manual book in English version with details.

Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.

We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.

Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America,and the Occident. Our brand has become a famous trademark in textile machinery like nonwoven industry field.

We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines . We are sincerely looking forward to cooperating with all customers.

1,How to contact you?

You could contact us via TM,wechat, QQ, email or call us directly.

2,Are you factory or trading company?

We are factory with foreign trading property. That is to say,we produce machines and we export to customers by ourself.

3,How many countries have your products been exported to?

Until now our machines have been already exported to more than 100 countries.Welcome to visit us.

4,Which payment term is accepted?

30% in advanced payment by T.T and 70% paid before shipment by T.T.

Welcome for your inspection for the machines before shipment.

5,Can you make speicial voltage of the machines?

yes,usually the machines are made with 380v,50hz,3 phases or 220v,50hz,single phases.If you need special, please inform us and we customize.
