Automatic Waste Tyre/scrap Plastic Pyrolysis Plant to Oil
US$ 250,000 - 1,200,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YIBO
Model Number:
GW 20T
Payment & Shipping
Payment Methods:
Port of Shipment:
china port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waste Engine Oil Refine MachineUS$ 150,000 - 600,000MOQ: 1 Set -
Hot Selling Best Automatic Continuous Scrap Tire/ Plastic/medical Waste Pyrolysis PlantUS$ 150,000 - 280,000MOQ: 1 Unit
-
Full Continuous Scrap Tire/plastic Pyrolysis PlantUS$ 150,000 - 280,000MOQ: 1 Unit
-
Advanced Technology Continuous Scrap Plastic Pyrolysis PlantUS$ 250,000 - 1,200,000MOQ: 1 Unit
-
Hot Sales Best Continuous Waste Plastic Pyrolysis MachineUS$ 250,000 - 1,200,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
YIBO
Model Number
GW 20T
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product Details
Layers Puzzle Type Parking Equipment
2 layers puzzle type are very popular in China, it makes your parking spaces quantity much more than it was with low cost and short installation time.
With the lifting and sliding movements of pallets, the cars could be parked and retrieved. The driver only needs to swipe a card or push the buttons at operational box, the retrieving process will be applied automatically.
There are 4 chains to hang a pallet, also there are anti-fall devices to prevent falling down of cars.
There are sensors to detect car or people that go inside equipment area when parking equipment is running.
Product Introduction
Brief Descriptions of the Industrial Continuous Scrap Tire Pyrolysis Production Line (GW 20T)
The Industrial Continuous Scrap Tire Pyrolysis Production Line(GW 20T) is a new series researched and developed by our company according to customers’ requirement，which is based on our company’s independent intellectual property of the Full Automatic Industrial Continuous Scrap Tire Pyrolysis Production Line(EEGW 15T). The GW 20Tproduction line all-around absorbs GW 10T production line’s safety, environmental protection and efficiency characters, adopting controllable mixed hot wind and heating recycling system. Fast start-up, stable working performance, thus greatly reduced running cost and customers’ investment cost.
The Industrial Continuous Scrap Tire Pyrolysis Production Line utilizes advanced technique technology, which split scrap tire into liquid fuel oil, carbon black and little incondensable gas. It adopts reasonable technology and equipment design, while the procession were taken in a whole obturation reactor and thus eliminating the environment pollution, realizing energy recycling and achieving admirable environmental, social and economic benefit.
The whole production line can be divided into six sections:
1.Fixed temperature heating system;
2.Continuous pyrolysis system;
3.Carbon black production system;
4.Exhaust scrubbing system;
5.Gas purification system;
6.Control system.
The working process of the Industrial Continuous Scrap Tire Pyrolysis Production Line is: The scrap tire, will be shredded into suitable tire chips for pyrolysis reaction (＜50×50mm), and then the tire chips will be constantly conveyed to pyrolysis reactor with low temperature sulfur removal catalyst via the feeder extruder to carry through a normal pressure low temperature pyrolysis reaction. After being fractionated and cooled by the oil separator, will create fuel oil and little combustible gas. The combustible gas will be recycled to pyrolysis heating system once it has been passed through the exhaust scrubbing system. Meanwhile, the hot wind provides heating for the pyrolysis reactor, which via hot wind recycling system returns to the pyrolysis reactor for the recycling use thus can greatly economize energy consumption and reduce the equipment’s running cost.
After magnetic separation, the solid pyrolysis outcome–raw carbon black will be automatically sent to the carbon black production system and after processions such as grinding，chelating , reduction and packaging, the refined procession for carbon black will be completed.
Gases that produced in the heat supply system will be discharged at the required standard after the gas clarification system.
The Industrial Continuous Scrap Tire Pyrolysis Production Line has the following characters:
1. The advanced fixed temperature heating system and gas heating recycling system not only realizes dynamic heat supplying, heat suffering, equal pyrolysis material heat suffering, temperature adjustment and controllable but also achieves gas heating recycling, high thermal efficiency, energy saving and reducing running cost.
2. The advanced low temperature catalyzing pyrolysis technique which utilizes low temperature sulfur removal catalyst helps a thorough material pyrolysis at a low temperature. High oil yield rate(45-50%）, low gas yield rate (2-4%）,the colloid and bitumen contents in oil product is low and the quality of them are superior. The low pyrolysis temperature allows no coke inside the equipment and high quality carbon black outcome.
3. Since the pyrolysis temperature is far less than the operation temperature of the equipment itself and the heat suffering is equal, safety performance and equipment lifespan are greatly enhanced.
4. Industrial continuous production, the equipment performance is stable and high working efficiency.
5. The exhaust can be fully recycled to the heating system after multilevel scrubbing processions.
6. Temperature and wind amount of the gas clarification system can be automatically adjusted and controlled. The gas absorbent has strong adsorb ability and other characters such as high absorption speed, high separation speed, easily regenerated and the ability of eliminating all the contaminants in the gas, such as H2S、CL2、CO、CO2、SO2、SO3、NOX、CS2、NH3、oil and other organic compounds and solid particulates. Therefore the emission parameters will meet the emission standard of any developed industrial country.
The Industrial Continuous Scrap Tire Pyrolysis Production Line with characters of continuous production, high working efficiency, excellent safety performance, environmental protection performance, social benefit and economic benefit, thus can be widely applied in the industrial production.
Product Parameters

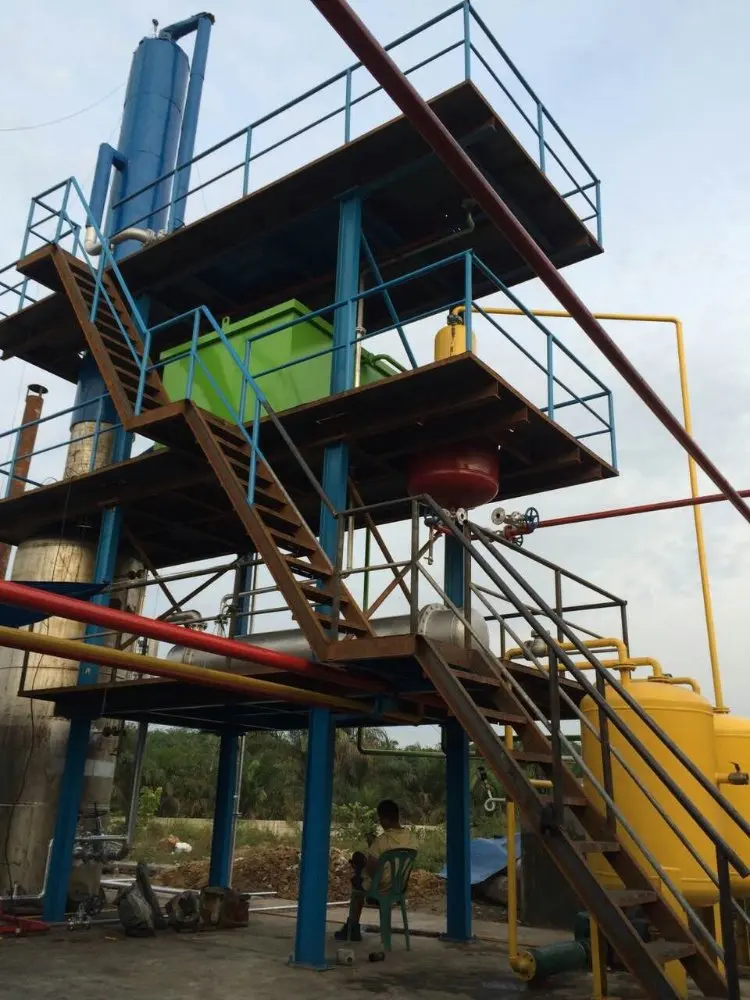

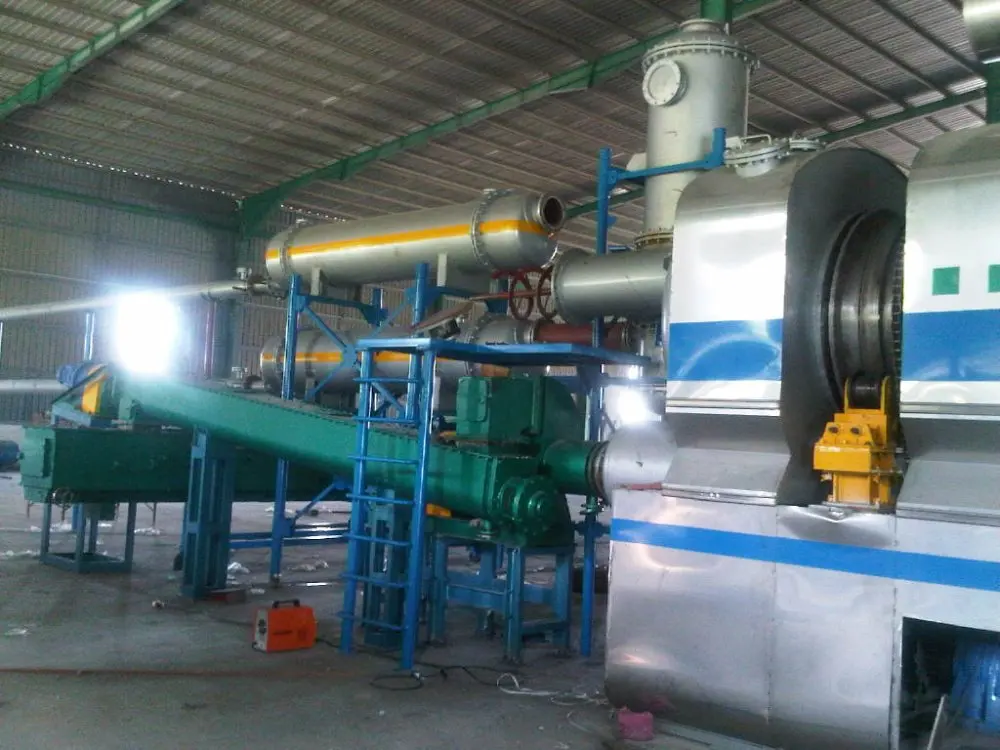

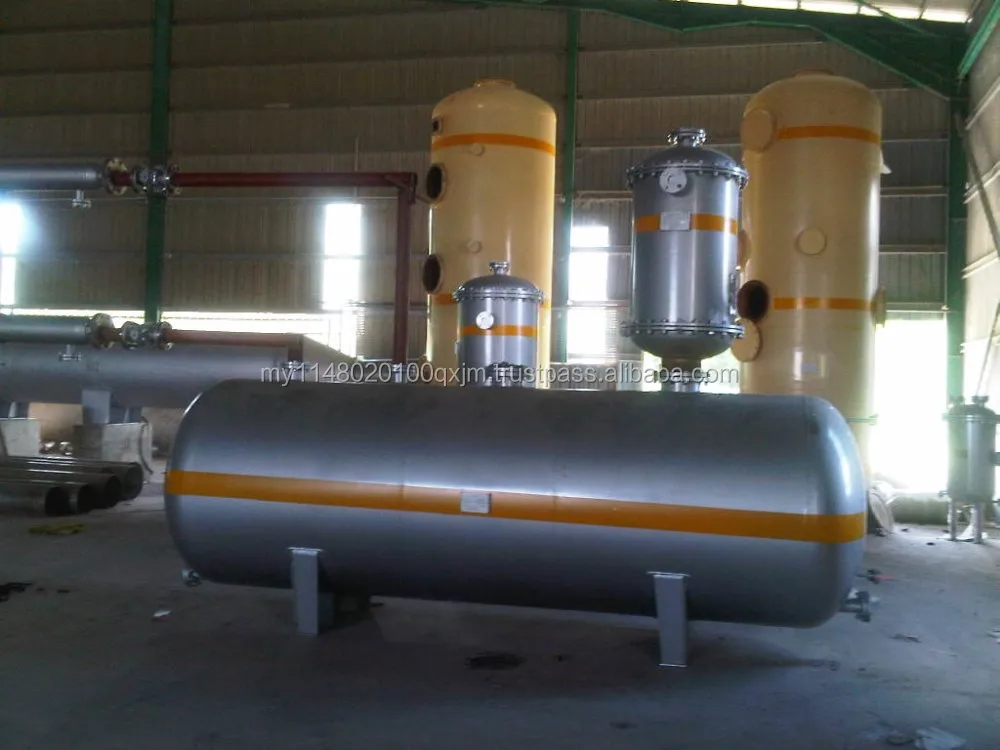

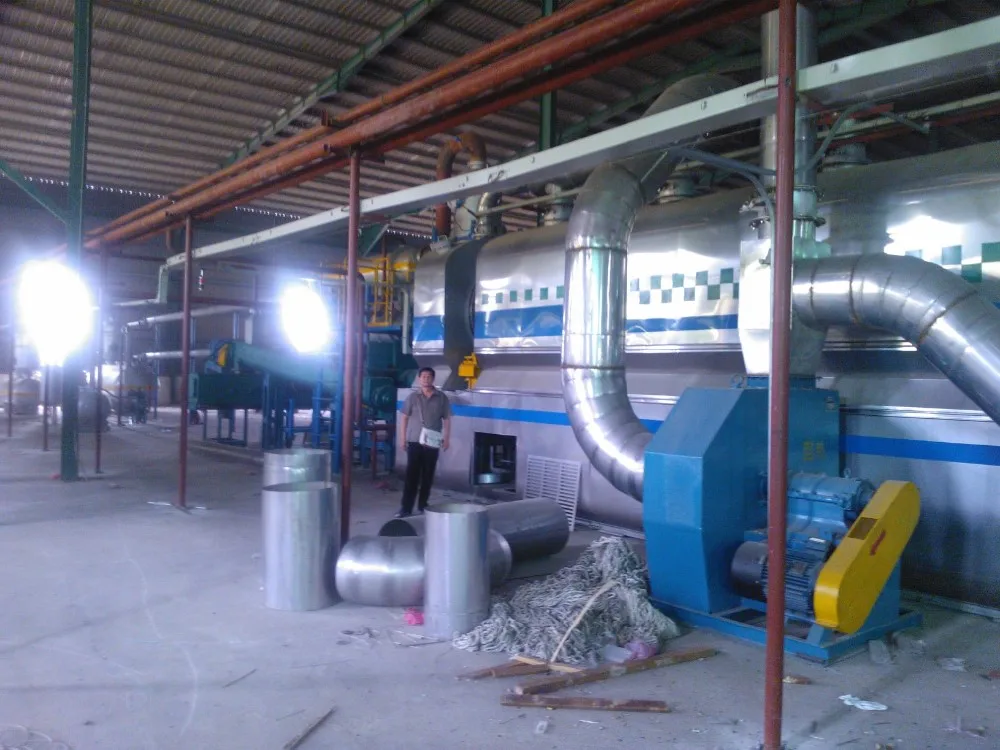

Product Details Show
Why Choose Us
About us
1, the company professional to manufacturing continuous process pyrolysis machine covert waste tire to diesel fuel and carbon black
Equipment & technology
2, the quality of diesel fuel is biggest supplier industry
Service
3, stable product quality , supply, the good faith management
Product Processing

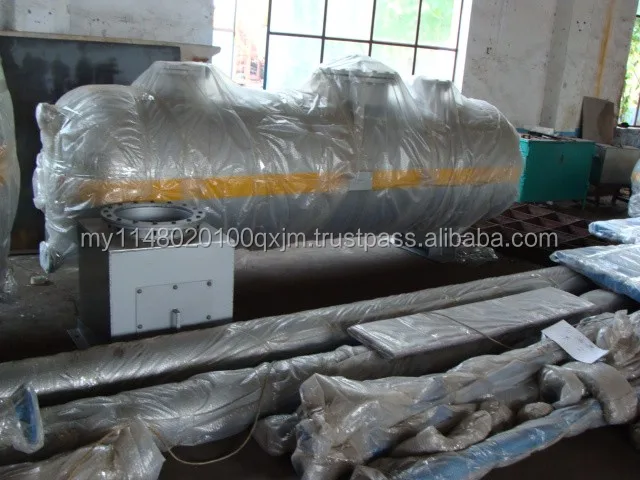

Product Packing
Main Products
Continuous Scrap Tire /plastic /medical waste production line CAPACITY 10 TONS TO 20 TONS PER DAY
Mid. Order: one set , more cheaper FOB Price: US $280,000 to 1200000
Continuous refine pyrolysis oil/waste lubricating oil/sludge oil to diesel distillation plant 10 tons to 20 tons capacity per day
Mid. Order: one set, more cheaper FOB Price: US $120000 to 220000

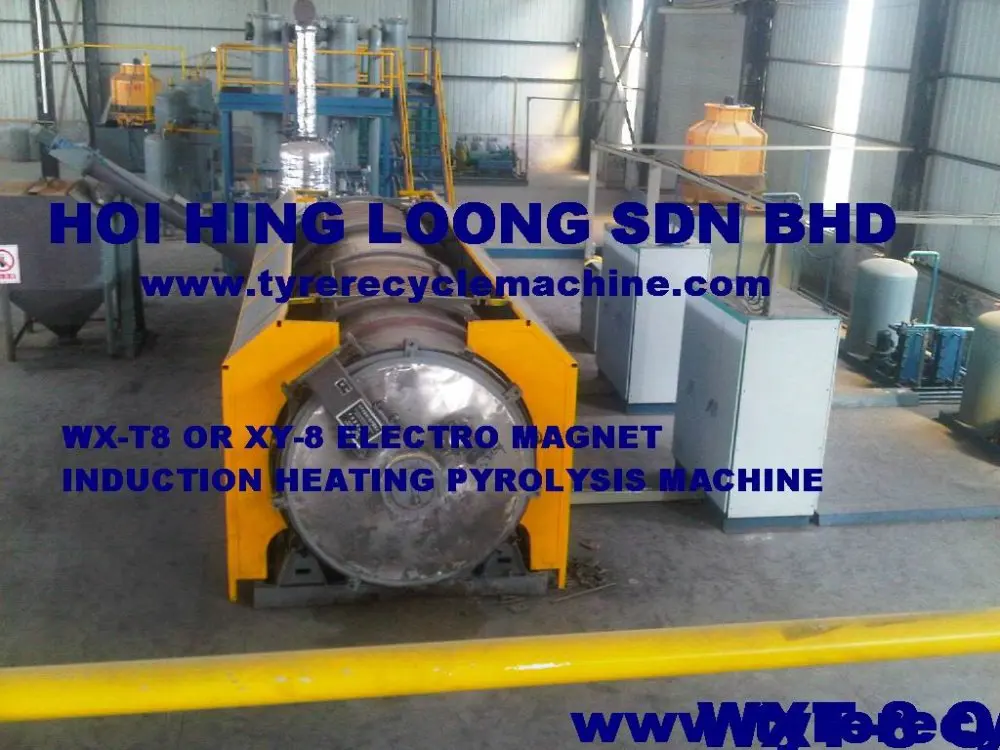

induction heating scrap tire /plastic medical waste pyrolysis machine capacity 6 tons to 10 tons capacity
Mid. Order: one set , more cheaper FOB Price: US $220000 to 280000
batch scrap tire/plastic /medical waste pyrolysis machine capacity 6 tons to 12 tons per day
Mid. Order: one set more quatities, more cheaper FOB Price: US $ 45000 to 65000
semi continuous scrap tire/plastic /medical waste pyrolysis production line capacity 8tons to 12tons
Mid. Order: one set more quatities, more cheaper FOB Price: US $80000 to 110000
induction heating scrap tire/plastic/medical waste pyrolysis production line 8tons to 12 tons capacity
Mid. Order: one set more quatities, more cheaper FOB Price: US $ 250000 to 350000
