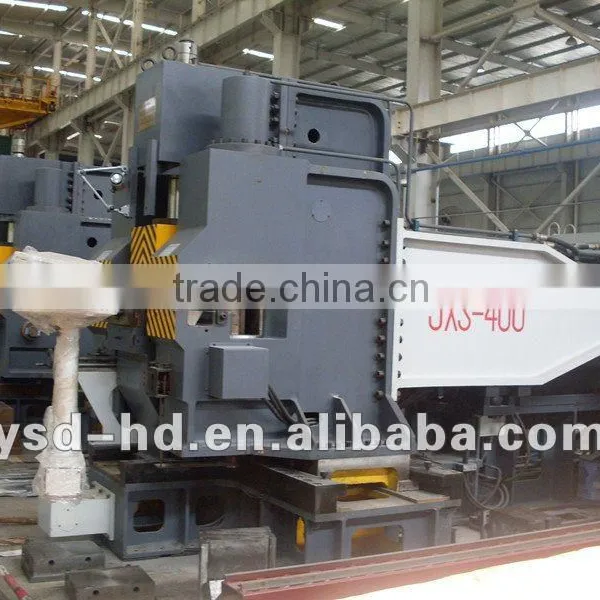

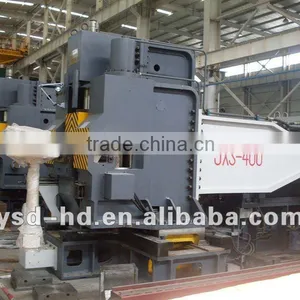

YSD CNC Ship Frame Bending Machine

Name: YSD CNC Ship Frame Bending Machine
Brand: YSD,LVD-HD
SKU: 134475085

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

YSD,LVD-HD

Model Number:

JXS-100

(YSD) Hubei Tri-Ring Metalforming Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name YSD,LVD-HD

Model Number JXS-100

Machine Type Beading Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Cnc

Automation Other

Certification ISO 9001:2000

Specifications

Used in more than 30 shipyards, including shipyards in Korea and Vietnam
The latest frame bending machine with Chinese patents

Name		Unit	Technical specification
Name		Unit	JXS-100	JXS-160	JXS-300	JXS-400	JXS-600	JXS-700	JXS-800
Horizontal bending cylinder	Max.push,pull	kN	1000	1600	3000	4000	6000	7000	8000
	Stroke	mm	±175	±180	±270	±280	±350	±400	±450
	ing speed	mm/s	11				15
	Pressure of oil circuit system	MPa	22				25
Clamping cylinder	Max.force in the middle of clamping	kN	350	500	700	1000	1300	1200	1500
	Max.force in side clamping	kN	200	250	350	600	800	700	1000
	Pressure of oil circuit system	MPa	22				25
Movement range of bending pivot		mm	650~1050	800~1200	1000~1400	1200~1700	1600~2200	1800~2500	1900~2600
Max.stroke of vertical pre-bending device for eliminate “side bending”		mm	±20	±20	±20	±25	±35
Feeding device	Max.speed	mm/s	100	100	100	120	150
	Max.distance of single feeding	mm	400	400	400	500	600	700	700
	Max.pull of feeding cylinder	kN	126	126	246	246	407	450	500
	Pressure of auxiliary oil circuit system	MPa	16
The range of machining	Material yield strength	N/mm²	345(Note:Material for ship building)
	Bulb steel	mm	70~200	90~270	120~340	160~430	220~650	270~800	340~950
	Unequal angle steel(Max)	mm	180	250	350	450	650	800	900
	T type steel(Max)	mm	200	-	350	450	700	800	1000
	Flat bar(Max)	mm	-	-	300×40	400×40	600×40	800×40	900×40
Forming function of section bar		Exterior bend,interior bend,S type bend,straighten,leveling
Part min.bending radius(height of web plate)		mm	10×h,but Minimum 800	10×h,but Minimum 1000	10×h,but Minimum 1400	10×h,but Minimum 1800	10×h,but Minimum 2400	10×h,but Minimum 3000	10×h,but Minimum 3200
