HPC-150A C-Frame Mechanical Punch Press, Eccentric Punching Machine 150 Ton

Specifications

Features:

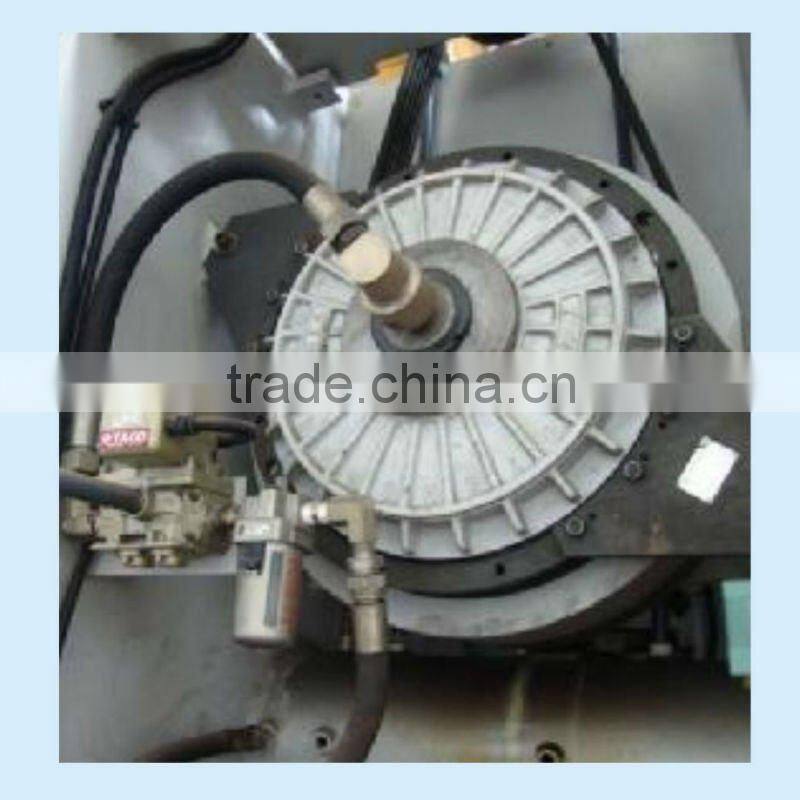

1,Adopt the steel welded frame with high rigidity which is the most popular style in the world, stable accuracy and nice out looking. 2,Adopt import high sensitive combined clutch, ensure the ram working accurately, lower noise, easy for maintain, long life working.

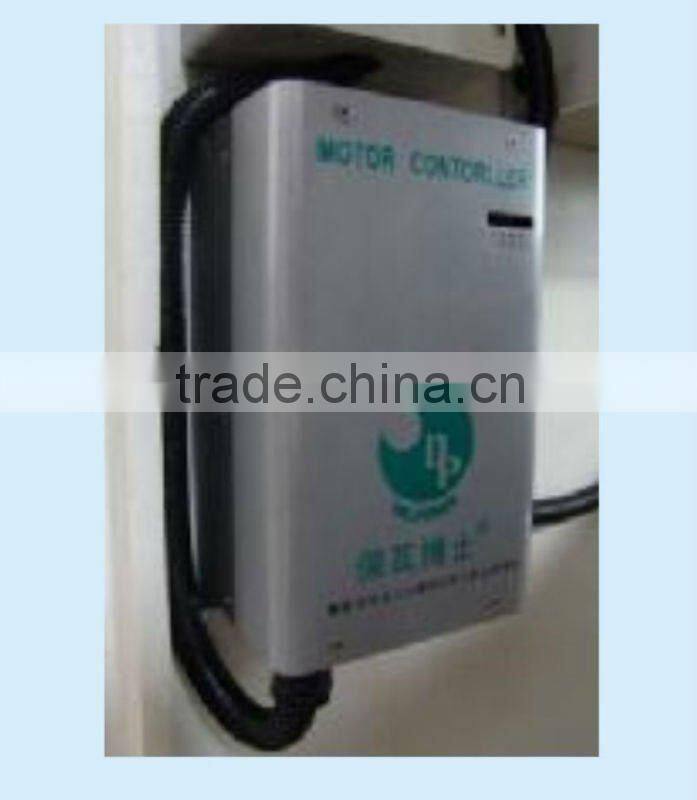

3,Adopt intelligent motor electricity economizer device for save power and soft start up function.

4,Adopt import hydraulic overload safety mechanism, could emergency stop machine during over load working pressure. It is more safety for the operator and machine, and auto re-set once the over load released.

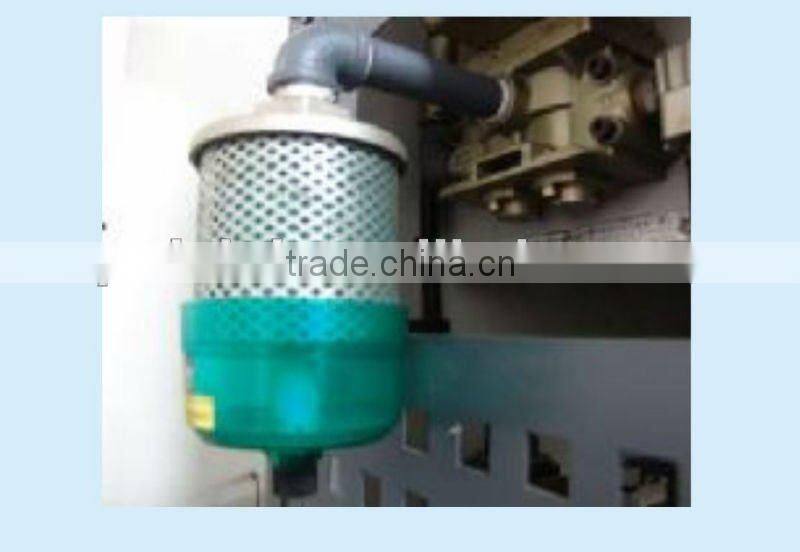

5,Adopt press environment protect technology, combined safety valve and air muffler together, ensure lower noise, reclaim the exhaust oil completely, better for working conditions.

6,Ram is square six side guide rail, high rigidity and precision, air ressure balance device is better to control the ram working precision.

7,Crank, transmission shaft, gear, guide rail have heat treatmentmachining, it is long life working and wearable placidity.

8,Adopt Japanese PLC, cam controller, bearing, and others high quality seals, electrical components, ensure the reliability on the whole of machine.

9,Manual and electrical lubricate hydraulic system, could auto lubricate and warning system.

10,The optional device for this machine is air cushioning, laser safe, and aside feeding system, could get single machine robotization.

Standard Accessories:
1.Hydraulic Overload Protector
2.Intelligent Motor Electricity Economizer
3.Manual Grease Lubrication
4.Handle Slide Adjustment Device(nuder HCP-60A)
5.Electrical Slide Adjustment Device(over HCP-80A)
6.Die Height Indicator(under HCP-60A)
7.Electrical Die Height Indicator(over HCP-80A)
8.Counter Balance
9.Rotary Cam Limit Switch R-10
10.Crank Angle Indicator
11.Preadjustment Counter
12.Air Source Socket
13.Pneumatic Feeding Device
14.Overrun Safeguard
15.Liftout Device On Slide Block
Optional Accessories:
1.Die Cushion
2.Motorized Grease Lubrication System
3.Eddy Current V.S Motor
4.Photoelectric Safely Device
5.Lights For Tooling Area
6.Footswitch Operation
7.Magnetic Stroke Counter
8.Error Feeding Detector
9.Quick Die Change System
10.Power Socket
11.Anti-vibration Rubber Pads
