China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill

China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-1
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-2
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-3
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-4
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-5
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill thumbnail-6
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-1
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-2
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-3
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-4
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-5
China Factory Price Reliable Quality Airtight Rotary Valve for Flour Mill photo-6
US$ 100 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Hubei Tianyi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure Low Pressure
Power Other, motorized
Material Other, carbon steel
Temperature of Media High Temperature
Media Other, bulk material
Port Size Standard
Place of Origin Hubei, China
Model Number TY-TX
Brand Name TIANYI
Application Other, Industrial fields
Product Name

China factory price reliable quality airtight rotary valve for flour mill

Product Description

China factory price reliable quality airtight rotary valve for flour mill

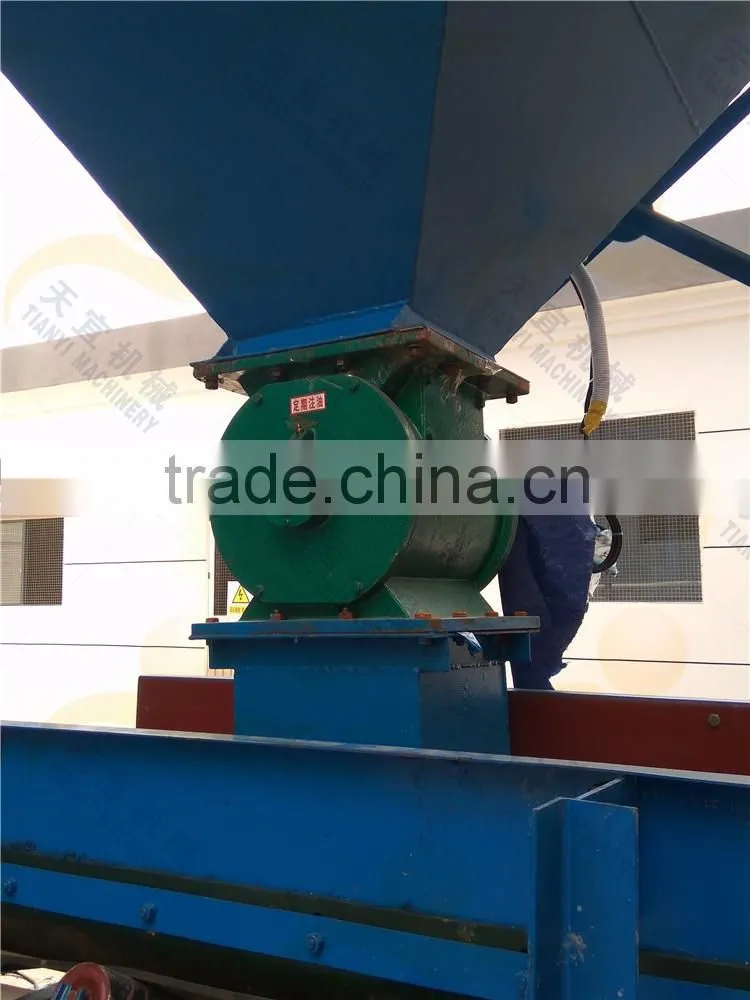

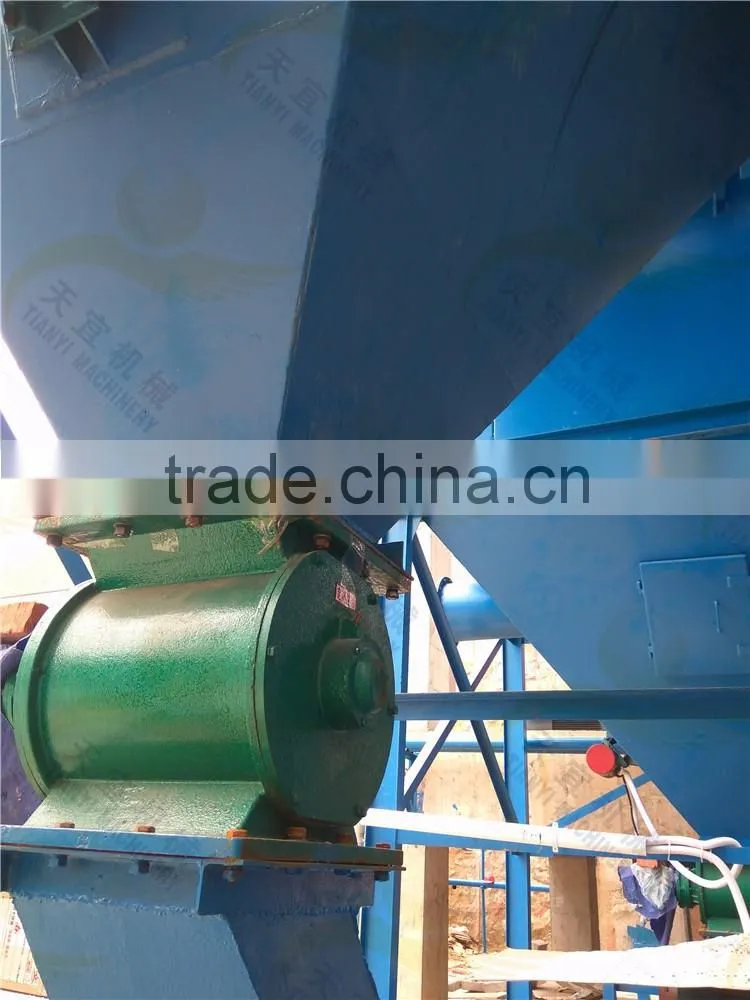

Rotary airlock valve is widely used in cement building materials, chemicals, metallurgy and light industry and other industries, generally installed in the hopper bottom, as the feeding equipment.

Model
Capacity
(m3/h)
Rotor speed
(r/m)
Inlet Size
(mm)
Reducer model
Reducer Power
Reducer speed
Ø200x200
7
34
200x200
BLY18-43
1.1
34
Ø200x300
10
34
200X300
BLY18-43
1.1
34
Ø300x300
23
34
300X300
BLY18-43
1.1
34
Ø300x400
31
34
300X400
BLY18-43
1.5
34
Ø400x400
53
34
400X400
BLY22-43
3
34
Ø400x500
67
34
400X500
BLY22-43
3
34
Ø500x500
106
34
500X500
BLY22-43
4
34

Main Features

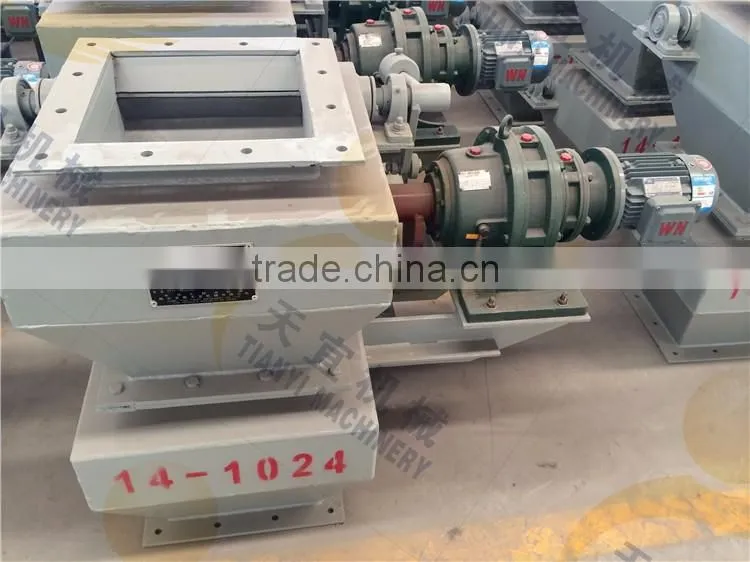

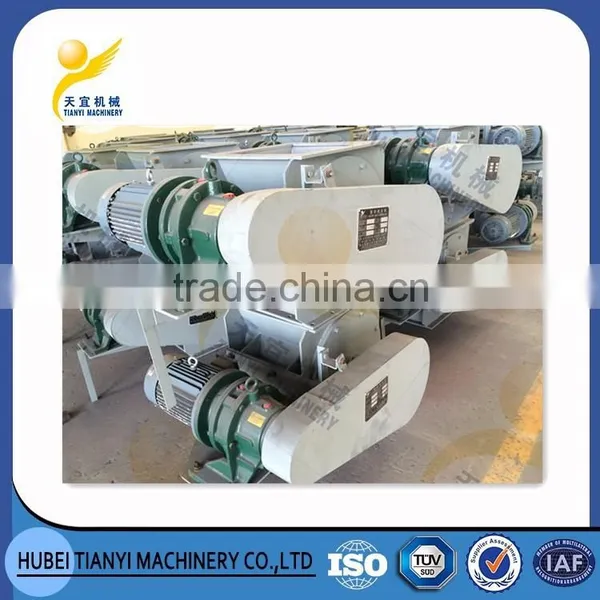

1) Drive parts consists of the planetary cycloid pin wheel reducer, large and small sprocket, drive chain, sprocket guard cover and other components, it is the power part to the star feeder.
2)Impeller has six blades, body cavity will be evenly divided into six fan-shaped cavity grid by blade. When it works, the drive part make the wheel rotate, the material in the upper silo or hopper will flow into the body from the grid positions in the central sector, with the impeller run to the bottom position, put the material evenly transmitted to the next conveyor. In addition, the star feeder has a good sealing performance, when it stop, it also can be used a sealing gates, lock the material of the upper silo, not to leak.
3)Star feeder before installation should be preceded by running the wheel , to see whether the rotation is flexible, otherwise it should be checked whether there is other debris and demolition, and after cleaning and adjustment , it only can be started.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technical drawing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Detailed Images

Machine Parts

Name:   impeller of rotary  valve

Brand: TIANYI

Original: CHINA




Main parts

Name:   cast iron body of  rotary valve
Brand: TIANYI
Original:CHINA

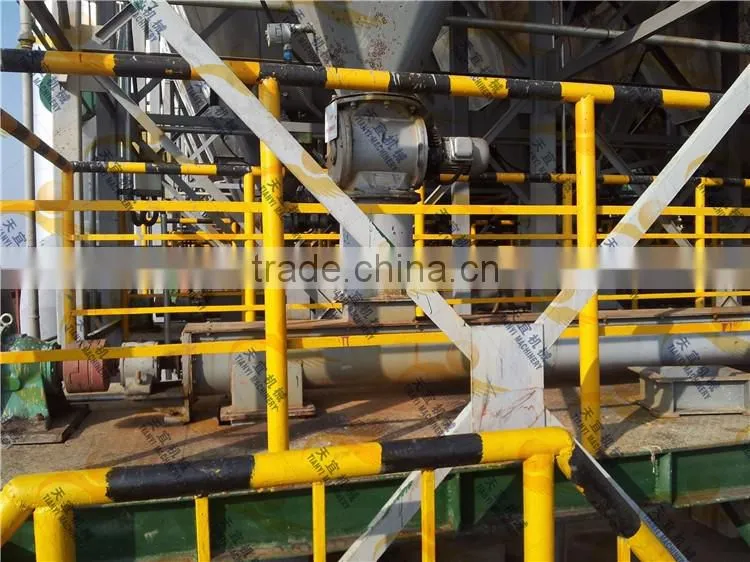

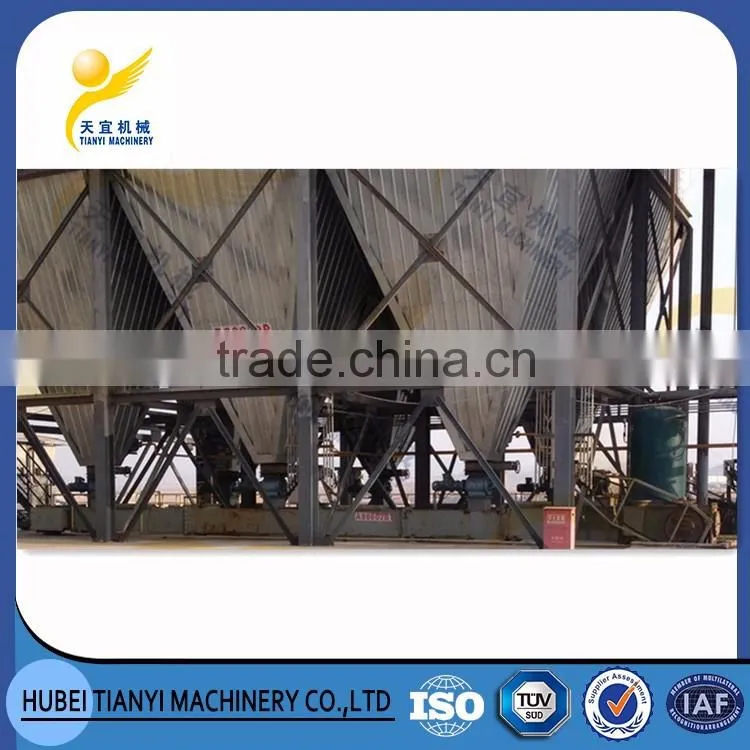

Rotary valve for fly ash under dust remover


Rotary valve be used under dust collector to discharge fly ash

Workshop & Equipment

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies

Packing & Delivery
Packaging
Size
3600 (L) * 2100 (W) * 2050 (H)
Weight
4.5T



Packaging Details
The normal package is iron cage(Size: L*W*H). we design the cage according to the product's size and weight. also will fix the products use screw or welding products on cages. we can packing according to customers special request.
