High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector

High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-1
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-2
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-3
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-4
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-5
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector thumbnail-6
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-1
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-2
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-3

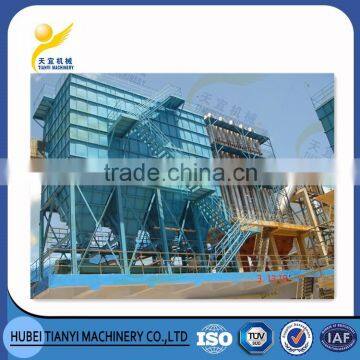

High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-4
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-5
High Quality Long Bag Filter Low Pressure Pulse Type Dust Collector photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Fabric Dust Collector
Efficiency:
99.9%
Contact Supplier Request Quote Chat Now
Hubei Tianyi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fabric Dust Collector
Efficiency 99.9%
Minimum Particle Size 0.5um
Place of Origin Hubei, China
Brand Name TIANYI
Model Number TY-LCMD
Dimension(L*W*H) Customised
Weight vary from different models
Certification ISO9001:2008/TUV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Name

High quality long bag filter low pressure pulse type dust collector

Product Description

High quality long bag filter low pressure pulse type dust collector

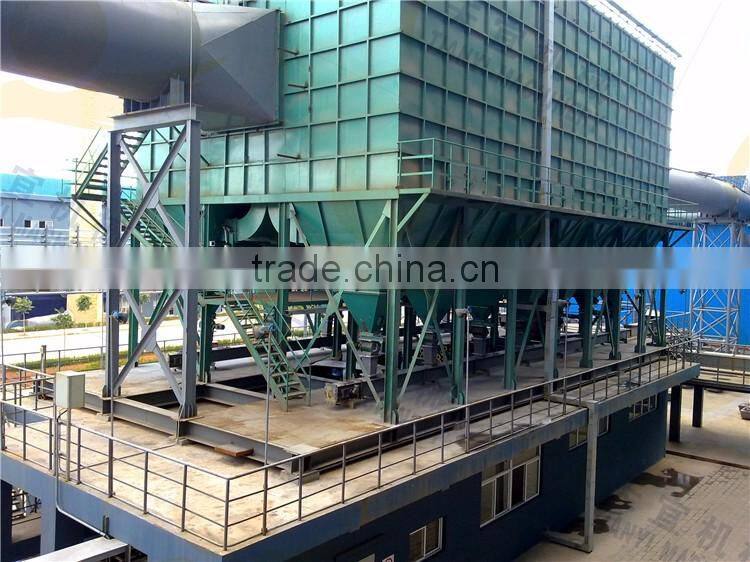

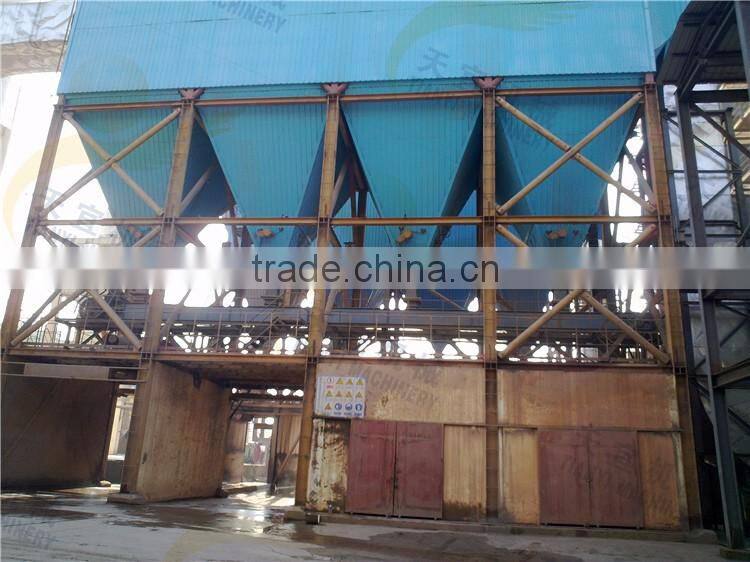

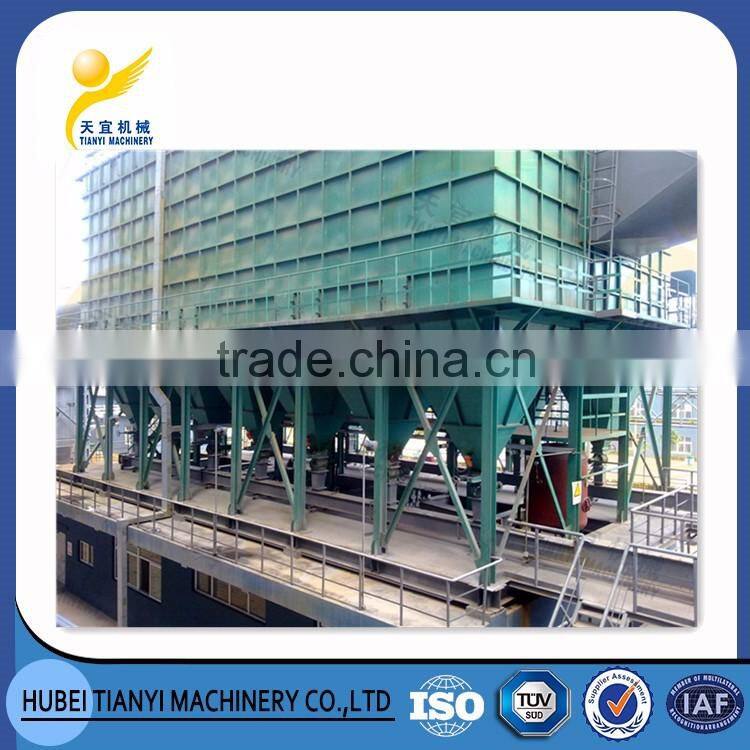

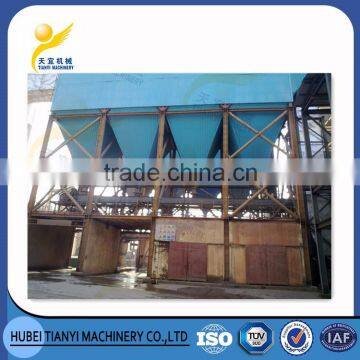

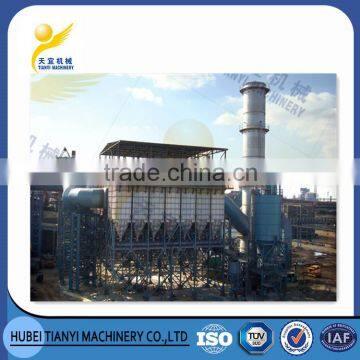

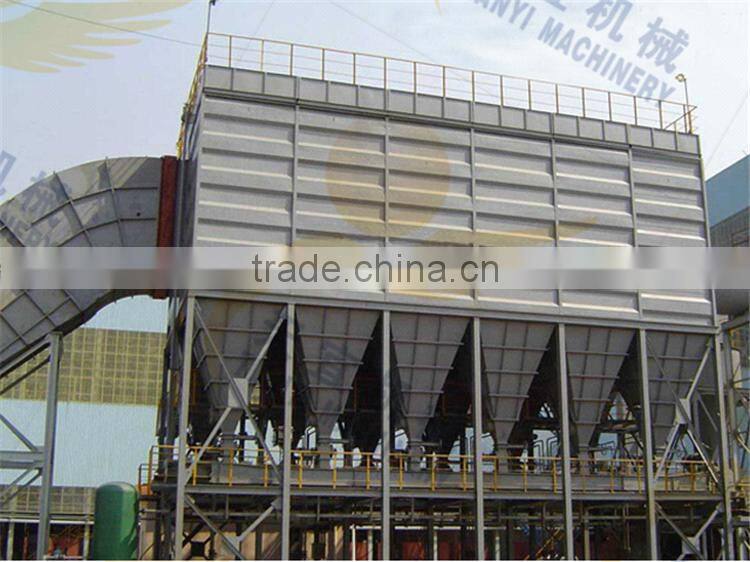

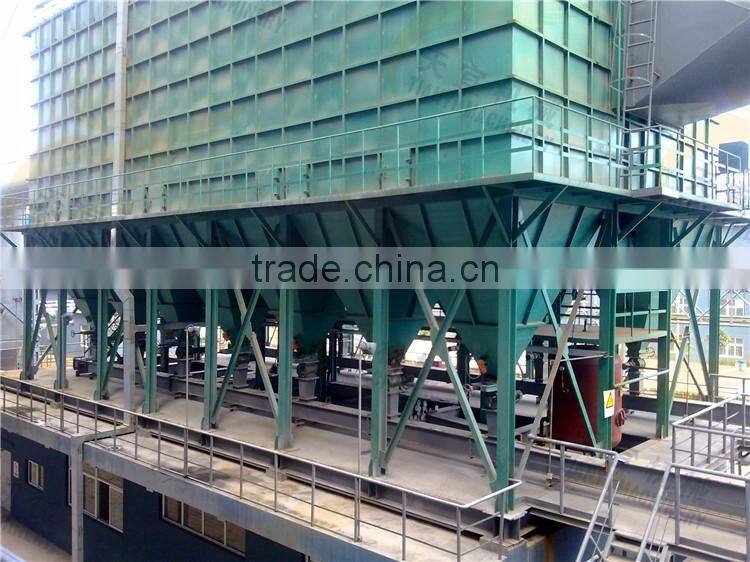

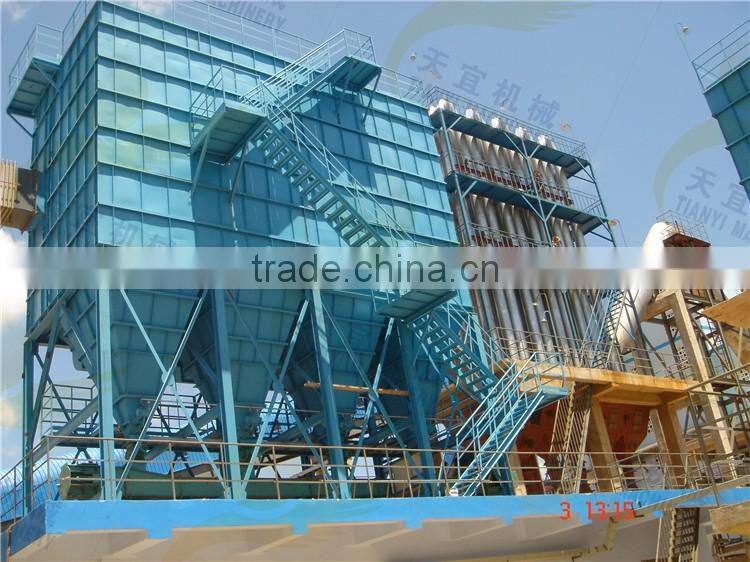

LCMD long bag low pressure pulse type dust collector is a large efficient dust removal device with advanced technology featured by great processing amount of gas, good dust removal effect, high dust removal efficiency, reliable operation, easy maintenance, and small covering area. With an excellent performance, such dust collector is applied in air purification and material recovery in metallurgy, electric power, building materials, mine, cement, chemical engineering, carbon black, asphalt concrete mixing, boiler, and other industries. It is mainly composed of truss, dust hopper, middle box body, upper box body, blowing device, ladder and platform, inlet and outlet air pipes, PLC control system, 8 parts in total,.

Item
Model No.
LCMD1850
LCMD2300
LCMD2800
LCMD3700
LCMD4600
LCMD5500
Air volume passing
(m3/h)
Inlet dust concentration
≤20g/m3
162000
207000
252000
333000
414000
495000
Filtration rate(M/min)
1.0~1.5
1.0~1.5
1.0~1.5
1.0~1.5
1.0~1.5
1.0~1.5
Filtering area(m2)
1850
2300
2800
3700
4600
5500
Net filter area(m2)
1850
2300
2800
3700
4600
5500
No. of filter chamber
4
5
6
8
10
12
Filter bag spec.
Ø160x6050
Ø160x6050
Ø160x6050
Ø160x6050
Ø160x6050
Ø160x6050
No. of filter bag
616
770
924
1232
1540
1848
No. of pulse valve
44
55
66
88
110
132
Removal compressed air
Injection pressure(MPa)
0.15~0.25
0.15~0.25
0.15~0.25
0.15~0.25
0.15~0.25
0.15~0.25
Equipment resistance(Pa)
1500~1800
1500~1800
1500~1800
1500~1800
1500~1800
1500~1800
Collection efficiency(%)
99.8
99.8
99.8
99.8
99.8
99.8
Outlet dust concentration(mg/m3)
<50
<50
<50
<50
<50
<50
Working temperature(℃)
<250
<250
<250
<250
<250
<250
Weight(t)
72
91
110
145
175
210

Main Features

1)  Simple structure  and easy in installation and maintenance.

2)  Good air tightness, protect environmental friendly.

3)  Remove ash or slag under the dust collector.

4)  Multiple points of load and unload.
5) Improve worker’s labor condition notably.
6) Be widely used in in metallurgy and waste to energy industries.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technical drawing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Workshop & Equipment

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies

Packing & Delivery
Packaging
Size
3600 (L) * 2100 (W) * 2050 (H)
Weight
4.5T



Packaging Details
The normal package is iron cage(Size: L*W*H). we design the cage according to the product's size and weight. also will fix the products use screw or welding products on cages. we can packing according to customers special request.
