Home > Manufacturing & Processing Machinery > Agricultural Machinery > Forestry Machine > Factory Wholesale BX92R Wood Chipper,manual Shredder Wood Chipper Shredder,mini Wood Chipper

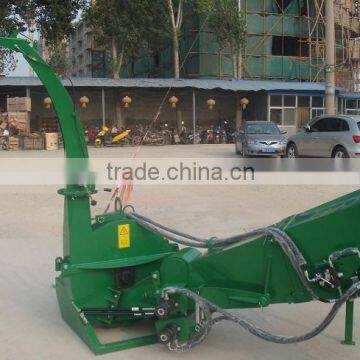

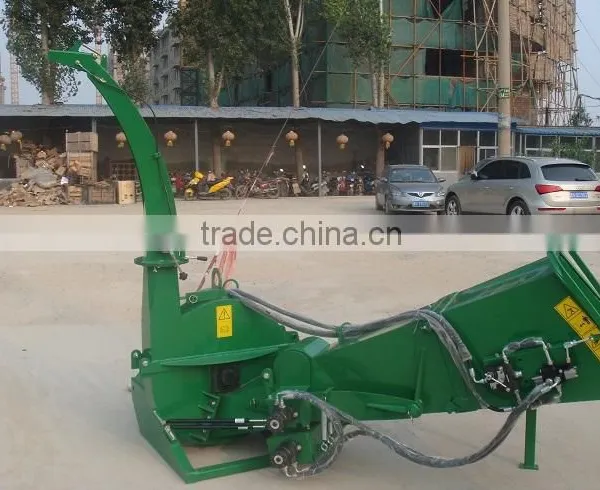

Factory Wholesale BX92R Wood Chipper,manual Shredder Wood Chipper Shredder,mini Wood Chipper
US$ 1 - 3,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Wood Chipper
Use:
cut wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale 6inch Wood Chipper Price,wood Chipper on Pto,wood Chipper for SaleUS$ 1 - 2,000MOQ: 10 Pieces -
Factory Wholesale 6inch BX62R Wood Chipper,pto Driven Wood Chipper for Sale,industrial Wood Shredder ChipperUS$ 1 - 2,000MOQ: 10 Pieces
-
Factory Wholesale Bx42 Wood Chipper,homemade Wood Chipper,industrial Wood ChipperUS$ 1 - 1,000MOQ: 10 Pieces
-
Factory Wholesale 4inch Pto Wood Chipper,wood Chipper for Garden Tractor,drum Wood ChipperUS$ 1 - 1,000MOQ: 10 Pieces
-
Factory Direct Sell 9hp Wood Chipper Shredder,garden Shredder Chipper,shredder ChipperUS$ 1 - 1,000MOQ: 10 Units
Condition
New
Type
Wood Chipper
Use
cut wood
Power Type
Other, Tractor power
Production Capacity
540r/min
Place of Origin
Zhejiang, China
Brand Name
Lizhong
Model Number
BX92
Dimension(L*W*H)
54"L x 52"W x 88"H
Weight
620kgs
Certification
CE
Warranty
1 YEAR
After-sales Service Provided
Overseas service center available
Factory wholesale BX92R wood chipper,manual shredder wood chipper shredder,mini wood chipper
1. Rotor
At The Heart Of The BX Chipper Is An Oversize Heavy Duty Rotor And Reversible Chipping Blades. The Large Diameter Rotor Has A Faster Tip Speed For Improved Chipping Action And The Heavy Gauge Steel Keeps Your Momentum To Power Through 6" Diameter Tree Trunks.
At The Heart Of The BX Chipper Is An Oversize Heavy Duty Rotor And Reversible Chipping Blades. The Large Diameter Rotor Has A Faster Tip Speed For Improved Chipping Action And The Heavy Gauge Steel Keeps Your Momentum To Power Through 6" Diameter Tree Trunks.
2. Blades
The Reversible Blades Are Precision Cut Tool Steel And Hardened, Keeping A Sharp Cutting Edge And Maximizing The Performance Of The Chipper.
3. Air Vents
Blowing Force Is Maximized With Air Intake Vents On The Side Of The Chipper. Air Enters Through The Vents And Powers The Chips Out The Chute Up To 20 Feet.
4. Twig Breaker Blower Paddles
Behind The Blades Are Blower Paddles With Integrated Twig Breakers Designed For Greater Output Force And Smaller Chips Exiting The Machine. This Provides More Consistent Chip Size And Allows You To Propel The Chips Further.
5. Adjustable Chute
Easily Control Where You Want The Chips With The Double Adjustable Exit Chute. The Chute Swivels 360 Degrees And The Top Deflector Adjusts The Distance.
6. Self-Feeding Hopper
The Self-Feed Hopper Is Designed To Angle The Brush Against The Rotor And Blades, Pulling The Branches Into The Chipper.
The Reversible Blades Are Precision Cut Tool Steel And Hardened, Keeping A Sharp Cutting Edge And Maximizing The Performance Of The Chipper.
3. Air Vents
Blowing Force Is Maximized With Air Intake Vents On The Side Of The Chipper. Air Enters Through The Vents And Powers The Chips Out The Chute Up To 20 Feet.
4. Twig Breaker Blower Paddles
Behind The Blades Are Blower Paddles With Integrated Twig Breakers Designed For Greater Output Force And Smaller Chips Exiting The Machine. This Provides More Consistent Chip Size And Allows You To Propel The Chips Further.
5. Adjustable Chute
Easily Control Where You Want The Chips With The Double Adjustable Exit Chute. The Chute Swivels 360 Degrees And The Top Deflector Adjusts The Distance.
6. Self-Feeding Hopper
The Self-Feed Hopper Is Designed To Angle The Brush Against The Rotor And Blades, Pulling The Branches Into The Chipper.
| Model | BX42 wood chipper | BX62/BX62R wood chipper | BX92R wood chipper |
| Drive System | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt |
| HP requirements for max. cap. | 35-40 | 60-70 | 85-110 |
| HP Range | 18-50 | 30-100 | 65-150 |
| Chipper Capacity | 4" Dia. (max. 12" slab) | 6" Dia. (max. 12" slab) | 10" Dia. (up to 14" slab) |
| Chipper Housing Opening | 4"x10" | 6½" x 12" | 10½" x 14" |
| Rotor Size | 25" | 30" | 36" |
| Number of Rotor Knives | 4 | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel |
| Rotor Weight | 110 lbs. | 180 lbs. | 280 lbs. |
| Feeding System Feed | Self Feed | Self or Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x42"W x 60"H | 50"L x 52"W x 74"H | 54"L x 52"W x 88"H |
| Hopper Opening | 20" x 20" | 25" x 25" | 25" x 25" (635X635mm) |
| Discharge Hood Rotation | 360° | 360° | 360° |
| Discharge Hood Height | 60" | 74" | 84" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight | 425 lbs.(195KG) | BX62S-770 lbs(346KG)./BX62R-1070lbs (485KG) | 1375 lbs. (620KG) |
