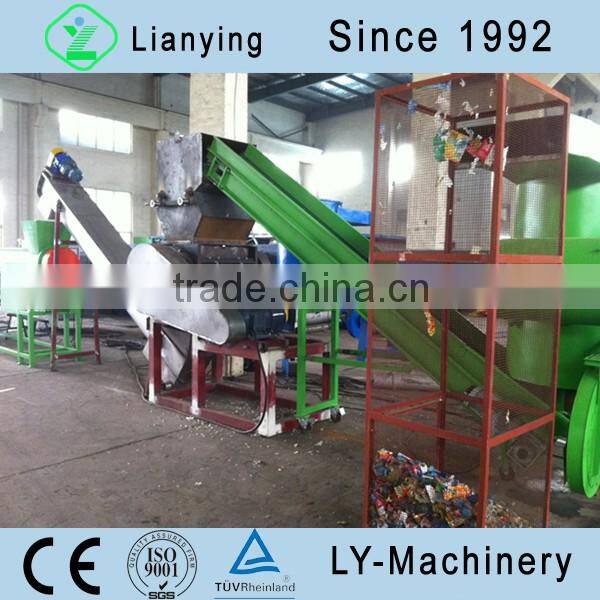

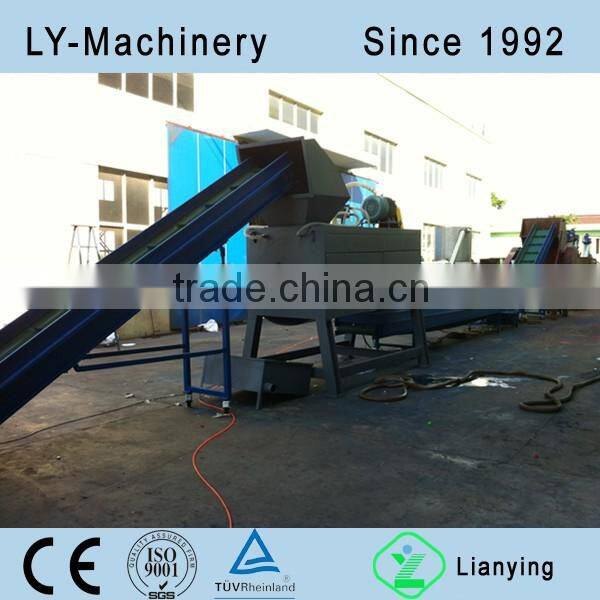

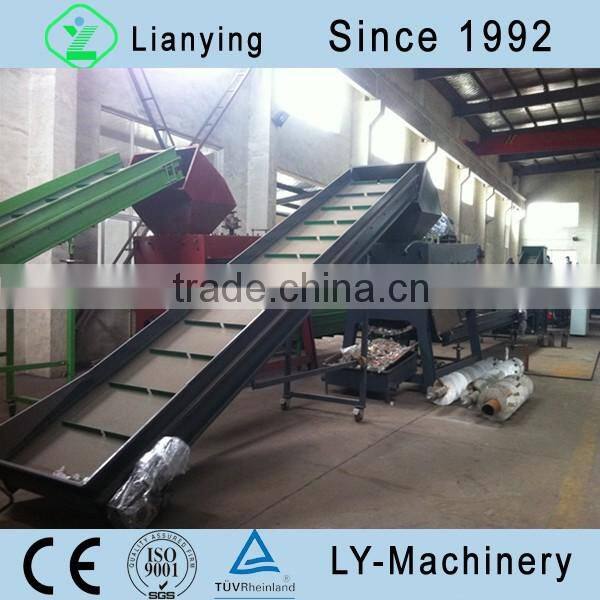

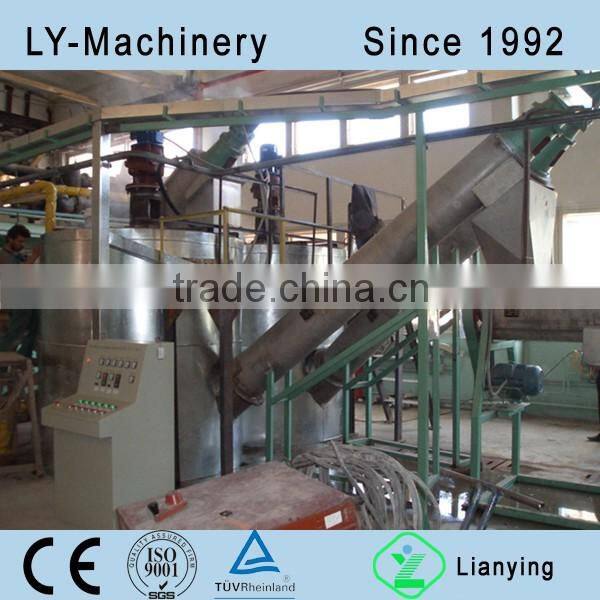

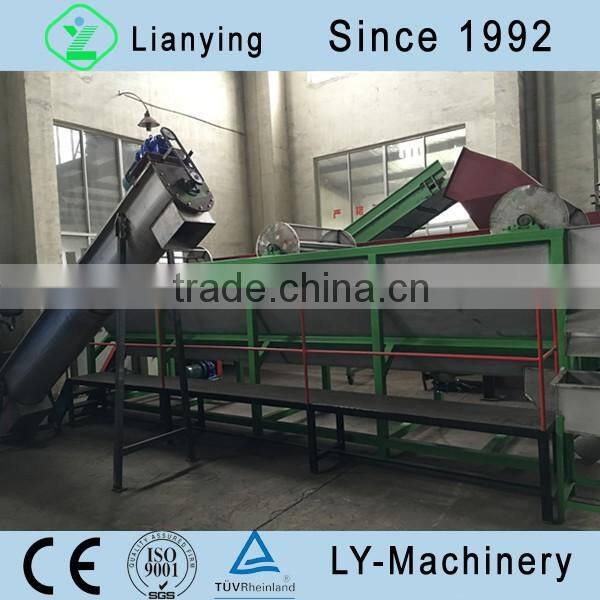

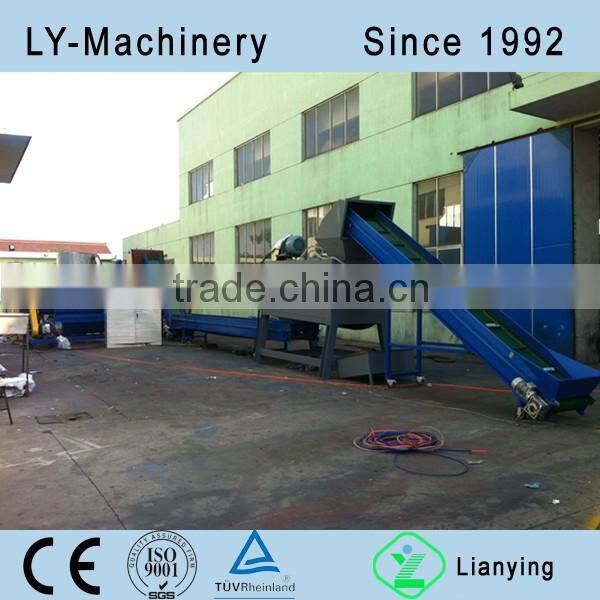

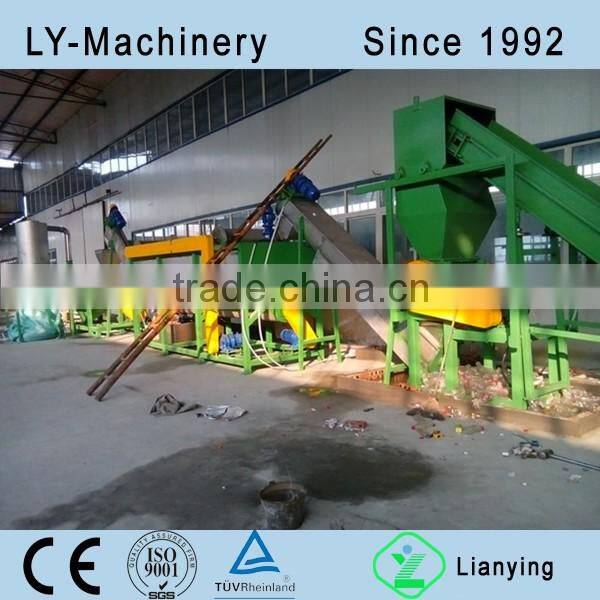

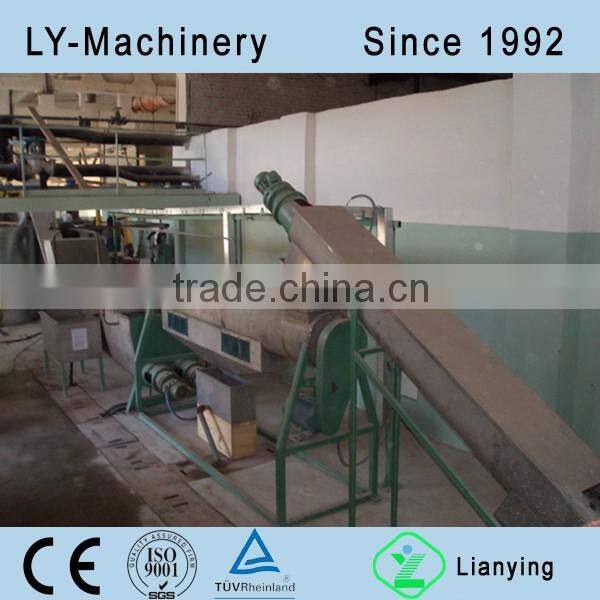

PET Washing and Drying System
US$ 30,000 - 80,000
/ Set
1 Set(Min. Order)
- shanghai
- T/T Money Gram
You May Like
Product Details
| Condition | New | Application | PET Bottle Recycling | |
| Automatic Grade | Automatic | Production Capacity | 300-2000kg/h | |
| Place of Origin | Jiangsu, China | Brand Name | LY | |
| Voltage | 380V 50HZ | Power(W) | 200kw | |
| Dimension(L*W*H) | 2800*3000*3300 | Weight | 25 Tons | |
| Certification | CE ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Packaging & Shipping
PET bottle crushing and washing machine , which is we digestion and absorption foreign advanced technology and R&D design and manufacture cleaning equipment , it is divided into unpacked , washing , sorting ,remove metal , crushing , floating washing , hot washing ,friction , rinsing , dehydrate , and so on ,processing section , the equipment cant produce high quality PET flakes , it can used to produce renewable PET polyester products and other PET related prodducts , it drastically change the past renewable PET bottle chips can not be done polyester long fiber history . The prduction line have reasonable design , high -machanization , less investment , easy maintenance , has been sold at home and zbroad customers .
Packaging & Shipping
| Packing Details: | standard wooden case packaging or as you required packaging form |
| Shipping Details: | 7 days after received 30% advanced payment |
depending on the applications these plants may include:
1,plastic lables separator
seperating the plastic lables before crushing
2,conveyor
after seperated the plastic labels then transport into the crusher for crushing
3,crusher
for crushing the plastic bottles and with water for washing at the same time
4,helix washer
after crushed then transport the plastic flakes to be upper side , the water will flow from upper side to be down and take away the dirty thing together
5,hot water tank
the water with high temperature (80-90℃)is inside the boiler. the bottle sheet gets clean after boiling and stirring inside the boiler . and the lables attached in the bottle are separated with the bottle body .
6,first dehydration
after heatibg then the plastic flakes will be removed the soda by dehydration .
7, floating washing tank
the plastic flakes will be cleaned again in the tank after the first dehydration, the pp caps and the PET flakes will be separated based on the different density , and the PET flakes will be cleaned again too.
8,preliminary fitter cleaning zfter plastic wastewater, sewage pool again into line
9,second dehydration
After some times of washing and for dehydration again then the plastic flakes will be much cleaner , after dehydration then the humidity wil be approx 25%or lss .
10,drying
after washing &cleaning then the plastic flakes will be dried by the hot air drying system ,and will be the regenerative resource again .
