Metal plate press brakes machine hydraulic Bending machine
- 200 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Huayang | ||
Model Number: | WC67 | Machine Type: | Press Brake | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Other, carbon steel/mild stee/ ss/ aluminum/.... | Power: | Hydraulic | Automation: | Automatic |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

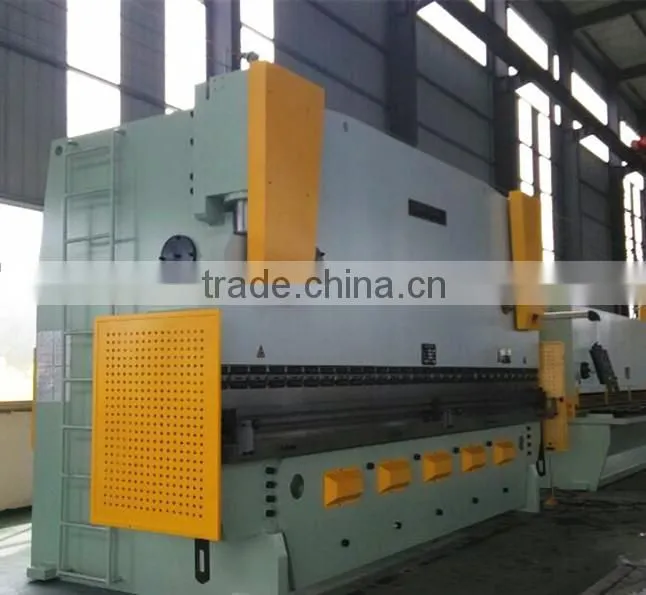

Metal plate press brakes machine hydraulic Bending machine
BRIEF INTRODUCTION:
♦ Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.
♦ Hydrualic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.
♦ Motorize-adjustinf device of backgauge and rams stroke,fine adjusting by motor,numberical display.
♦ Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.
COMPONENTS(as optional) :
Operation System: ESTUN /DELEM (HOLAND)
Oil pump(Gear Pump): Chengjie(Shanghai)
Moulds:From Nantong (China)
Hydraulic elements: Rexroth (Germany)/Omega(U.S.A.)/ Hongwei (China)
Electric parts: Siemens (Germany)
Motor: Siemens(Germany) /Hengli (Nantong)
Main Seal:Valqua(Japan)/NOK(Japan)
All components also can supply according to client's requirement.
SPECIFICATION:
Hydraulic press brake (Series WC67Y 67k) | ||||||
Specification | Normal Pressure | Length of working table | Distance between uprights | Depth of throat | Ram Stroke | Motor Power |
KN | mm | mm | mm | mm | KW | |
WC67-40/2000 | 400 | 2000 | 1590 | 200 | 100 | 5.5 |
WC67-40/2200 | 400 | 2200 | 1590 | 200 | 100 | 5.5 |
WC67-40/2500 | 400 | 2500 | 1900 | 200 | 100 | 5.5 |
WC67-50/2500 | 500 | 2500 | 1900 | 250 | 120 | 5.5 |
WC67-50/3200 | 500 | 3200 | 2600 | 250 | 120 | 5.5 |
WC67-63/2500 | 630 | 2500 | 2050 | 250 | 100 | 5.5 |
WC67-63/3200 | 630 | 3200 | 2600 | 250 | 100 | 5.5 |
WC67-80/3200 | 800 | 3200 | 2600 | 250 | 100 | 7.5 |
WC67-80/4000 | 800 | 4000 | 3200 | 250 | 100 | 7.5 |
WC67-100/2500 | 1000 | 2500 | 2050 | 320 | 120 | 7.5 |
WC67-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 7.5 |
WC67-100/4000 | 1000 | 4000 | 3000 | 320 | 120 | 7.5 |
WC67-100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
WC67-125/2500 | 1250 | 2500 | 2050 | 320 | 120 | 7.5 |
WC67-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 7.5 |
WC67-125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 7.5 |
WC67-125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
WC67-160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 11 |
WC67-160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 11 |
WC67-160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 15 |
WC67-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 15 |
More specification you need please contact with me. We can supply the bending machine :
Bending thickness :4mm Min - 40mm Max
Bending length : 1.5m Min - 8 m Max
AFTER SERVICE :
1.Seller can arrange people go abroad for installation and test .The cost at home is paid by seller ,but cost a broad include the round-trip ticket should be paid by buyer .
2.Seller offers the operation manual (English).
3.Seller offers one set of wearing parts and one set tools for installation and maintenance .
4.Length of warranty : one year as from the date of acceptance.
one year as from the date of installation and acceptance. Within the 1 year ,if the accessory is demaged exce pt the human factor of your parts, we will express a new related accessory (free) and instruct you how to repair. exceed 1 year.,if the accessory is demaged we can express a new related accessory (changed) and instruct you how to repair
5.Buyer can arrange people here to examine and verify the machine, buyer also can send people here to learn how to use the machine (it’s free of charge to learn ).

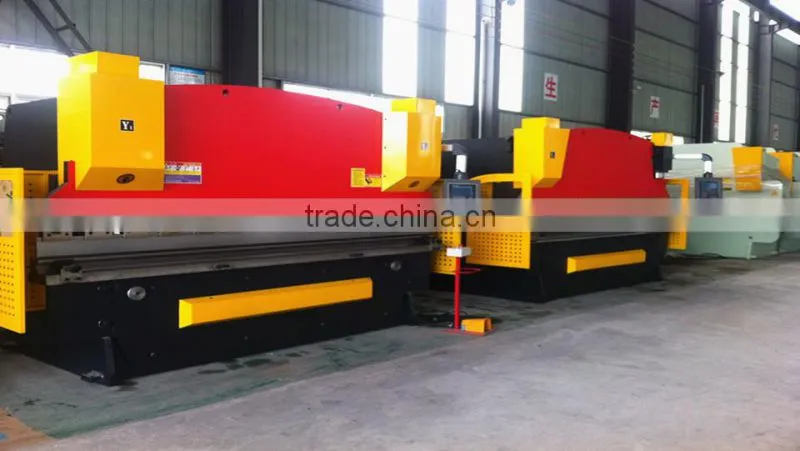

OUR FACTORY:
PRODUCING :
PRODUCTS:
--- WITH CNC SYSTEM

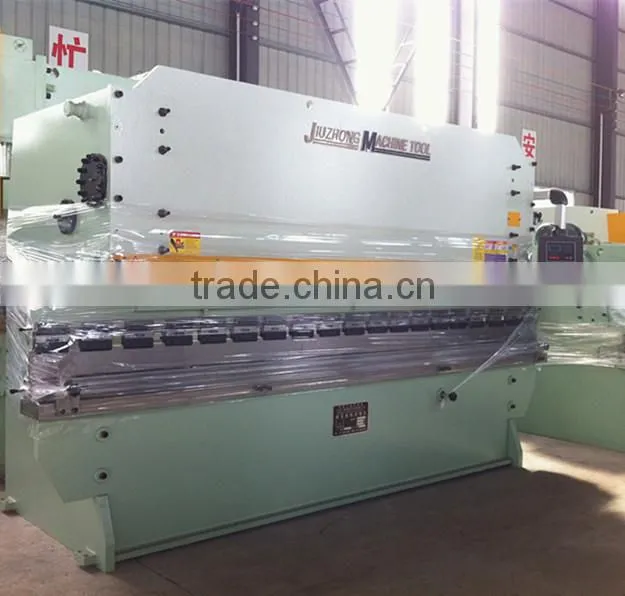

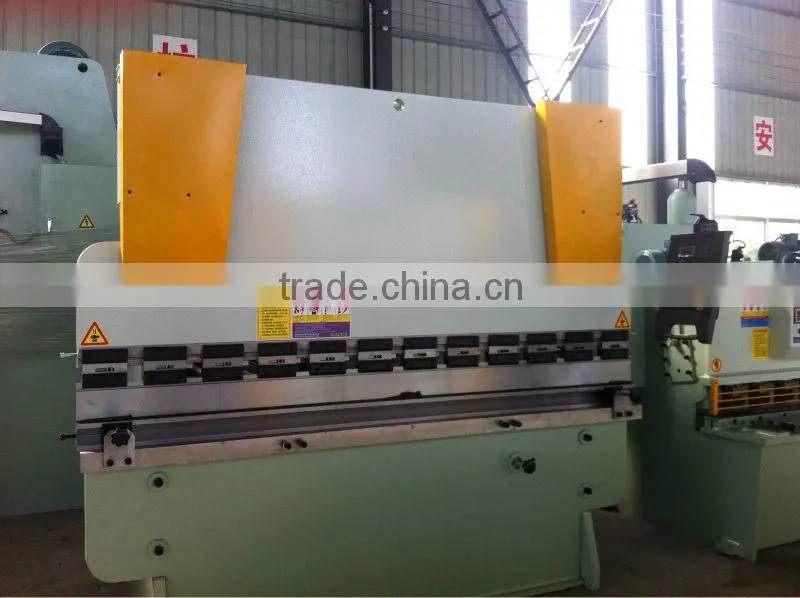

--- WITH NC SYSTEM
CNC SYSTEM(FOR OPTIONAL):

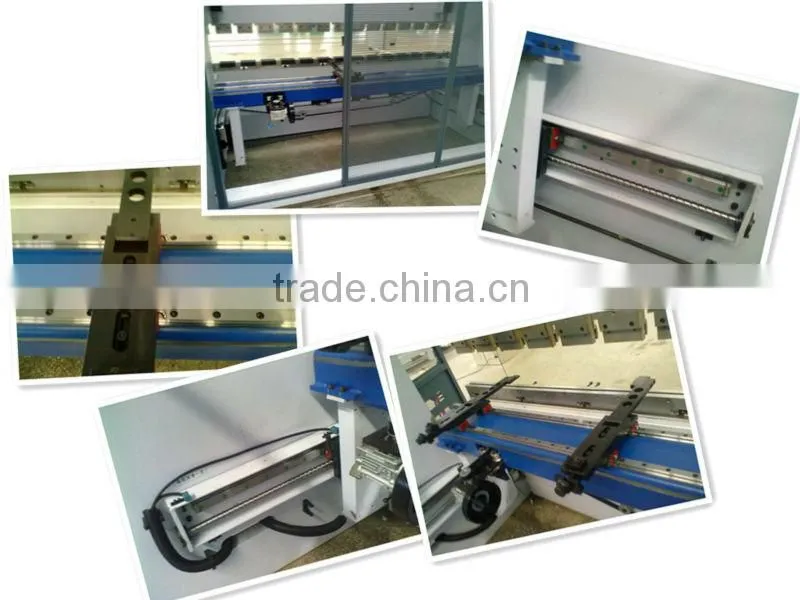

BALL SCREW AND LINER GUIDE(as optional):

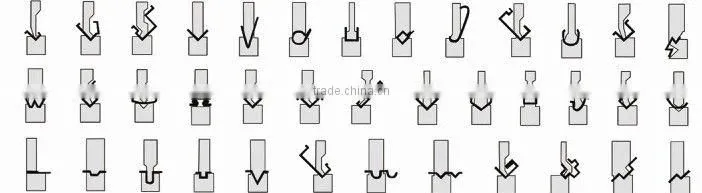

WORK-PIECES PROCESSING(ACCORDING CLIENT'S CHOICE):

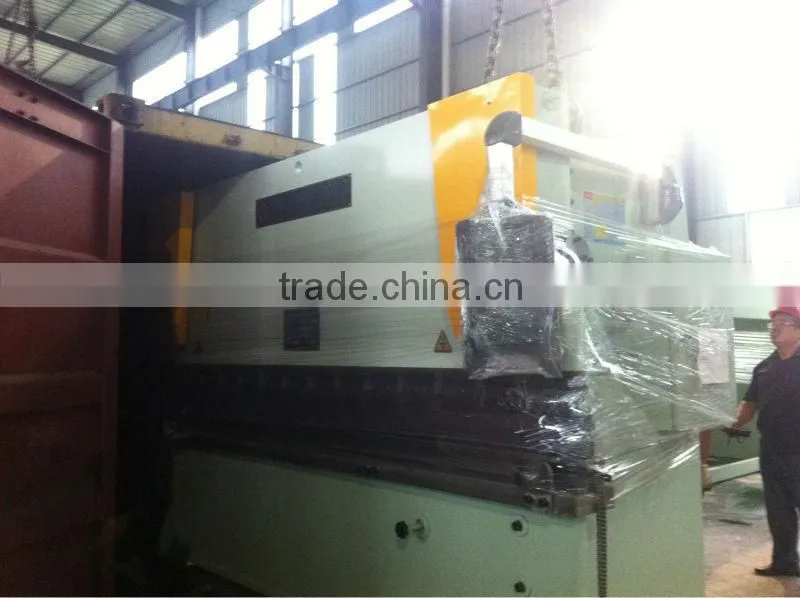

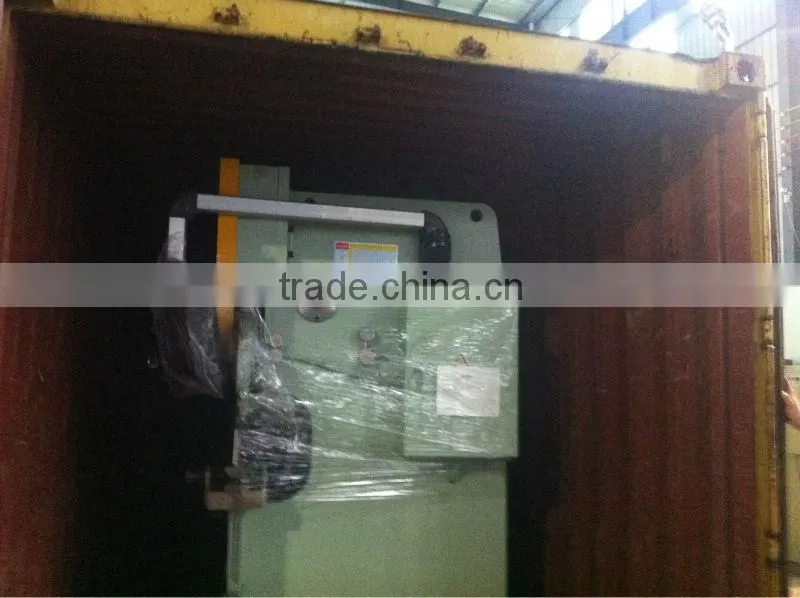

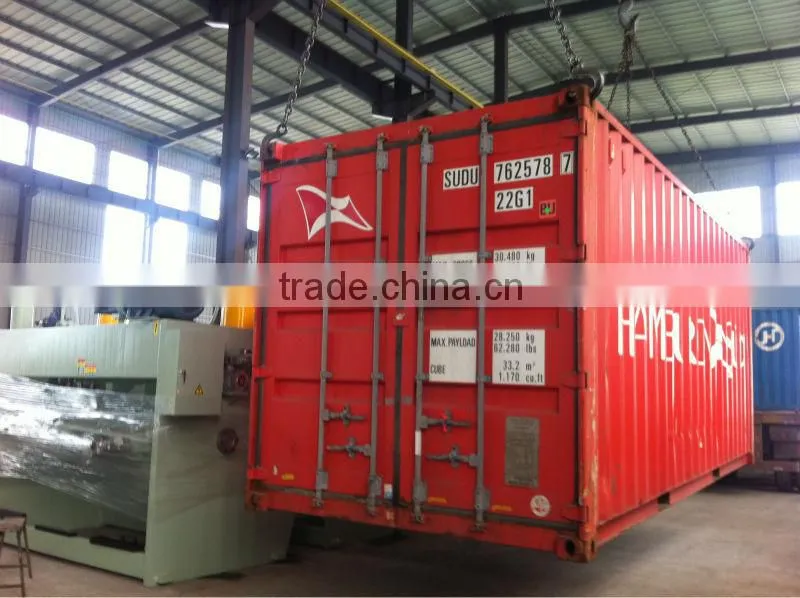

LOADING CONTAINER:
