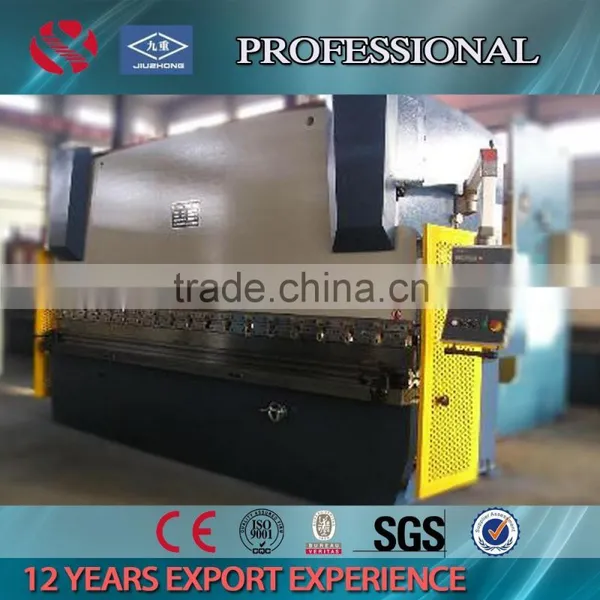

160ton Bending Machine 12feet Steel Press Brake 4000mm

160ton bending machine 12feet steel press brake 4000mm

   ♦   Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.

    ♦   Hydualic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.

   ♦      Motorize-adjustinf device of backgauge and rams stroke,fine adjusting by handwheel,numberical display.

   ♦     Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.

♣   Hydraulic press brake

•   Adopt integrated hydraulic control system, more reliable and easy for maintenance.main hydraulic valves from Bosch (Germany)

•   All pipes, flange and joint with vibrations proof and leakage proof design and setting .

•  Main seals in cylinder is Valqua from Japan,the most famous brand,good quality and high performance.

•  Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

•  The hydraulic system is made in compliance with current regulations.

♣ Electrical system

•  Electrical Cabinet under theinternational Standard, safe and reliable, strong anti interference      capability.

• Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to      operate.

• Main electrical elements choose from Siemens .Germany.

♣ Synchro control system

•  Patented system for exact parallelism and a high repeat accuracy

•  The worktable adopts the particular design,reducing the crowning distortion amount of lower        tool effectively.

•  Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the    parallelism between beams is used for the synchronism.

  ♣  Ram and dies

• The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's requirement according to real workpiece situation.

• Upper and buttom die can be sectioned according to customer’s requirement.

• The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.

 ♣Tooling (optional)

 ♣Safety system(optional)

More specification you are interested please contact with me.

Hydraulic press brakes WC67-160/4000

Producing progress:
