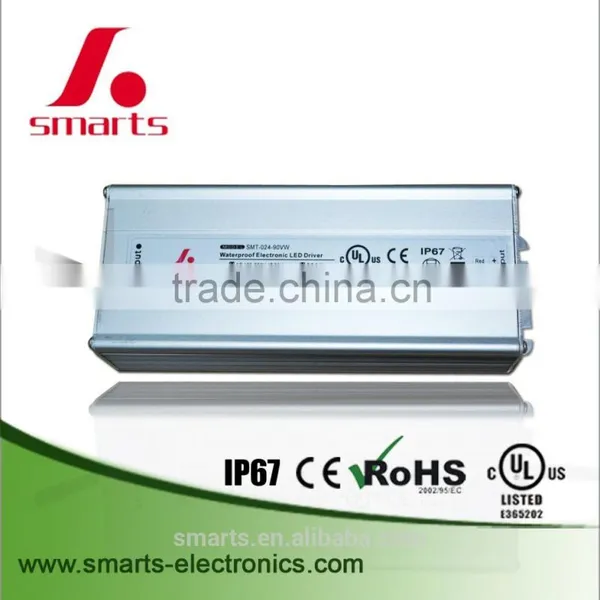

waterproof ac dc 24v 6w power supply with CE UL ROHS approval
| MODEL | SMT-012-006VW | SMT-024-006VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1A | 0.5A | |
| CURRENT RANGE | 0~0.5A | 0~0.25A | |
| RATED POWER | 6W | 6W | |
| RIPPLE&NOISE(max) | <700mV | <400mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |
| INPUT | VOLTAGE RANGE | 100~265VAC | |
| FREQUENCY RANGE | 47~63Hz | ||
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >80% | >81% | |
| AC CURRENT(Typ.) | 0.090A/100~220VAC | ||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||
Note;
- All parameters NOT specially mentioned are measured at 110V ~ 220VAC input,rated load and 25℃ of ambient temperature.
- Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
- Tolerance:includes set up tolerance,line regulation and load regulation.
Features:
- IP67 design for indoor or outdoor installations
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- Products through CE,RoHS Certification
- 24 Months warranty

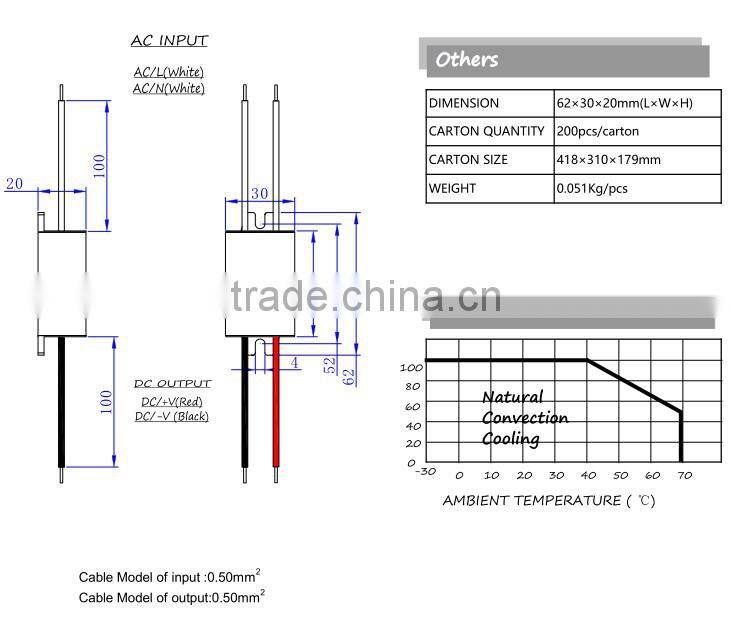

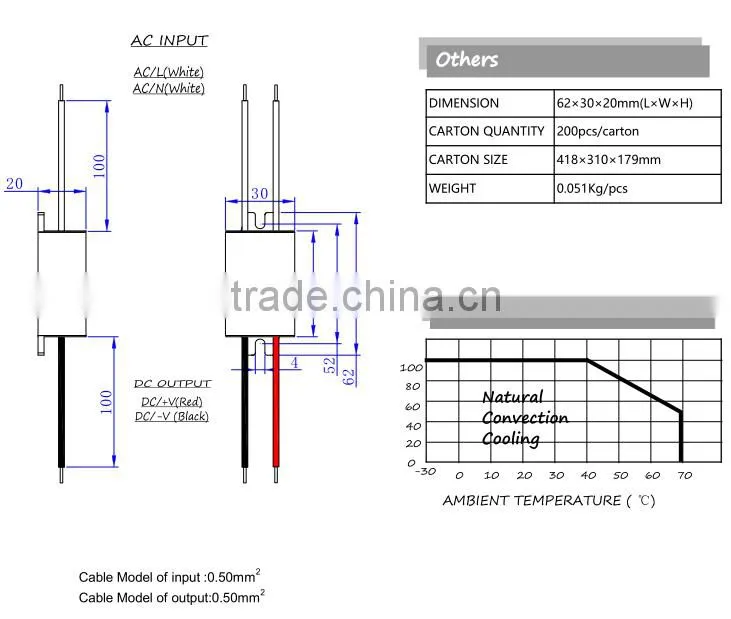

Mechanical Specification
| waterproof ac dc 24v 6w power supply with CE UL ROHS approval | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 29 g | 6 kg | 200pcs | 299*224*176mm |
| |
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Triac CC&CV Dimmable Series
| 0-10V CC&CV Dimmable Series
| DALI CC&CV Dimmable Series
|
Wall-mount Power Adapter
| HOME | Desktop Power Adapter
|
Constant Voltage Series
| Enclosue Power Supply
| Constant Current Series
|
What Service we can supply??
- All inquiries will be replied within 24 hours
- Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
