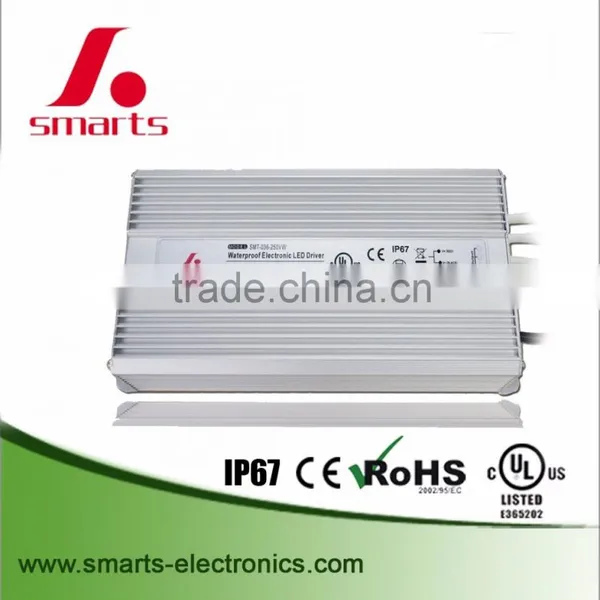

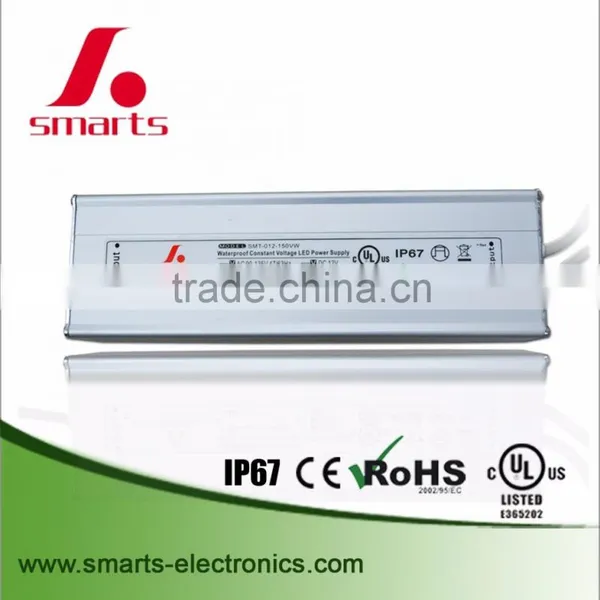

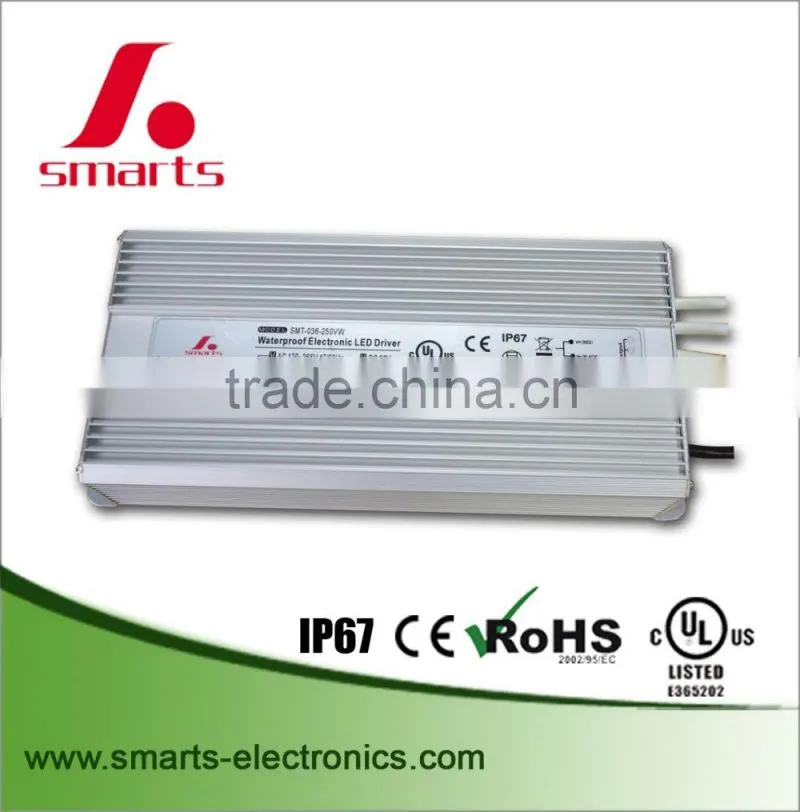

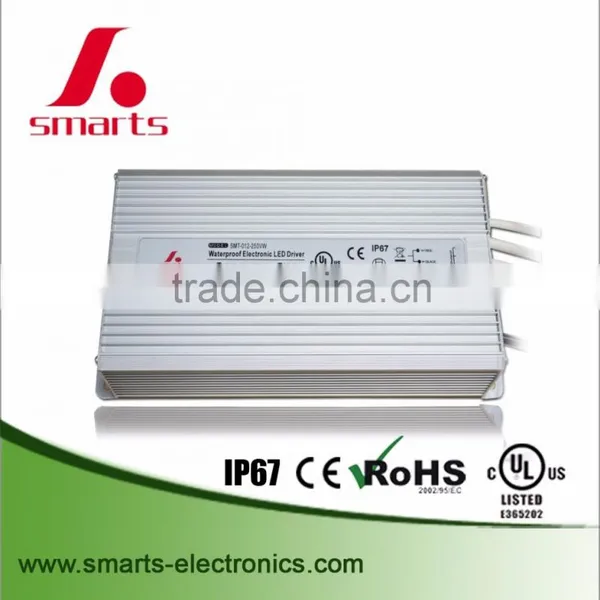

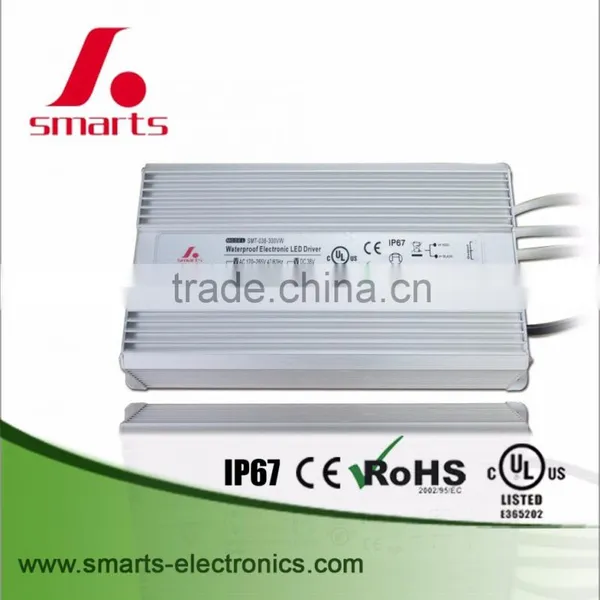

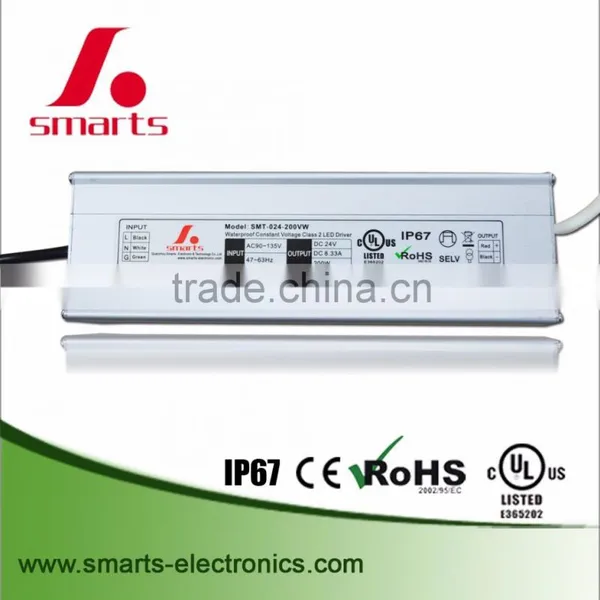

UL input 110v ac waterproof 250w 24v 10a power supply
Descriptions:
- Input volt: 90-135vAC / 170-265vAC
- Efficiency>82%
- Warranty: 2 years
- CE,UL,ROHS approval
- Size: 235*120*56mm
- Net weight: 2540g/pc
- Case material:aluminum housing
- Waterproof rate: IP67
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Environment :
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
Model |
Input voltage (AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
SMT-012-250VW |
90-135vAC / 170-265vAC |
47~63HZ |
12 |
20.83A |
250W |
-25~50°C |
IP67 |
SMT-024-250VW |
90-135vAC / 170-265vAC |
47~63HZ |
24 |
10.42A |
250W |
-25~50°C |
IP67 |
| SMT-012-300VW | 170-265vAC |
47~63HZ |
12 |
25.00A |
300W |
-25~50°C |
IP67 |
SMT-024-300VW |
170-265vAC
|
47~63HZ |
24 |
12.50A |
300W | -25~50°C |
IP67 |
