2 year warranty constant current waterproof 700ma 24w 25w led driver
• 2 years warranty
(We promise to replace new ones to you if there is any defective happen during the warranty period)
Description:
1. Input voltage.:100-265V AC
2. Efficiency>82%
3. Warranty: 2 years
4. CE,UL,ROHS approval
5. product dimension(L x W x H):160*29*21mm
6. Net weight:115g/pc
7. Case material:Aluminum
8. Waterproof rate: IP67
Features:
• High efficiency,save energy ,protected environment
• High stability and low ripple, increase light efficiency and decrease light attenuation
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant voltage
• Passed high ,low temperature and waterproof testing.
• Integrity protection,over loading, over voltage ,over current
• 8Hrs and 100% full load burn-in test.
Environment:
• Working Temperature : -30 ~ +60°C
• Working Humidity : 20 ~ 90% RH non-condensing
• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
• Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power(Watt) |
Working Temp. |
Protection grade |
SMT-048-0500CW |
100-265vAC |
47~63Hz |
30~48V |
500mA |
24W |
-40~50°C |
IP67 |
SMT-060-0500CW |
100-265vAC |
47~63Hz |
40~60V |
500mA |
30W |
-40~50°C |
IP67 |

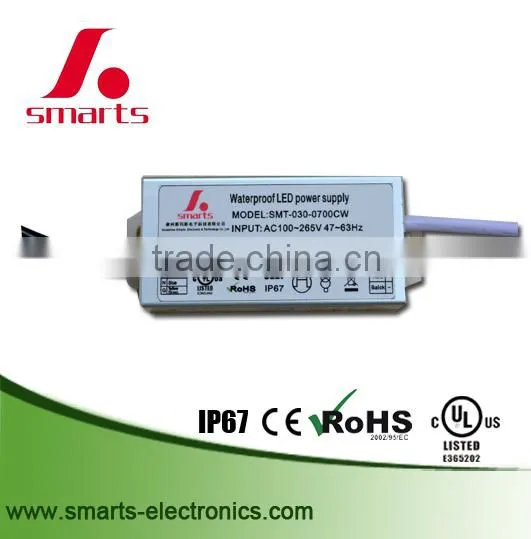

SMT-030-0700CW |
100-265vAC |
47~63Hz |
15~30V |
700mA |
21W |
-40~50°C |
IP67 |
SMT-036-0700CW |
100-265vAC |
47~63Hz |
20~36V |
700mA |
24W |
-40~50°C |
IP67 |
SMT-040-0700CW |
100-265vAC |
47~63Hz |
20~40V |
700mA |
28W |
-40~50°C |
IP67 |
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
constant voltage LED drivers
dimmable constant voltage & current led drivers
enclosure power supplies
inner box-white box + outer carton- standard exporting carton for packing
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.

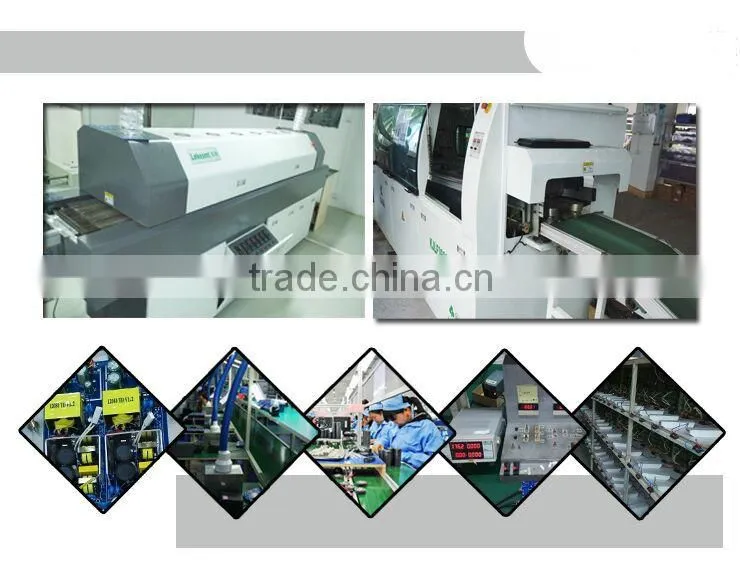

factory & equipments view:
Our service
1. Trade term: EXW,FOB..(Optional)
2. Port: Xiamen
3. MOQ: 1PCS
4. Sample availability: Yes
5. Payment: T/T, Western union, Paypal, Trade assurance
6. shipment: Ocean or air transportation (optional)
7. Normal lead time: 7 working days for samples, 15 working days for mass production.
8. Payment condition: All are paid before production or 30% deposit and 70% before delivery (optional)
9. Inspection: 100% QC inspection before shipping
10. Packing: All are single packed with white box, and then packed in a carton box.
11. Service: Online 12 hours, OEM design & OEM packing.
12. Guarantee: we promise to replace a new one to you if there is any defective happen during warranty time.
