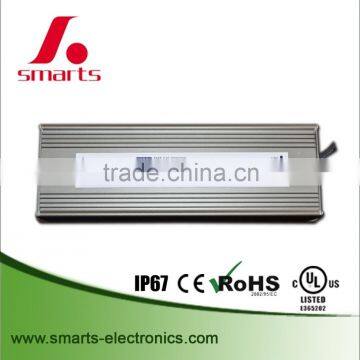

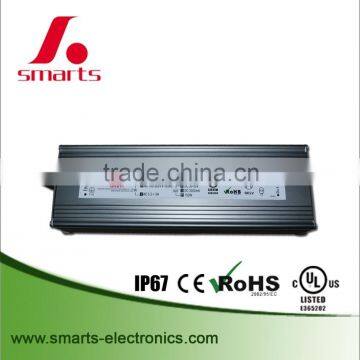

constant current 100 watt cob light led driver
• 2 years warranty
(We promise to replace new ones to you if there is any defective happen during the warranty period)
Specifications
1. Input voltage.:100~265vAC
2. Efficiency>83%
3. Warranty: 2 years
4. CE,UL,ROHS approval
5. product size:186*68*43mm
6. Net weight::1210/g/pc
7. Case material:aluminum
8. Waterproof rate: IP67
Features:
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current
- 8Hrs and 100% full load burn-in test.
- Working Temperature : -40 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters
Model | Input voltage(AC) | Working Frequency | Output voltage | Output Current | Output power(DC) | Working Temp. | Protection grade |
SMT-084-1200CW | 100-265V | 47~63HZ | 65-84V | 1200mA | 100W | -25~50°C | IP67 |
| SMT-042-2400CW | 100-265V | 47~63HZ | 20-42V | 2400mA | 100W | -25~50°C | IP67 |
| SMT-057-1750CW | 100-265V | 47~63HZ | 40-57V | 1750mA | 100W | -25~50°C | IP67 |
| SMT-100-1050CW | 100-265V | 47~63HZ | 60-72V | 1400mA | 105W | -25~50°C | IP67 |
| SMT-072-1400CW | 100-265V | 47~63HZ | 20-36V | 1750mA | 100W | -25~50°C | IP67 |
Applications
Our products are widely used in various industries, such as:
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
constant volatge led drivers
| constant current led drivers
| switching power supplies
|
triac dimmable led drivers
|
AC-DC adapter
|
DALI dimmable led drivers
|
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Trade Assurance
Delivery : 7 working days for sample order , 12 working days for 500pcs
Shipping term : FedEx DHL UPS TNT
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity
power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
our market
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
Why choose us?
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe!
3. Price is negotiable if you have large quantity demand.
4. 100% QC inspection Before Shipping.
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.decision for the shipping terms will be made according to your requirements.
7. We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution.
8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
9. OEM design & OEM packing welcome.
10. Samples will be ready within 7 working days
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us !
