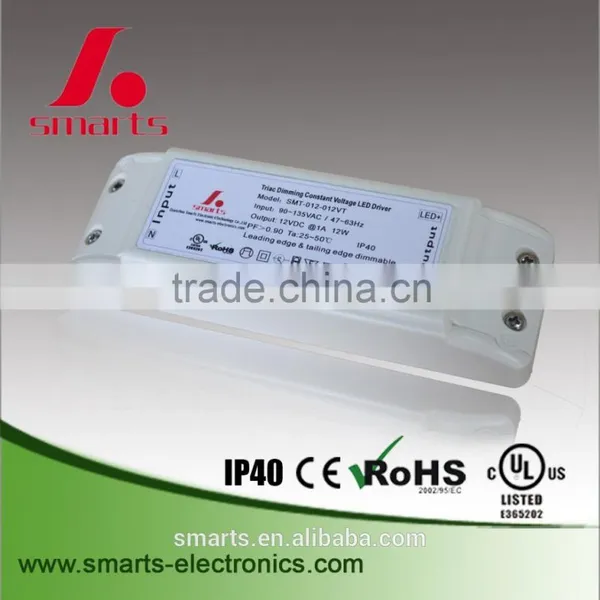

constant voltage 12v 24v dimmable 12w led driver transformer ip40
Model |
SMT-012-012VT |
SMT-024-012VT |
|
Output |
DC Voltage |
12VDC |
24VDC |
Voltage Accuracy |
±5% |
±5% |
|
Rated current |
1.0A |
0.5A |
|
Rated power |
12W |
12W |
|
Input |
Voltage Range |
90-135VAC / 170~250VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
PF>0.92/110V ; PF>0.94/220V ; PF>0.95/250V |
||
Full Load Efficiency(Typ.) |
81% |
82% |
|
AC Current(Typ.) |
0.17A/110VAC 0.15A/170VAC 0.12A/220VAC 0.1A/265VAC |
||
Leakage current |
<0.8mA/110VAC, <0.7mA/220VAC |
||
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over Current |
1.4 Times output current |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
efficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety& EMC |
Safety standards |
EN-60950-1, EN-61347-1/-2/-13 |
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11,EN61547,Alight industry level
|
||
Others |
Weight |
0.16Kg |
|
Size |
140*45*28mm(L*W*H) |
||
packing |
320*280*215mm |
||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2.Tolerance: includes set us tolerance,line regulation and load regulation . |
||
Feature:
- Output constant voltage type
- Input range 90~135VAC / 180-265VAC
- Built-in PFC function >0.9
- Efficiency > 84%
- Protections:Short circuit/over Current
- Fully isolated plastic case
- Cooling by free air convection
- Easy Installation.
- Work with leading edge and trailing edge triac dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Mechanical Specification
- input AC (L),AC(N)
- Output(DIM+),(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram
Simple Connection Diagram
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
| constant voltage 12v 24v dimmable 12w led driver transformer ip40 | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 160g | 8.5kg | 50pcs | 324*298*176mm |
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
