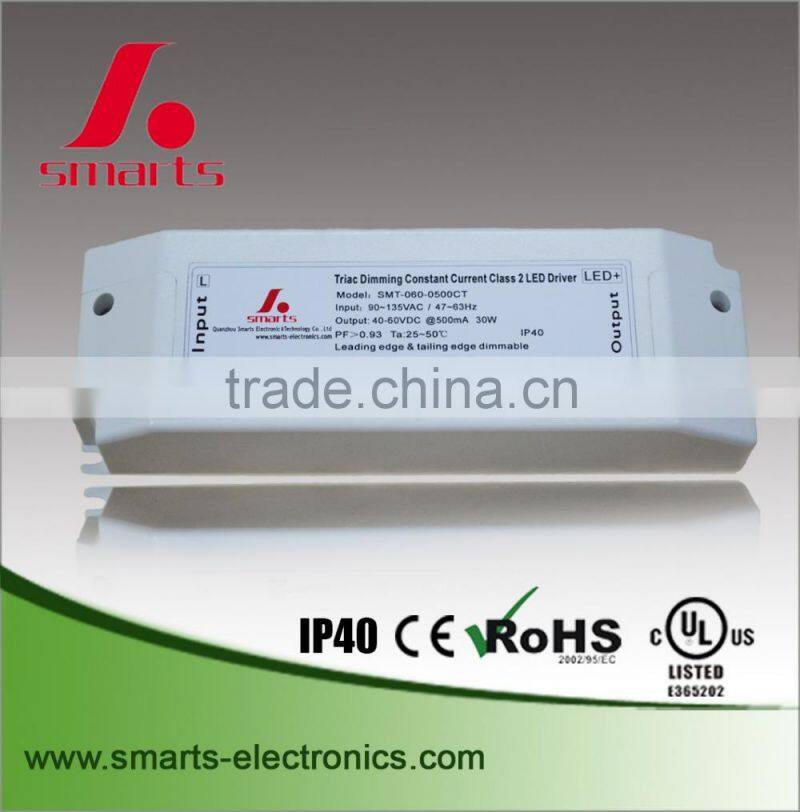

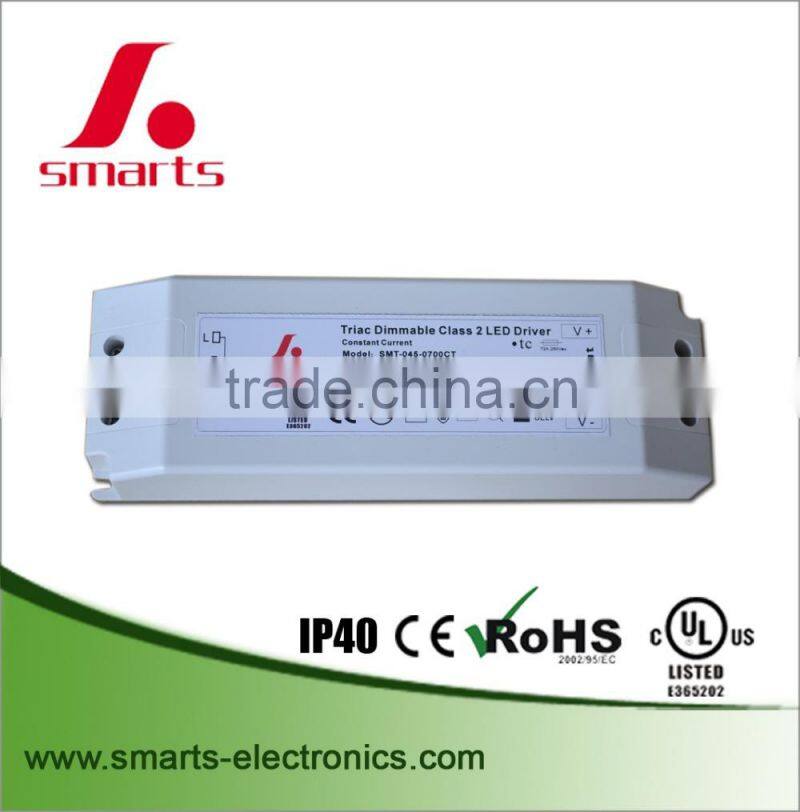

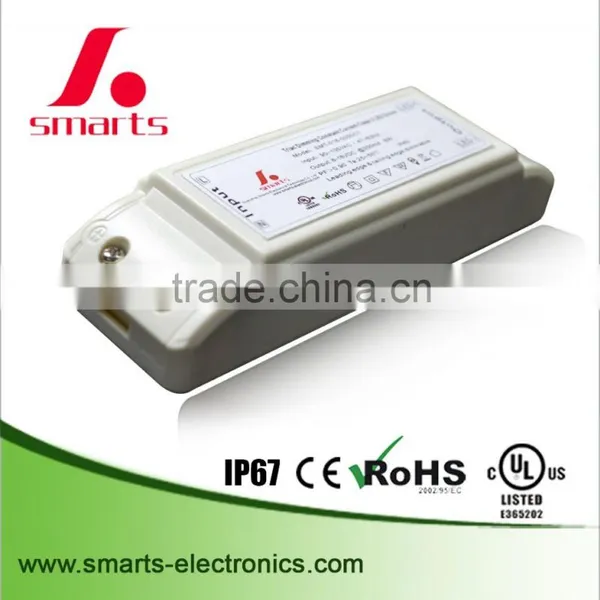

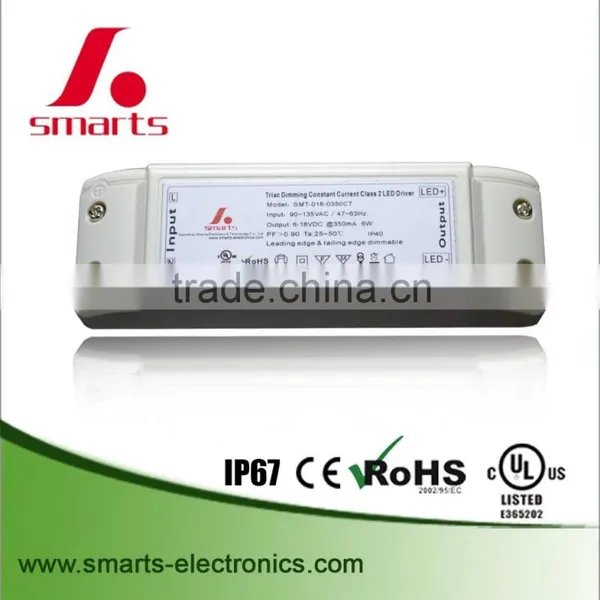

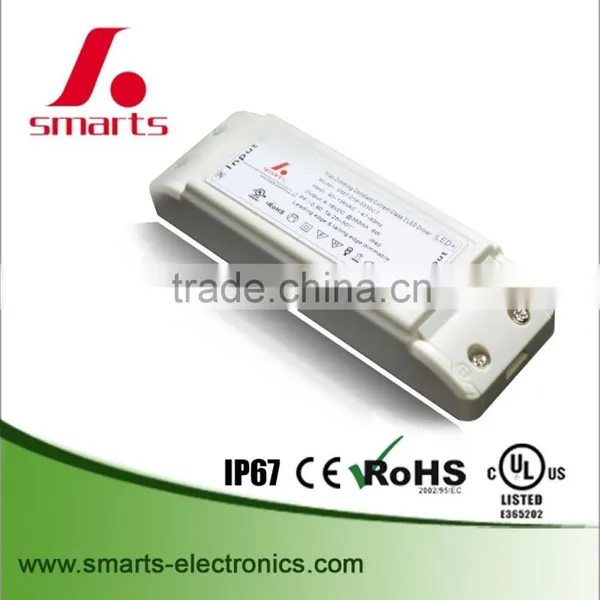

ce ul cul 500ma electronic triac dimmable drivers
·Input range :90-135VAC / 170-265VAC
·Output: 30-48V 500mA 24W
·Built-in PFC function
·Efficiency > 84% / PF>0.9
·Protections:Short circuit/over Voltage
·Fully isolated plastic case
·Easy installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
·Lifespan:(MTBF)50,000 hours
Product parameters:
Model | Input voltage(vAC) | Working Frequency (Hz) | Output voltage (vDC) | Output Current | power (Watt) | Working. Temp | Protection grade |
SMT-060-0350CT | 90-135V/170-265v | 47~63Hz | 40-60V | 350mA | 21W | -40~50°C | IP40 |
SMT-080-0350CT | 90-135V/170-265v | 47~63Hz | 60-80V | 350mA | 28W | -40~50°C | IP40 |
SMT-090-0350CT | 90-135V/170-265v | 47~63Hz | 70-90V | 350mA | 31W | -40~50°C | IP40 |
SMT-060-0500CT | 90-135V/170-265v | 47~63Hz | 40-60V | 500mA | 30W | -40~50°C | IP40 |
| SMT-048-0500CT | 90-135V/170-265v | 47~63Hz | 30-48V | 500mA | 24W | -40~50°C | IP40 |
| SMT-070-0500CT | 90-135V/170-265v | 47~63Hz | 50-70V | 500mA | 35W | -40~50°C | IP40 |
SMT-045-0700CT | 90-135V/170-265v | 47~63Hz | 20-45V | 700mA | 31W | -40~50°C | IP40 |
| SMT-030-0700CT | 90-135V/170-265v | 47~63Hz | 15-30V | 700mA | 21W | -40~50°C | IP40 |
| SMT-036-0700CT | 90-135V/170-265v | 47~63Hz | 20-36V | 700mA | 25W | -40~50°C | IP40 |
| SMT-050-0700CT | 90-135V/170-265v | 47~63Hz | 30-50V | 700mA | 35W | -40~50°C | IP40 |
| SMT-036-0900CT | 90-135V/170-265v | 47~63Hz | 20-36V | 900mA | 32W | -40~50°C | IP40 |
| SMT-024-1050CT | 90-135V/170-265v | 47~63Hz | 10-24V | 1050mA | 25W | -40~50°C | IP40 |
| SMT-030-1050CT | 90-135V/170-265v | 47~63Hz | 15-30V | 1050mA | 32W | -40~50°C | IP40 |
ce ul cul 500ma electronic triac dimmable drivers
triac dimmable led driver 700ma
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
