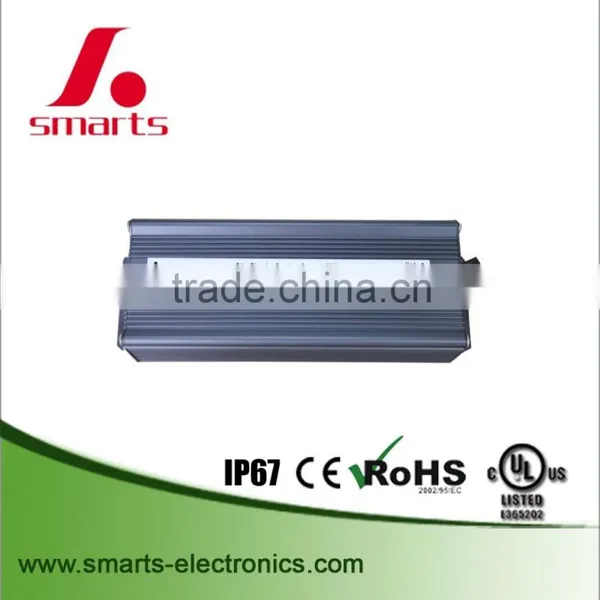

Single Output 60W Constant Current LED Driver
Features:
·Input range :90-135VAC / 170-265VAC
oupout range: 15-30VDC @2000mA 60W
·Built-in PFC function
·Efficiency > 84% / PF>0.9
·Protections:Short circuit/over Voltage
·Fully isolated Aluminum housing
·Easy installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
·Lifespan:(MTBF)50,000 hours
Protection:
Short Circuit: Hiccup mode, recovers automatically after fault condition
Over voltage: <270VAC 0r =270VAC
Environment parameter:
Working temperature: -40~+60℃
Working humidity:20~90%RH,non-condensing
Storage TEM.,Humidity: -40~+80℃,10~95%RH
efficient: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Notes:
1. All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and25℃of ambient temperature
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pairwire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
Product parameters:
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working. Temp |
Protection grade |
SMT-120-0500CT |
90-135V/170-265v |
47~63Hz |
70-120V |
500mA |
60W |
-40~50°C |
IP67 |
SMT-086-0700CT |
90-135V/170-265v |
47~63Hz |
45-86V |
700mA |
60W |
-40~50°C |
IP67 |
SMT-070-0900CT |
90-135V/170-265v |
47~63Hz |
35-70V |
900mA |
63W |
-40~50°C |
IP67 |
SMT-060-1050CT |
90-135V/170-265v |
47~63Hz |
20-60V |
1050A |
63W |
-40~50°C |
IP67 |
| SMT-050-1200CT | 90-135V/170-265v | 47~63Hz | 30-50V | 1200mA | 60W | -40~50°C | IP67 |
| SMT-043-1400CT | 90-135V/170-265v | 47~63Hz | 18-43V | 1400mA | 60W | -40~50°C | IP67 |
SMT-030-2000CT |
90-135V/170-265v |
47~63Hz |
15-30V |
1200mA |
60W |
-40~50°C |
IP67 |
| SMT-025-2400CT | 90-135V/170-265v | 47~63Hz | 10-25v | 2400mA | 60W | -40~50°C | IP67 |
60w trial dimmable led driver 2400mA Constant Current

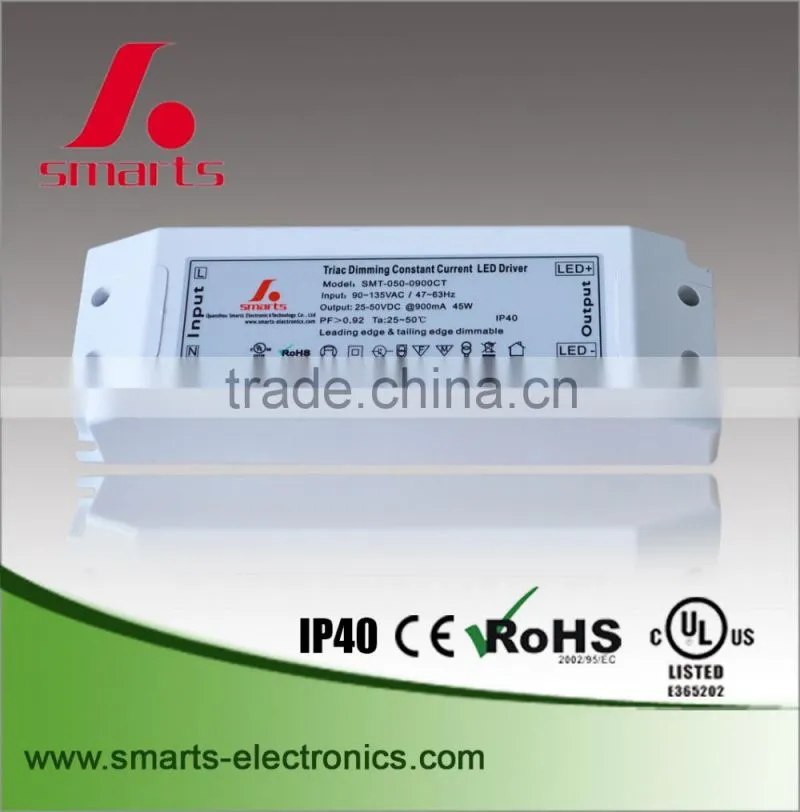

triac dimmable 900mA constant current led driver
