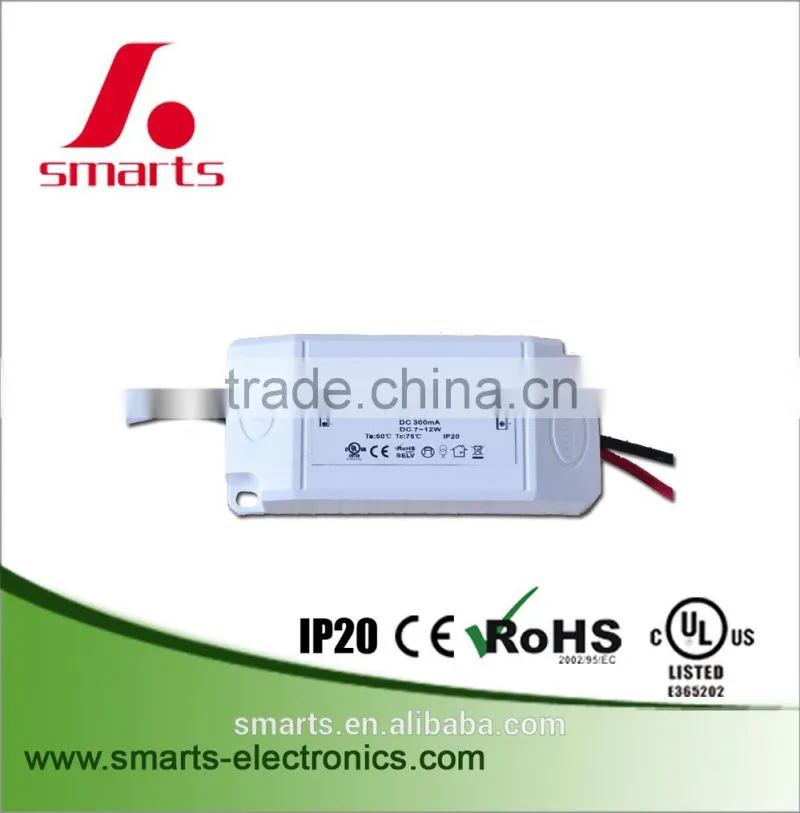

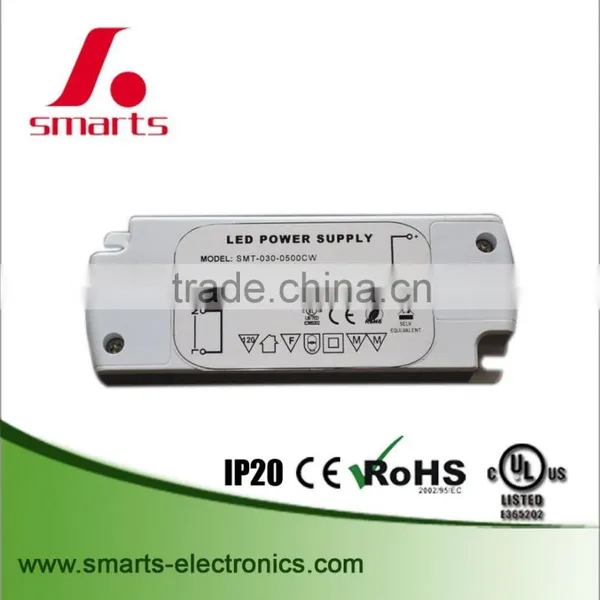

CE UL Rohs approved 350ma power supply unit 16w constant current led driver
• 2 years warranty
(We promise to replace new ones to you if there is any defective happen during the warranty period)
Description:
• input: 100~265vAC, 47~63Hz
• output current: 300,350,500,700,900mA
• power: 16watt
Size: 115*45*28mm
• High efficiency,save energy ,protected environment
• High stability and low ripple, increase light efficiency and decrease light attenuation
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant voltage
• Passed high ,low temperature and waterproof testing.
• Integrity protection,over loading, over voltage ,over current
• 8Hrs and 100% full load burn-in test.
Environment:
• Working Temperature : -30 ~ +60°C
• Working Humidity : 20 ~ 90% RH non-condensing
• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
• Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters:
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (v) |
Output Current (A) |
Output power (W) |
Working Temp. |
Protection grade |
SMT-060-0300CW |
100-265v |
47~63Hz |
40~60VDC |
300mA |
18W |
-25~50°C |
IP20 |
SMT-060-0320CW |
100-265v |
47~63Hz |
45~60VDC |
320mA |
19W |
-25~50°C |
IP20 |
SMT-050-0350CW |
100-265v |
47~63Hz |
30~50VDC |
350 mA |
16W |
-25~50°C |
IP20 |
SMT-060-0350CW |
100-265v |
47~63Hz |
30~60VDC |
350mA |
20W |
-25~50°C |
IP20 |
SMT-050-0300CW |
100-265v |
47~63Hz |
25~50VDC |
300mA |
15W |
-25~50°C |
IP20 |
SMT-025-0700CW |
100-265v |
47~63Hz |
15~26VDC |
700mA |
17.5W |
-25~50°C |
IP20 |
SMT-030-0700CW |
100-265v |
47~63Hz |
20-30vDC |
700mA |
21W |
-25~50°C |
IP20 |
SMT-020-0500CW |
100-265v |
47~63Hz |
10~20VDC |
500mA |
18W |
-25~50°C |
IP20 |
SMT-080-0250CW |
100-265v |
47~63Hz |
60~80VDC |
250mA |
20W |
-25~50°C |
IP20 |
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
Production Certificate

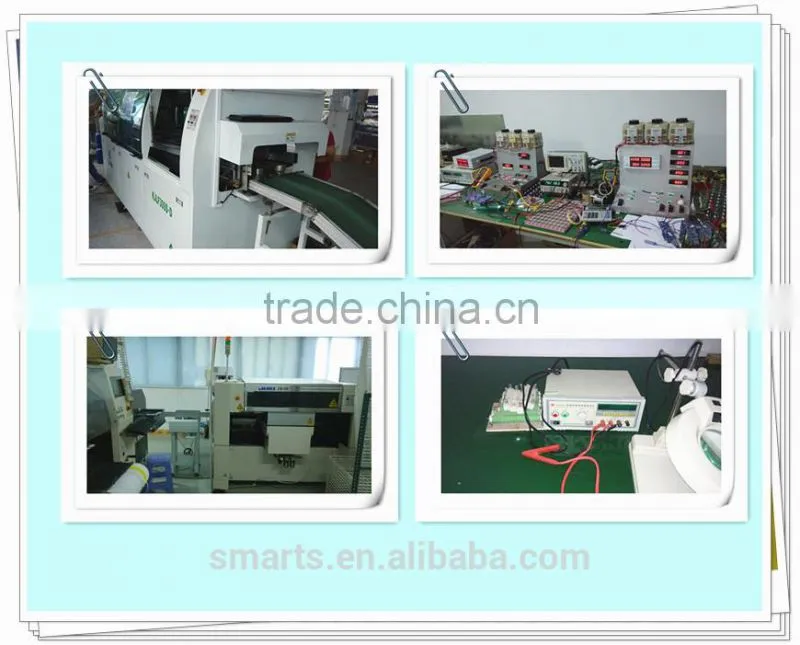

Equipments

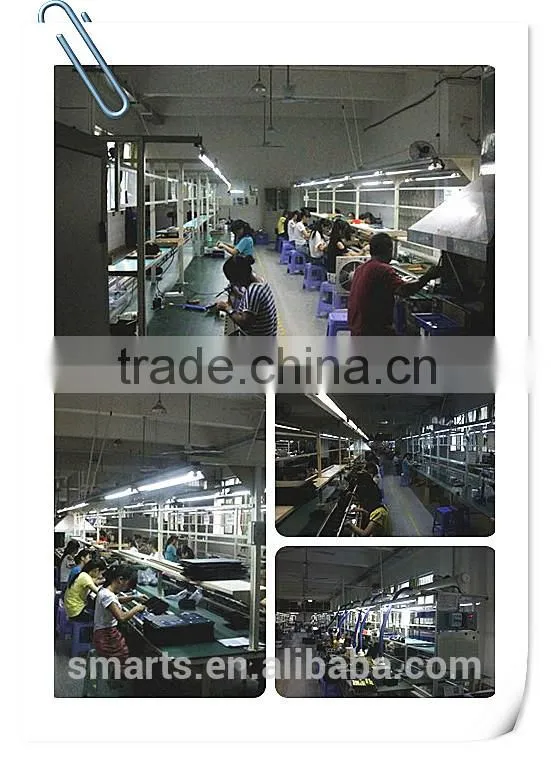

Factory
CE UL Rohs approved constant current 350ma drive
