Product Details
Place of Origin: | Fujian, China | Brand Name: | SMARTS | Model Number: | SMT-018-0350CW |
Output Power: | Other, 6W | Output Type: | Single | Input Voltage: | Other, 100-265vAC |
Output Voltage: | 10-18vDC | Output Frequency: | 47-63Hz | Output Current: | 350mA |
Product Description

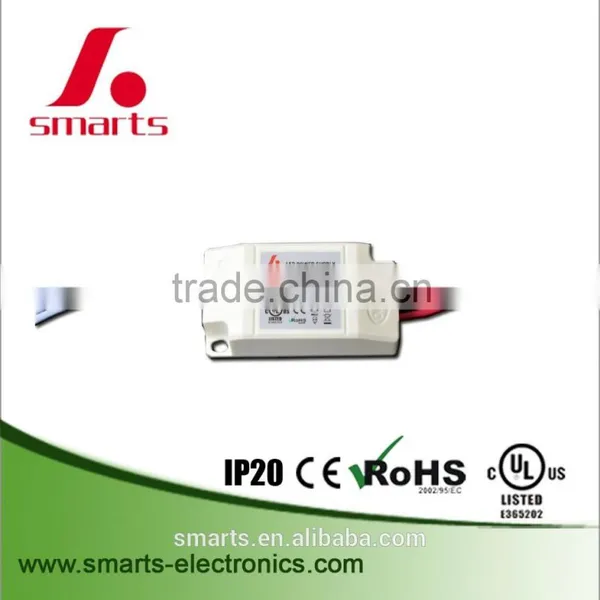

plastic housing light transformer 18v 350ma
Model | Input voltage (vAC) | Working Frequency (Hz) | Output voltage (vDC) | Output Current | power (Watt) | Working Temp. | Protection grade |
SMT-018-0350CW | 100-265vAC | 47~63Hz | 10~18V | 350mA | 6W | -40~50°C | IP20 |
SMT-026-0350CW | 100-265vAC | 47-63Hz | 15~26V | 350mA | 9W | -40~50 °C | IP20 |
SMT-032-0350CW |
100-265vAC
| 47~63Hz | 20~32V | 350mA | 11W | -40~50°C | IP20 |
- pack weight: 8kg/ctn
- produt cord:connecting terminal(IP20) / 22AWG*20CM
- CE, UL&CUL, ROHS approval
- 2 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current.
- Integrity protection,over loading, over voltage ,over current.
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Environment:
- Working Temperature : -30 ~ +60°C
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Working Humidity : 20 ~ 90% RH non-condensing
Safety:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Withstand Voltage : I/P-O/P: 3000KVAC
N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
plastic housing light transformer 18v 350ma | |||||||
39g/pcs | 8kg/ctn | 200pcs | 299*224*176 mm |
|
