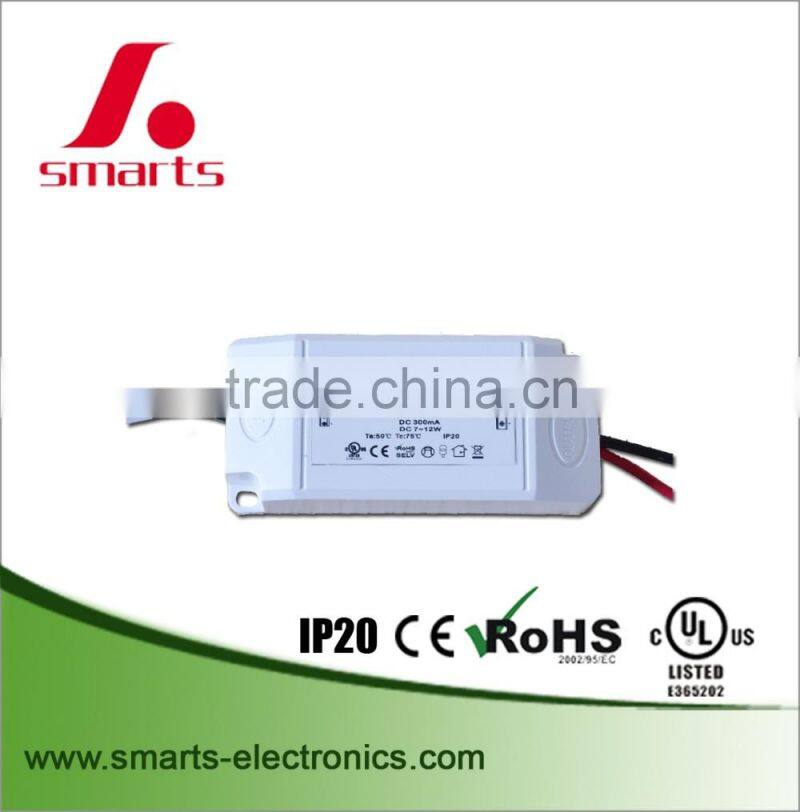

led driver 12-18w 300ma No flicker no niose led constant current driver
Specifications:
1. Input voltage.:100~265vAC,47~63Hz 18w
2. output current:300ma,320ma,350ma, 500mA,700ma,900ma
3. Efficiency>82%
4. Warranty: 2 years
5. CE,UL,ROHS approval
6. product size: 140*45*28mm
7. Net weight: 90g/pc
8. Case material:plastic
9. Waterproof rate: IP20
10.CE, UL&CUL, ROHS approval
Features:
- Case material:plastic
- Cooling by nature.
- 100% full load burn-in test
- High reliability designing solution
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- integrity protection,over loading, over voltage ,over current
- 8Hrs and 100% full load burn-in test.
Environment:
- Working Temperature : -30 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes.
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications:
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
Product parameters:
Model |
Input voltage (vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working Temp. |
Protection grade |
SMT-060-0300CW |
100-265vAC |
47~63Hz |
40-60V |
300mA |
18W |
-25~50°C |
IP20 |
SMT-060-0320CW |
100-265vAC |
47-63Hz |
45~60V |
320mA |
19W |
-25~50°C |
IP20 |

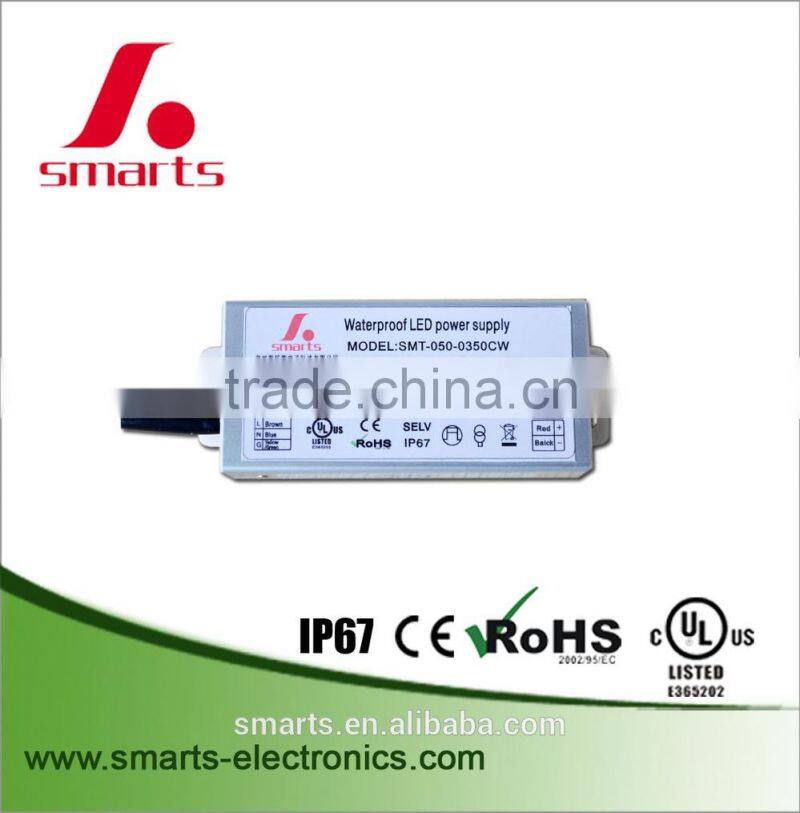

SMT-050-0350CW |
100-265vAC |
47~63Hz |
30~50V |
350mA |
16W |
-25~50°C |
IP20 |
SMT-030-0700CW |
100-265vAC | 47-63Hz | 20-30V | 700mA | 21W | -25~50°C | IP20 |
SMT-020-0900CW |
100-265vAC | 47-63Hz | 10-20V | 900mA | 18W | -25~50°C | IP20 |
led driver 12-18w 300ma No flicker no niose led constant current driver
|
IP67 constant volatge led drivers
|

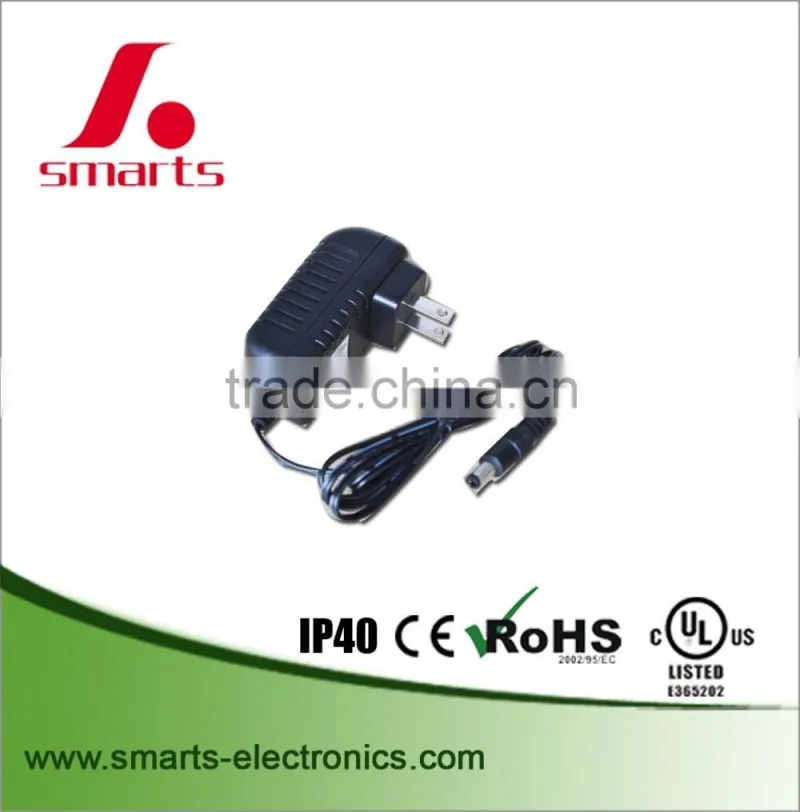

AC-DC adapter
|
switching power supplies
|
|
triac dimmable led drivers |
0-10v dimmable led drivers
|
DALI dimmable led drivers
|
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
Our service
1. Trade term: EXW,FOB..(Optional)
2. Port: Xiamen
3. MOQ: 1PCS
4. Sample availability: Yes
5. Payment: T/T, Western union, Paypal, Trade assurance
6. shipment: Ocean or air transportation (optional)
7. Normal lead time: 7 working days for samples, 15 working days for mass production.
8. Payment condition: All are paid before production or 30% deposit and 70% before delivery (optional)
9. Inspection: 100% QC inspection before shipping
10. Packing: All are single packed with white box, and then packed in a carton box.
11. Service: Online 12 hours, OEM design & OEM packing.
12. guarantee: we promise to replace a new one to you if there is any defective happen during warranty time.
We will be happy to provide you quotation upon receipt of your detailed requirement!
******Waiting for your Inquiry and Contact******
