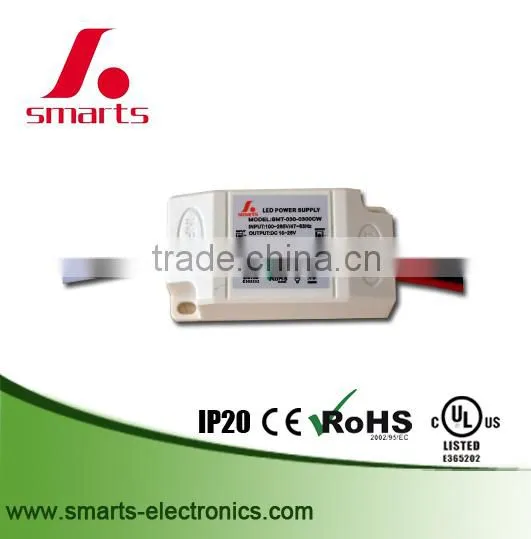

(8-12)x1w led driver 240ma 250ma 300mA led bulb driver
Description:
- Input voltage.:100~265vAC
- Efficiency>82%
- Warranty: 2 years
- CE,UL,ROHS approval
- product size: 80*36*34mm
- Net weight: 90g/pc
- Case material:plastic
- Waterproof rate: IP20
- CE, UL&CUL, ROHS approval
Features:
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current
- 100% full load burn-in test.
Environment:
- Working Temperature : -30 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- MTBF : 50Khrs min. MIL-HDBK-217F (25°C )
Product parameters:
Model |
Input voltage (vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working Temp |
Protection grade |
SMT-040-0300CW |
100-265vAC |
47~63Hz |
20-40V |
300mA |
12W |
-25~50°C |
IP20 |
SMT-060-0320CW |
100-265vAC |
47-63Hz |
45~60V |
320mA |
19W |
-25~50°C |
IP20 |
SMT-050-0350CW |
100-265vAC |
47~63Hz |
30~50V |
350mA |
16W |
-25~50°C |
IP20 |
SMT-030-0700CW |
100-265vAC | 47-63Hz | 20-30V | 700mA | 21W | -25~50°C | IP20 |
SMT-020-0900CW |
100-265vAC | 47-63Hz | 10-20V | 900mA | 18W | -25~50°C | IP20 |
SMT-025-0700CW |
100-265VAC | 47-63HZ | 12-25V | 700MA | 17.5W | -25~50℃ | IP20 |
SMT-050-0300CW |
100-265VAC | 47-63HZ | 25-50V | 300MA | 15W | -25~50℃ | IP20 |
Applications:
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
Can you help me fix my own power cords???
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
constant voltage LED drivers
TRIAC/ 0-10V/ PWM/ DALI dimmable constant voltage & current led drivers
enclosure power supplies
US UK EU wall type & desktop type power adapter
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
Our service
- We are UL/cUL audited LED drivers/power supplies enterprise in China.
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. it will guarantee your order 100% safe.
- Price is negotiable if you have large quantity demand.
- 100% QC inspection Before Shipping.
- Best Quality & Best Service with Competitive price.
- Shipping will be the most economical for you and freight cost is informed in advance for your consideration. decision for the shipping terms will be made according to your requirements.
- Samples will be ready within 7 working days.
- We have our engineer team, if you have any question about your LED applications, let us know freely,we will give you the best solution.
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
- OEM design & OEM packing welcom.
- Samples will be ready within 7 working days.
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
