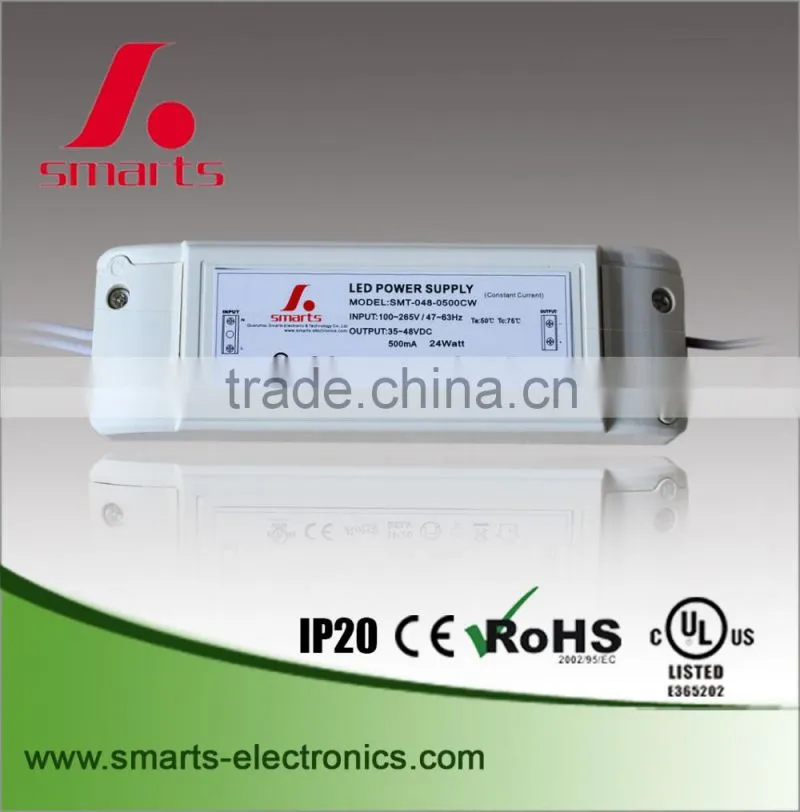

high quality constant current 24w led driver 48v 500ma
Product parameters
Model |
Input voltage (vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current |
power (Watt) |
Working Temp. |
Protection grade |
SMT-040-0500CW |
100-265vAC | 47-63Hz | 25-40V | 500mA | 20W | -25~50°C | IP20 |
SMT-048-0500CW |
100-265vAC | 47-63Hz | 35-48V | 500mA | 24W | -25~50°C | IP20 |
SMT-030-0700CW |
100-265vAC | 47-63Hz | 20-30V | 700mA | 21W | -25~50°C | IP20 |
SMT-036-0700CW |
100-265vAC | 47-63Hz | 25-36v | 70OmA | 25W | -25~50°C | IP20 |
| SMT-024-1050CW |
100-265vAC
|
47-63Hz
|
10-24v |
1050mA |
25W |
25~50°C
|
IP20 |
Specifications
- LED driver 500mA constant current power supply
- input:100-265vAC / 47-63HZ
- output:DC 35-48V @500mA 24W
- cover material: plastic housing
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage over current
- 8Hrs and 100% full load burn-in test.
- 2 years warranty
Environment
- Working Temperature : -40 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications:
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
What's the other type power supply do you have???
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
IP67 constant volatge led drivers
|
AC-DC adapter
|
switching power supplies
|
|
triac dimmable led drivers |
0-10v dimmable led drivers
|
DALI dimmable led drivers
|
| high quality constant current 24w led driver 48v 500ma | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 90g | 9 kg | 50 pcs | 299*224*176 mm |
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
