500ma 30w plastic case constant current dali dimmable led driver
Specification CE UL/cUL RoHS SELV IP67
Model |
SMT-086-0350CM |
SMT-060-0500CM |
SMT-050-0700CM |
SMT-036-0900CM |
|
|
Output |
DC Voltage |
50-80V |
35-60V |
20-50V |
20-36V |
|
Voltage Accuracy |
±0.3V |
|||||
Rated current |
0~350MA |
0~500MA |
0~700MA |
0~900MA |
|
|
Rated power |
28W |
30W |
35W |
32W |
|
|
Input |
Voltage Range |
100-265VAC |
||||
Frequency Range |
47~63HZ |
|||||
Power Factor ( Typ.) |
PF≥0.95/220V |
|||||
Full Load Efficiency(Typ.) |
>86%(110,220V) |
>86%(110,220V) |
>88%(110,220V) |
>88%(110,220V) |
|
|
AC Current(Typ.) |
0.960A(110,220V) |
1.042A(110,220V) |
1.031A(110,220V) |
1.035A(110,220V) |
|
|
Leakage current |
<0.35mA/220VAC |
|||||
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
Over Current |
≤1.4*Iout |
|||||
Overtemperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environment |
Working TEMP. |
-40~+50℃ |
||||
Working Humidity |
20~95%RH,non-condensing |
|||||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||||
efficient |
±0.03%/℃(0~50℃) |
|||||
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP20 |
||||
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|||||
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≥50%load) |
|||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) |
|||||
Others |
Weight |
0.5Kg |
||||
Size |
180*60*34mm(L*W*H) |
|||||
packing |
355*215*215mm/20pcs/CTN 185*65*45 mm for inner box |
|||||
Notes |
1.All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
30W DALI dimmable driver Mechanical Specification :
- Input Rubber cable H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or Red with AC(N)
- Input with Live Wire(L) Neutral Wire (N)
- Output LED SEC (LED+),(LED-)
Signal Dimming (DA1), (DA2) DALI Non polar.
Dimming Operation :
- Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address
Derating Curve
- Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Dali dimming connecting diagram :

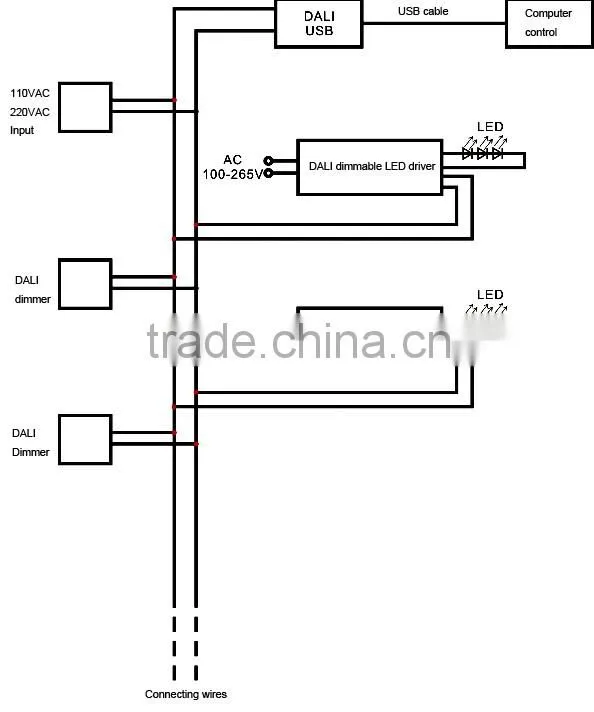

1. The first type :
2. The second type
