Home > Products > DALI dimmable led driver > ul waterproof ip67 12v 100w dali dimmable led driver

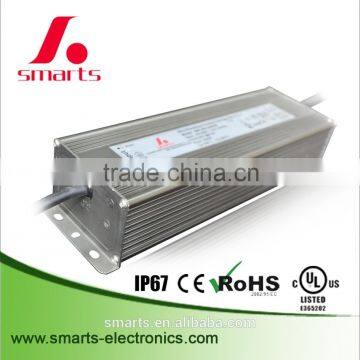

ul waterproof ip67 12v 100w dali dimmable led driver
- 30000 Piece / Pieces per Month
- xiamen
- Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | SMARTS | Model Number: | SMT-012-100VM |
Output Power: | Other, 100Watt | Output Type: | Single | Input Voltage: | Other, 100-265vAC/170-305vAV |
Output Voltage: | 12vDC | Output Frequency: | 47-63Hz | Output Current: | 8300mA |
Product Description
ul listed ip67 12v 100w led dimmable bulbs driver
Model | SMT-012-100VM | SMT-024-100VM | SMT-036-100VM | |
Output | DC Voltage | 12VDC | 24VDC | 36VDC |
Voltage Accuracy | ±0.5V | |||
Rated current | 0~8.33A | 0~4.16A | 0~2.77A | |
Rated power | 100W | 100W | 100W | |
Input | Voltage Range | 100-265VAC | ||
Frequency Range | 47~63HZ | |||
Power Factor ( Typ.) | PF>0.95/100V, 220V | |||
Full Load Efficiency(Typ.) | >88%(110,220V) | >88%(110,220V) | >88%(110,220V) | |
AC Current(Typ.) | 0.950A(110,220V) | 1.030A(110,220V) | 1.023A(110,220V) | |
Leakage current | <0.70mA/110, <0.72mA/220VAC | |||
Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||
Over Current | <1.4*I out | |||
Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | |||
Environment | Working TEMP. | -40~+50℃ | ||
Working Humidity | 20~95%RH,non-condensing | |||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | |||
efficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | |||
Safety&EMC | Safety standards | EN61347-1 EN61347-2-13, IP67 | ||
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | |||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (>50%load) | |||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) | |||
Others | Weight | 1.3Kg | ||
Size | 230*69*45mm(L*W*H) | |||
packing | 355*215*215mm/10pcs/CTN 240*70*50 mm for inner box | |||
Not es | 1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |

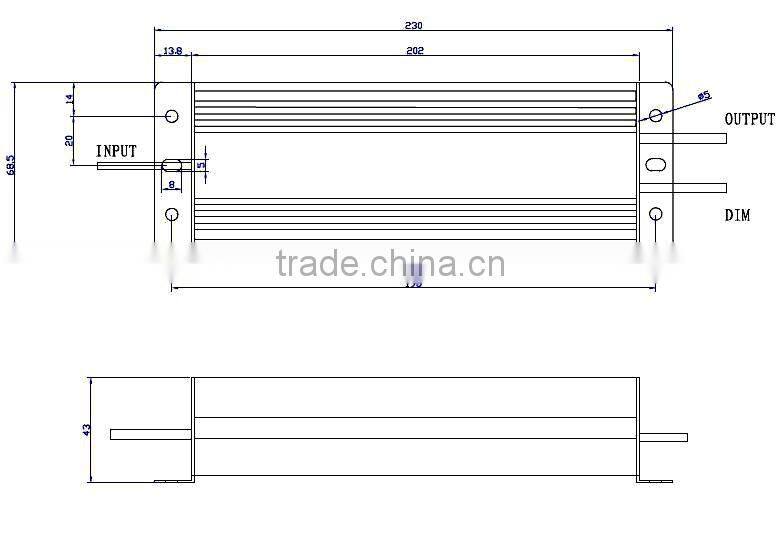

** Mechanical Specification
~~Input Rubber cable H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or White with AC(N)
~~Input with Live Wire(L) Neutral Wire (N)
~~Output LED SEC (LED+),(LED-)
~~Signal Dimming (DA1), (DA2)
**Dimming Operation
~~Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address

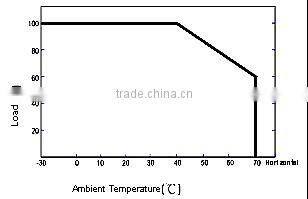

**Derating Curve
~~Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
** Wire connecting diagram

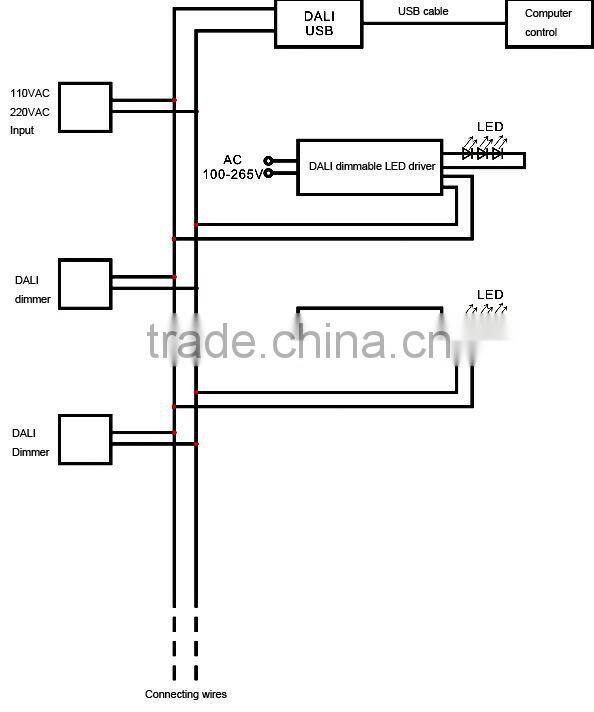

Connecting solution 1:

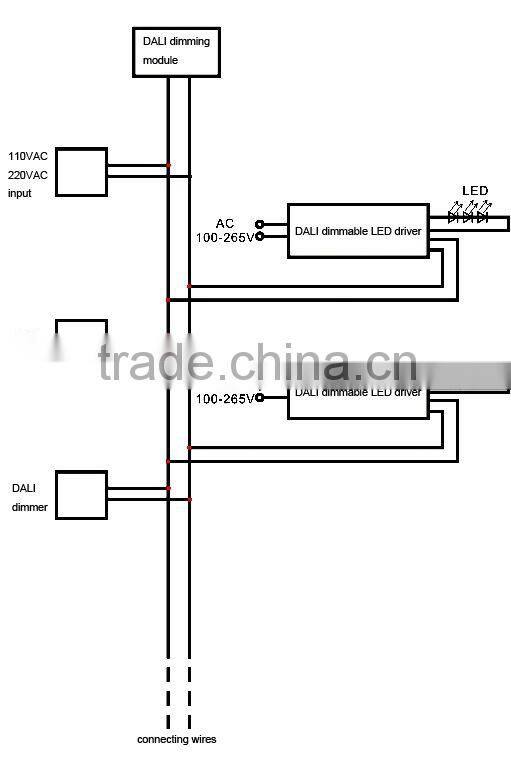

Connecting solution 2:
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
ul waterproof ip67 12v 100w dali dimmable led driver | |||||||
1.3kg/pcs | 15kg/ctn | 10pcs | 329*279*176 mm |
MOQ: 1 pcs Payment: Delivery: 7 working days for sample order,12 working days for 500pcs Shipping term: FedEx, DHL, UPS, TNT... Price: Get quote |
