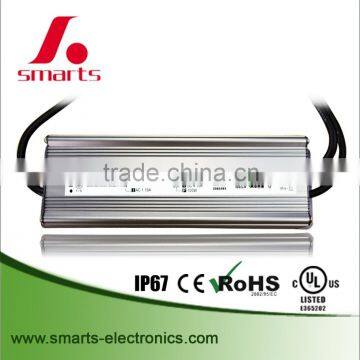

0-10v PWM dimming led driver CE FCC ETL 1400ma 100w led driver

What's the specifications of  0-10v PWM dimming led driver CE FCC ETL 1400ma 100w led driver?

1. Dimming type: 0-10v dimming led transformery; AC-DC Dimming led transformer
2. I/P:100~265V, 47~63Hz
3. Ambient temp.:-20 degree~40 degree full load
4. Efficiency > 88%
5. PFC> 0.91
6. size: 230*68*45mm
7. packing: 10pcs/ctn
8. RippleI & Noise (max.) : 150mVp-p
9. Voltage Tolerance : ±5%
10. Line Regulation : ±1%
11. Load Regulation : ±2%
12. Setup, Rise Time : 500ms, 120ms / 230VAC
13. 3 years warranty

(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

1. waterproof rate: IP67
2. High reliability, Dualiable operation.
3. Cooling by nature.
4. 100% full load burn-in test
5. Protections: Short circuit / Overload / Over voltage / Over temperature
6. Current Limit : ±5% rated output current
7. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover
8. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover
9. Over Temperature : 85°C±10°C

Environment:

1. Working Temperature : -25 ~ +50°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )

Applications:

Our products are widely used in various industries, such as

1. indoor LED illuminating lights,
2. LED Neon,
3. LED urban Decoration
4. LED Lighting Advertising,
5. LED Display,
6. Safety Protection Apparatus,
7. Telecommunications,
8. Networks,
9. Vehicle Lights, Controller Panels, etc.

waterproof/non-waterproof constant voltage led driver

triac dimmable led driver

0-10v/pwm dimmable led driver

encolsure power supply

Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail   website:

our team:

certifications:

CE, UL/CUL, ROHS approval.

factory & equipments view:

Our market:

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history

FAQ:

>Q1.             What's type power supply do you have?

Answer:      We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters

>Q2.             What's shipping mode can we choose?

Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method

>Q3.             What's the MOQ?

Answer:      Our MOQ is 500pcs, but we accept your trail order/small order, no problem.

>Q4.            What can you do if the product is broken?

Answer:      We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem

>Q5.             How about the protection of product?

Answer:      Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.

>Q6.              How about the transportation?

Answer:                         For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.

>Q7.              What's the Payment do you have?

Answer:       To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future
