Specifications
15 inch LCD Monitor CCTV monitorConnectors: VGA/ Audio/DC A2V
Regulations: RoHS, CE (EMC & LVD), FCC, C-TICK
Application Field:
SOHO Offices
Shooping Mall
School
Government Users.
VGA Solution Feature:
PC-RGB Input: VGA (15Pin D-Sub) x1
Audio Input: x1
Resolution: SXGA (1024x768)
15" 4:3 VGA Monitor With Audio Input
I. Specifications
| Model No. | AKA-1502MA | |
| Display | Screen Size | 15" 4:3 TFT Color LCD |
| Max. Resolution | XGA (1024x768) | |
| Pixel Pitch | 0.297 mm | |
| Brightness | 300cd/m² | |
| Contrast Ratio | 700:1 Typical | |
| Viewing Angle (U/D/L/R) | 75/60/75/75 | |
| Display Color | 16.2 Million | |
| Response Time | 8ms Typical | |
| Power Consumption | Approx. 15Watts | |
| Video System | NTSC / PAL | |
| Interface | Solution No. | VGA only |
| PC-RGB Input | VGA (15Pin D-Sub) x1 | |
| Audio Input (Option) | Stereo 3.5mm Input x1 | |
| DC 12V Input | 1 | |
| Source | VGA | |
| Multi Language | English, Chinese, French, German, Spanish, etc | |
| Audio | Built-in Speakers | 2 (option) |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desk Top Stand | |
| Circumstance | Operating Temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage Temperature | -20 ~ 60° C / -4 ~ 140° F | |
| Packing | Unit N.W./G.W. | Approx. 3KG/4KG |
| Gift Box Dimension | 395x150x380 mm (LxWxH ) | |
| 1x20' Container | Approx. 1100pcs | |
| Regulations | RoHs, FCC , CE, C-tick, and so on. | |
| *Specifications are subject to change without notice. | ||
II. Product Pictures For Reference

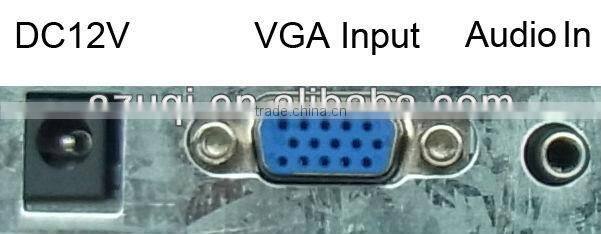

III. Interface (reference only):

IV. Company Overview and Certifications for Reference
V. More products for your choice
VI. Our Service
1. Inquiries would be replied within 48 hours
2. OEM/ODM service is available:
Silkpirnt OEM logo on the monitor; big quantities order would share customized gift box.
3. After-sale service:
All products have been strictly checked the quality and packed perfectly before shipping;
All products would share 1 year warranty after delivery according to our RMA policy;
4. Payment term:
T/T, L/C, Western Union
5. Delivery
We have strong relationship wth many express companies and logistic companies. And some of our fowarders as follows:

PS: Please send e-mail to us directly or chat online by trade manager for prompt reply.
