42 Inch High Resolution LCD Monitor

Specifications

42'' lcd monitor
1.Resolution:1920x1080
2.Connectors: DC 12V/S-Video/VGA/BNC/HDMI/YPbPr
3.Certficate of RoHs,CE,FCC,C-tick

 42 Inch High resolution LCD monitor





Specification
Model No.		AKA-4202MA
Display	Screen size	42" 16:9 TFT Color LED
	Max. Resolution	WXGA (1920x1080)
	Pixel Pitch	0.48 mm
	Brightness	500 cd/square meter
	Contrast ratio	1600:1 typical
	Viewing Angle(H /V)	178 degree / 178 degree
	Display color	16.7 Million
	Response Time	6.5ms(GTG)
	Power Consumption	Approx. 55 Watts
	Video system	NTSC / PAL
Interface	Solution No.	M6 ( Professional Style )
	Video 1 Input	CVBS Input(BNC type)x1
	Video 2 Input	CVBS Input(BNC type)x1
	Video 2 Output	CVBS Output(BNC type)x1
	PC-RGB Input	VGA (15Pin D-Sub)x 1
	Audio Input	Stereo 3.5mm input x1
	Audio Output	Stereo 3.5mm Output x1
	S-Video Input (Option)	1
	HDMI Input	1
	YPbPr Input	( BNC type) x3
	Power Supply	1(AC 100V~240V)
Features	Built in Comb Filters	3D
	Built in De-interlace	3D
	Source	PC / Video1 / Video2 / HDMI/YPbPr
	Multi-Language	English, Chinse,French ,German,
		Italian , Portuguese , Spanish
Audio	Built in Speakers	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desktop Stand
Circumstance	Operating Temperature	0°C ~ 50°C / 32°F~122°F
	Storage Temperature	­20°C~60°C / ­4°F~140°F
Packings	Unit N.W./G.W.	Approx. 14KG/15KG
	Gift Box Dimension	1180x150x685 mm (LxWxH)
Regulations	RoHs , FCC , CE , C-tick , and so on.



Interface for your reference :

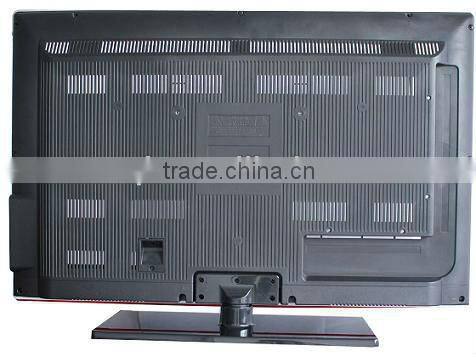

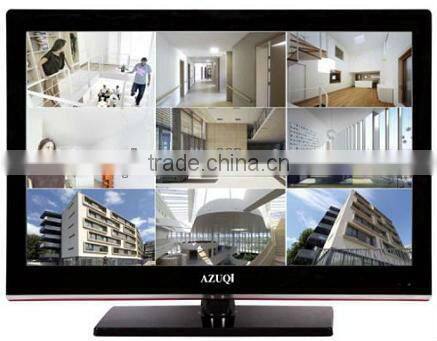

 Pictures for reference:
