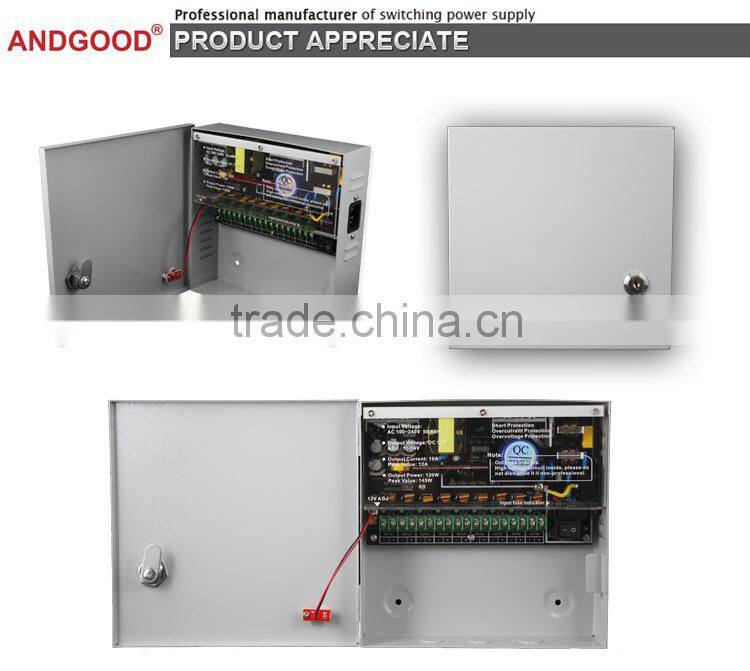

SIWD1210-09C 12v 10amp 9 Channels Cctv Power for Camera

Name: SIWD1210-09C 12v 10amp 9 Channels Cctv Power for Camera
Brand: ANDGOOD
SKU: 134442131
Availability: InStock

US$ 20 - 23 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ANDGOOD

Model Number:

SIWD1210-09C

Shenzhen Andgood Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ANDGOOD

Model Number SIWD1210-09C

Output Power 101 - 200W

Output Type Multiple

Input Voltage 220V

Output Voltage DC12V

Output Frequency 50~60HZ

Output Current 10amp

DC 12V 10A 9Channels CCTV Power Supply

1. Features

1. Low price and high reliable.

2. AC input power suitable for the world

3. High efficiency and wide operation temperature.

4. With short-circuit ,overload and over-voltage protection.

5. Wtih anode & cathode wrong connect protection.

6. 100% full-load buming test.

7. Applicable to all types of cctv systems

8. Use of efficient, environmental protection switching power supply circuit frame

9. Optimization of the shape and structure to facilitate the construction systems

10. Small ripple & noise -- video output signal more stable, clearly images

11. Splitter output -- by-pass failure to protect other equipment to work

2. Specification

Model	SIWD1203-04C	SIWD1205-09C	SIWD1210-09C	SIWD1212-16C
DC Output Voltage	12V	12V	12V	12V
AC Input Voltage Range	100-240V AC	100-240V AC	100-240V AC	100-240V AC
Rated Output Current	3A	5A	10A	12A
Channel	4CH	9CH	9CH	16CH
Output Current Range	0-3A	0-5A	0-10A	0-12A
Tripple and Noise	<50mVp-p	<50mVp-p	<50mVp-p	<50mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 15%	± 15%	± 15%	± 15%
DC Output Power	36W	60W	120W	144W
Efficiency	>85%	>85%	>85%	>85%
Overall Dimension	16316348mm	20316354mm	20020250mm	20530550mm
Weight	0.8kg	1.2kg	1.4kg	2.2kg
Input Current	0.7A/115V 0.3A/230V
AC Inrush Current	Cold-Start Current: <50A/230V
Leakage Current	<0.35mA/264VAC
Overload Protection	105%~150% Auto Recovery
Over Voltage Protection	105%~150% Auto Recovery
High Temperature Protection	…………
Start, Rise, Hold time	<30ms
Isolation Resistance	Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/50M Ohms
Working Temperature and Humidity	-20°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity	-30°C~+70°C, 10%~95%RH
Safety Standards	Meet CE EMC EN 61000-3-3:2008
