Product Details
Type: | Other, Electrocardiograph, Examination Therapy Equipments | Brand Name: | Ortmed or OEM | Model Number: | Three-Channel ECG |
Place of Origin: | Hebei, China |
Product Description
Three-Channel ECG
key Specification Date:
Mode No. | ECG-8903/ECG-8903A |
Display | 3.5”/5.1” backlit LCD |
Lead | Standard 12 leads |
Acquisition mode | 12 lead simultaneously |
Calibration voltage | 1 mV±1% |
Sensitivity | 2.5,5,10,20mm/mv manual or auto |
Time constant | >3.2s |
Noise Level | >15μVp-p |
Input impedance | >50M Ω |
Input circuit current | ≥0.1μA |
Patient leakage current | ≥10μA |
Pacemaker pulse protection | Yes |
Frequency response | 0.05Hz-150Hz |
Common mode rejection ration | >100Db |
AC filter | 50/60 Hz |
Baseline drift filter | 0.05Hz/0.15Hz/0.25Hz/0.5Hz |
Muscle filter | 25Hz/35Hz/45Hz |
Lowpass filter | 150Hz/100Hz/75Hz |
Recorder mode | Manual/Auto |
Rhythm lead | Any lead selectable |
Serial port | RS232×1 |
LAN port | IEEE802.3.10 BASE-T |
USB port | N/A |
Built – in storage | ≥25 cases |
Safety type | IEC I class,CF type |
Power input | 100-240V universal,50/60Hz |
Battery pack | Li-ion rechargeable,2000mAH |
Recorder | Thermal dot array |
Record paper | 63mm×20m or 30m |
Conformity | CE mark for 93/42/EEC |
Product Description:

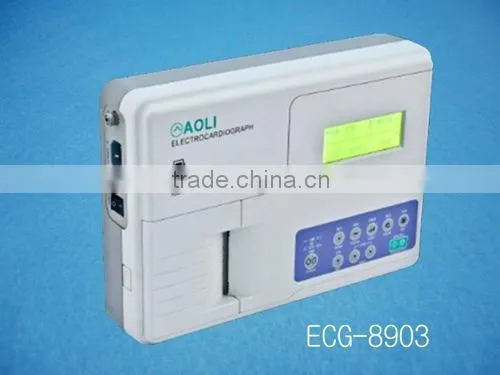

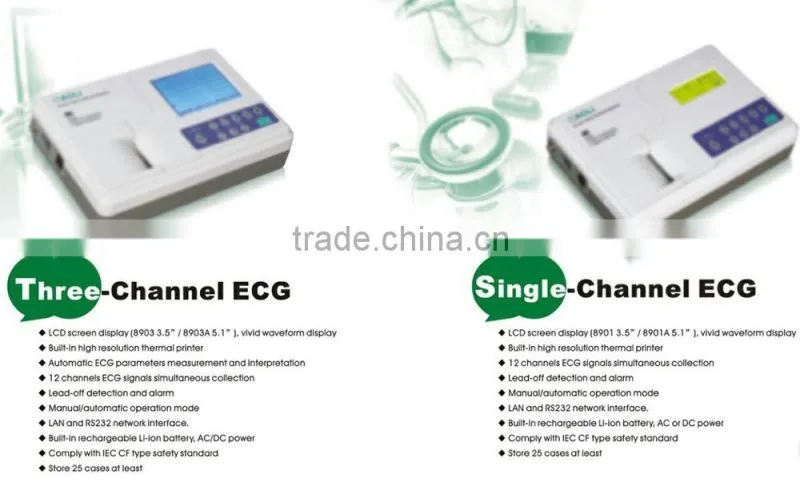

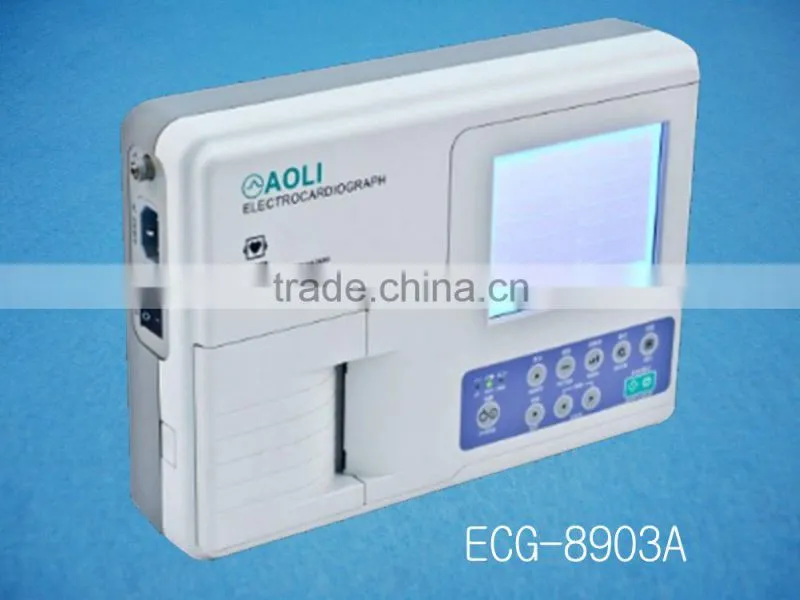

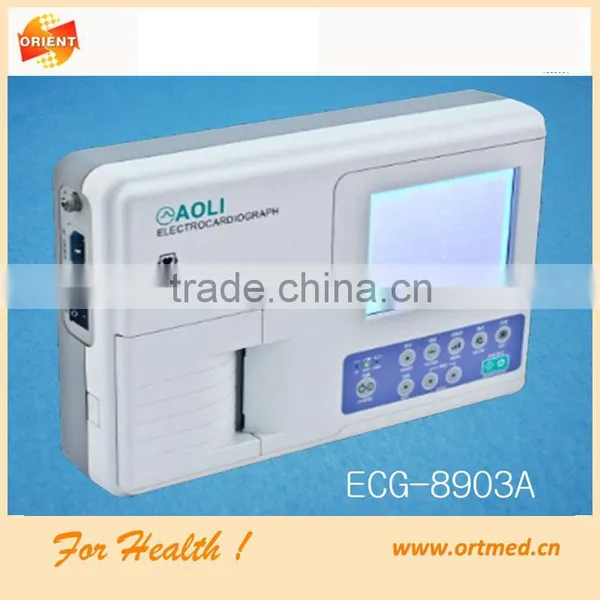

- 3- Channel(8903 3.5’’/8903A 5.1”) Electrocardiograph
- Digital design, LCD screen displays Chinese/English operation menu and ECG waveforms.
- 12 channels ECG signals simultaneous collection.
- Floating, defibrillation circuit protection and pacemaker pulse system
- Stepper motor, stable system and durable to use
- LAN and RS232 network interface.
- Manual/automatic operation mode and automatic functions
- Advanced ECG parameters detection and automatic analysis function.
- Comply with IEC CF type safety standard, AC or DC power
- Record: 3+1R , automatic / manual / single channel
- Store 25 cases at least
More kinds of ECG

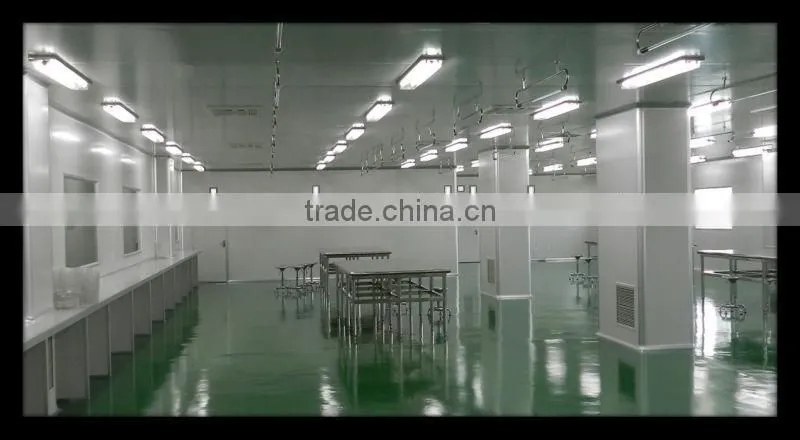

Disinfection Workshop
