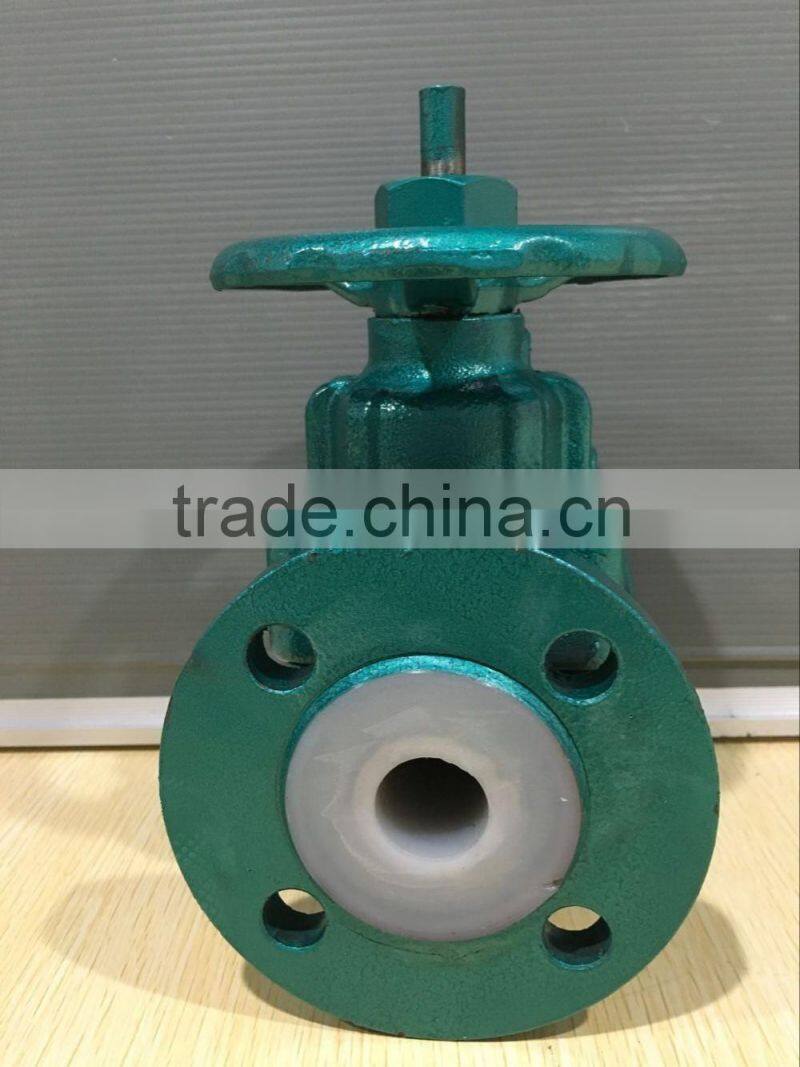

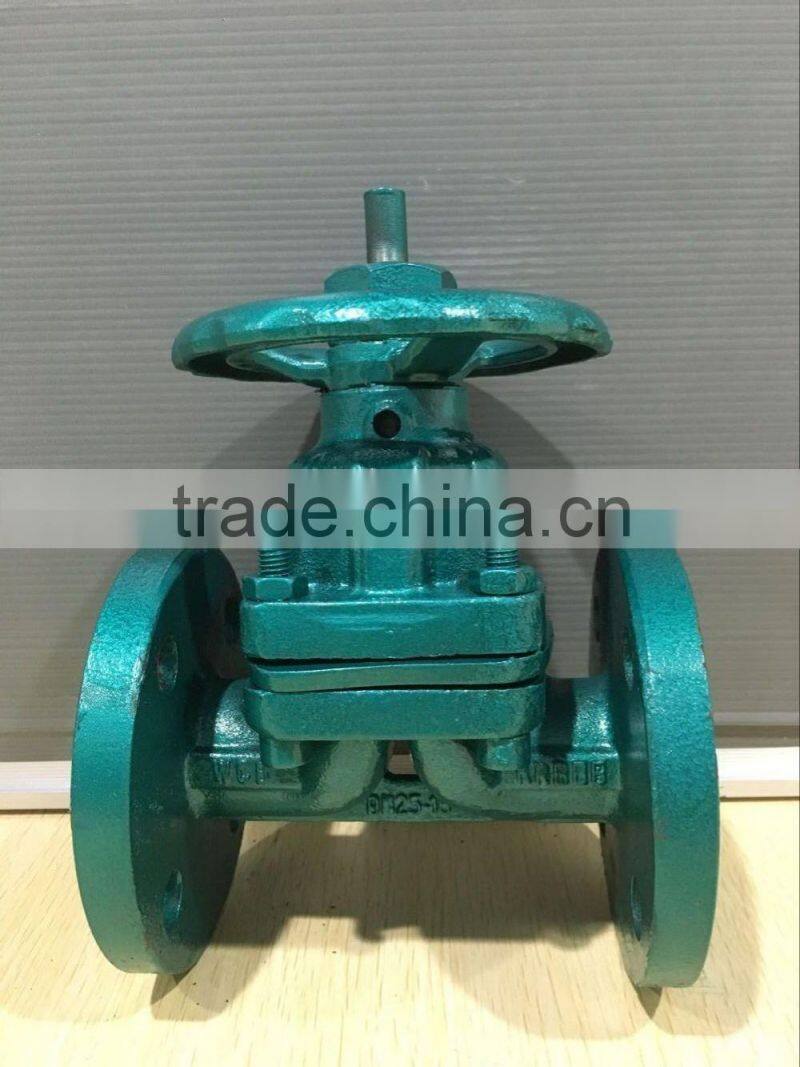

PTFE lined Chemical membrane valve
1.Feature:
1.Chemical membrane valves are used on shut-off and throttling service for liquids, slurries and vacuum/gas.

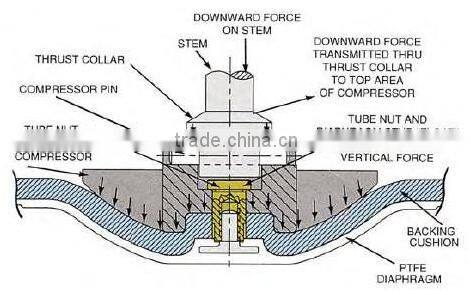

2.The seal is achieved by a flexible membrane, usually elastomer, and possibly reinforced with a metal part. The membrane is tensed by the effect of a stem/compressor with lineal movement until contact is made against the seal of the body.
3.The operating parts of the diaphragm valve are isolated from the flow. This makes this valve suitable for viscous flows and also hazardous, abrasive and corrosive flows as its sealing system avoids any contamination towards or from the environment.
4.Chemical membrane valves are available in a wide variety of metals, solid plastics, plastic, rubber and glass linings. They are well suited to the handling of multiple chemical applications both clear fluids as well as slurries.
5.The Chemical membrane valve has an extended use for applications at low pressures and slurry fluid where most other kinds of valves corrode or become obstructed.
6.It is a quick opening valve.
2.DN&PN:
Diameter (mm):DN15-DN300
Pressure(MPa):1.0MPa~1.6MPa
3.Diaphragm material:
Buna N (NBR), Butyl (CIIR), Ethylene Propylene Rubber (EPDM), Hypalon® (CSM), Natural Rubber (NR), Neoprene (CR), PTFE and Viton® (FKM).

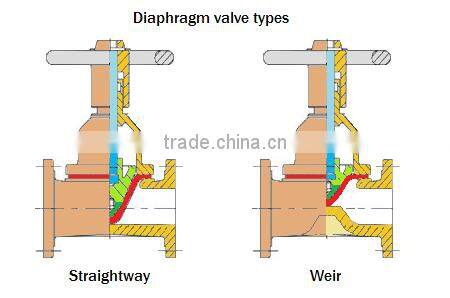

4.There are two types of diaphragm valves:
Weir: The Weir Diaphragm valve can be used for either off/on and throttling services
Straightway: named also Straight-Thru is only used for on/off services.
1.Packing: carton , plywood cases
2.Shipment:Within 20days after your po.
1.Best price with high quality,
2.18 months Guarantee Period.
3.The standard could be ANSI,DIN,GB,ISO,GOST,BS and so on.
1.More than 40 years Professional Experience.
2.The sample of material will be preserved more than 10 years.
3.We have obtained safety approval of API,CE,ISO.
1.Standard.
2.Size.
3.Material .
4.Connection type.
5.Medium.
6.Temperature.
