Home > Products > New Products > clamped water diaphragm sanitary control valve

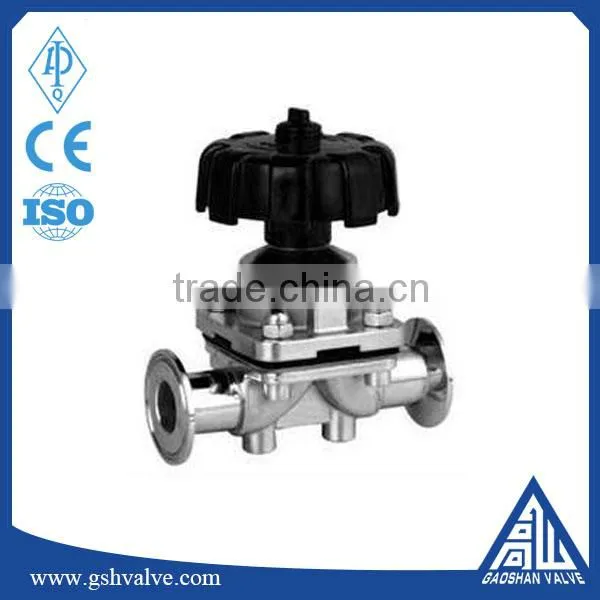

clamped water diaphragm sanitary control valve
- 8000 Piece / Pieces per Month
- shanghai/qingdao
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Diaphragm | Pressure: | Medium Pressure |
Power: | Manual | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | dn25-100 | Place of Origin: | Henan, China |
Model Number: | diaphragm valve | Brand Name: | Gaoshan | Application: | General |
Product Description
clamped water diaphragm sanitary control valve
1) water diaphragm valve Specification: DN25-100, 1"-4"
2) water diaphragm valve Standard: DIN, SMS, ISO, 3A
3) Material: Stainless steel 304, 316L
4) Applications: Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
5) Working principle: Manual operation or driving device operation
6) Manual operation: Pulling handle, Multi-position handle
7) Pneumatic device: Normally closed, normally opened, opened and closed by two air flues separately
8). ISO 9001:2008,,EN 10204:2004 Certificate 3.1,OEM is welcome, Main supplier of
Product Name: | clamped water diaphragm sanitary control valve |
Valve Body Material: | SS316L |
Seal Material: | PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
Max. Working Pressure: | 10Bar |
Max. Working Temperature: | 120 degree C |
Availably size: | DN25-DN100 |
Availably connection: | Clamp/weld/thread/special connection |
Operated: | Manual,Pneumatic |
Availably structure: | Straight, tee, U-type, tank bottom |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
