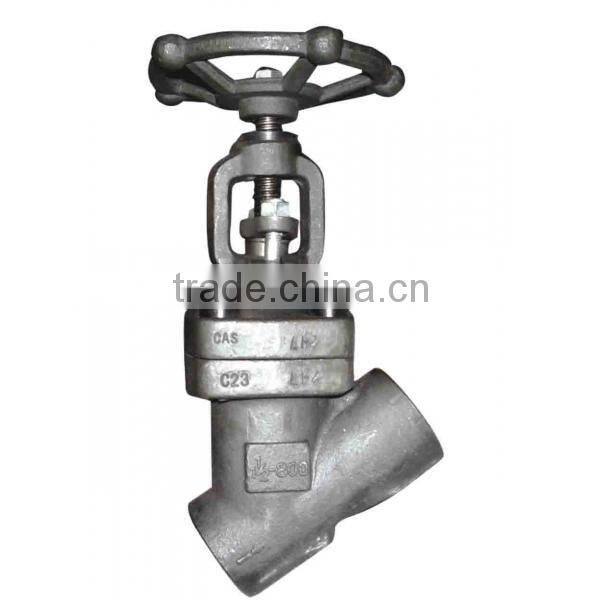

welding forged steel Y type globe valve
- shanghai / tianjin / qingdao
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Stop | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Forged | Temperature of Media | Medium Temperature | |
| Media | Other, water,oil,steam, etc. | Port Size | 1/4"-3" | |
| Place of Origin | Henan, China | Model Number | Globe Valve | |
| Brand Name | Gaoshan | Application | General |
Product Description
welding forged steel Y type globe valve
1.Brief Description:
1).Material:Forged steel
2).Size:1/4"-3"
3).Applicable Medium:water,oil,steam, etc.
4) Certificate: API,ISO
5).Type:Y type globe Valve
2 Main parts material
1.Body:Forged steel/ Ductile Cast Iron/ Stainless Steel/ Carbon Steeletc.
2.Stem: Zinc Plated Steel/ Stainless Steel/ 2Cr13 stainless steel etc.
3 Product performance specification
| nominal pressure(Mpa) | Shell test(Mpa) | Sealing test(Mpa) | Suitable temp | Suitable madium |
| 1.6 | 2.4 | 1.76 | -29~+425°C | water,oil,steam, etc. |
| 2.5 | 3.75 | 2.75 | ||
| 4.0 | 6.0 | 4.4 |
4 Advantage
1). Simple structure,manufacture and maintenance more convenient.
2).Working stroke is small,opening and closing time is short.
3).Good sealing,sealing surface friction between the small,long service life.
1.Packing: plywood cases
2.Shipment: Within 20days after your po.
1.Good quality and low price.
2. free sample
3.Good after-sale service.
4.Bring the finest goods to customer is our ultimate goal.
5.Products are exported to various countries.
1. professional manufacturer
2. More than 40 years Professional Experience
3. process of producing and checking
4.high reputation
