Home > Industrial Equipment & Components > Valve > Ball Valve > DIN Standard Stainless Steel Internal Thread Globe Valve

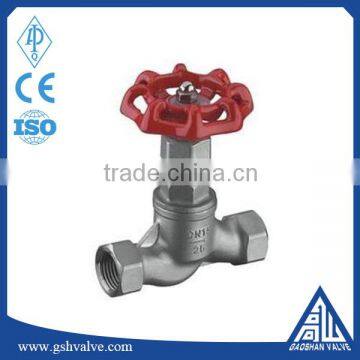

DIN Standard Stainless Steel Internal Thread Globe Valve

Name: DIN Standard Stainless Steel Internal Thread Globe Valve
Brand: Gaoshan
SKU: 134429879
Availability: InStock

Zhengzhou Gaoshan Valve Co., Ltd.

DIN Standard Stainless Steel Internal Thread Globe Valve thumbnail-1

DIN Standard Stainless Steel Internal Thread Globe Valve thumbnail-2

DIN Standard Stainless Steel Internal Thread Globe Valve thumbnail-3

DIN Standard Stainless Steel Internal Thread Globe Valve thumbnail-4

DIN Standard Stainless Steel Internal Thread Globe Valve thumbnail-5

DIN Standard Stainless Steel Internal Thread Globe Valve photo-1

DIN Standard Stainless Steel Internal Thread Globe Valve photo-2

DIN Standard Stainless Steel Internal Thread Globe Valve photo-3

DIN Standard Stainless Steel Internal Thread Globe Valve photo-4

DIN Standard Stainless Steel Internal Thread Globe Valve photo-5

US$ 50 - 850 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Stop

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Stop

Pressure Medium Pressure

Power Manual

Material Other, Stainless Steel, CF8M

Temperature of Media Medium Temperature

Media Other, gas/oil/water

Port Size DN15-DN100

Place of Origin Henan, China

Brand Name Gaoshan

Application General

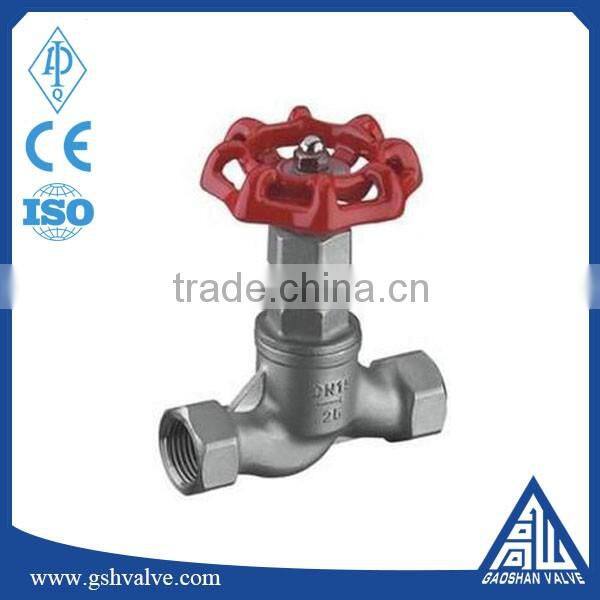

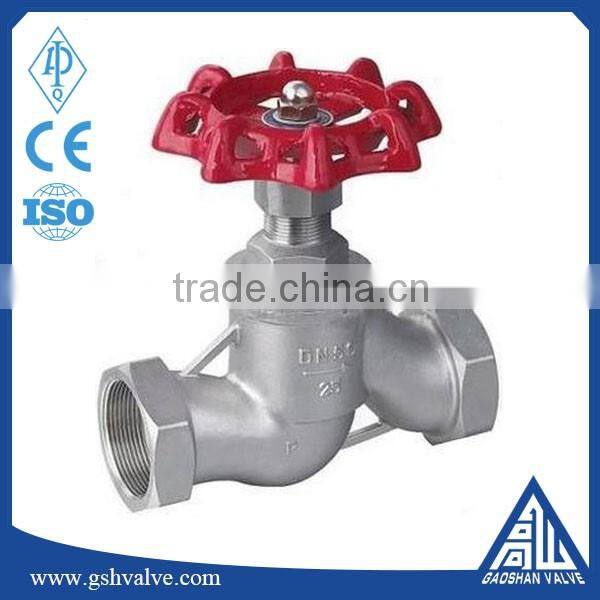

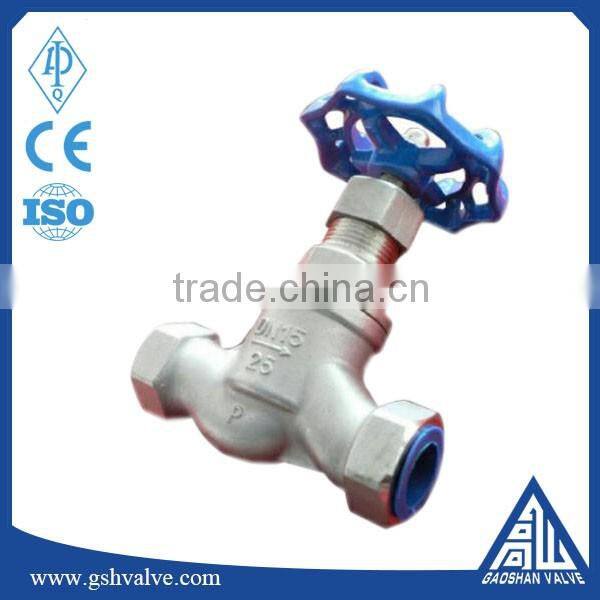

DIN Standard Stainless steel internal thread globe valve

Structure features:

1.Turn on little can reach the flux.

2.It can be installed by any position.

3.Reasonable structure good rigidrty and sealing.

4. No rub betueen disc sealing and seat sealing,when open and close the valve,so use long time.

5.Widely used at water,steam,oil's pipelire in systemsof petroleum,chemical,fire power,electric

etc to connect or cut off the flow.Chang the structure of disc can adjust flow.

Technical Data:

Nominal Diameter	DN(mm)15-100
Nominal Pressure	PN(Mpa)1.0-PN10
Testing Pressure	PN(Mpa):Shell:1.5-15 Sealing:1.1-11
Operation Temperature	-30°C-260°C
Flanges	DIN,BS,ANSI,etc
Application	HVAC,Water Supply&Sewage,Food&Beverage. Chemical/petrochemical/processing,Power,Utilities, Paper and Pulp,Ship Building,etc.

1.Body: Cast Iron/ Ductile Cast Iron/ Stainless Steel/ Carbon Steel etc.
2.Stem: Zinc Plated Steel/ Stainless Steel/ 2Cr13 stainless steel etc.
3. Disc: Ductile/Cast Iron/Stainless Steel/ AL-Bronze etc.

4.Seat ring:2Cr13 stainless steel,stellite,brass etc.

Picture Show
