4" Class150 CF8M/SS316 Y Pattern Globe Valve
- shanghai / tianjin / qingdao
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Stop | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, carbon steel,cast iron,casting steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 4" | |
| Place of Origin | Henan, China | Model Number | Globe Valve | |
| Brand Name | Gaoshan | Application | General |
Product Description

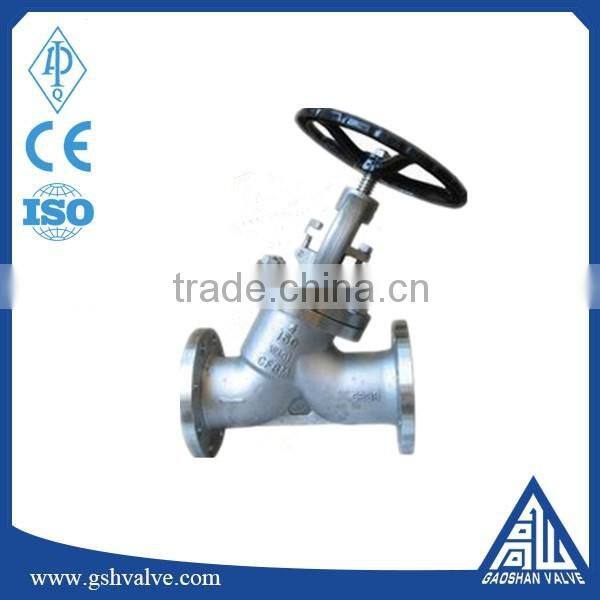

4" class150 CF8M/SS316 Y pattern globe valve
1.Brief Description:
1).Material:carbon steel,cast iron,casting steel
2).Size:4"
3).Applicable Medium:Water
4) Standard:ANSI
5) Working pressure:class150
6) Suitable temperature: -40~+260°C
2 Main parts material
NO. | Part Name | Material |
1 | Body | CF8,CF3 |
2 | Disc | 2Cr13,F304,F316 |
3 | Hinge pin | F304,F316 |
4 | Bellows combination | F304,F316L |
5 | Bonnet | GS-C25,CF8,CF3 |
6 | Packing | Flexible graphite,PTFE |
7 | Gland | F304,F316 |
9 | Hand wheel | Carbon steel |
10 | Gasket | Flexible graphite+stainless steel,PTFE |
11 | Stem | 2Cr13,F304,F316 |
3 Advantage
1). Simple structure,manufacture and maintenance more convenient.
2).Working stroke is small,opening and closing time is short.
3).Good sealing,sealing surface friction between the small,long service life.
1.Packing: plywood cases
2.Shipment: Within 20days after your po.
1.Good quality and low price.
2. free sample
3.Good after-sale service.
4.Bring the finest goods to customer is our ultimate goal.
5.Products are exported to various countries.
