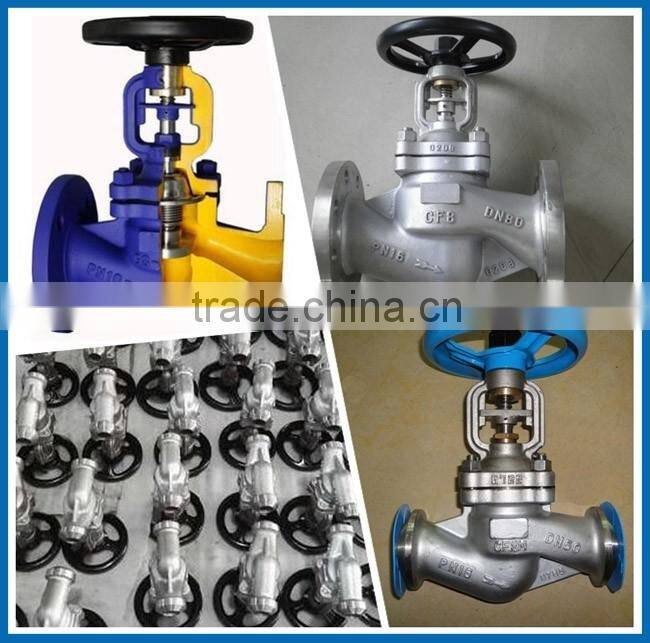

Wcb Bellows Globe Valve Pn10~pn40

1.Technical Data:

 (1) Nominal Diameter DN(mm) : 15-600

 (2) Nominal Pressure (MPa) : 1.0~4.0

 (3) Testing Pressure PN(MPa): Shell: 1.5~6.0 Sealing: 1.1~4.4

 (4) Suitable Mediums:water , oil , gas,steam

 (5) Working Temperature:-40~+260°C

2.Design consideration :

Design Standard:       DIN3356,EN13709,ASME B16.34, BS1873
Face to Face:             EN 558, DIN3202 ,ASME B16.10,
End Flange:                DIN2533 ,ASME B16.5, ASME B16.47,
Buttwelding Ends:      DIN3239 ,ASME B16.25,
Inspection and Test:  DIN3230,EN12627,API 598

3.Body Meterial could be:

Cast steel / stainless steel 304/316

1.Shipment:Within 20days after your po.

2.Packing & Transport :

 1.Best price with high quality,

 2.18 months Guarantee Period.

 3.The standard could be ANSI,DIN,GB,ISO,GOST and so on.

 1.More than 40 years Professional Experience.

 2.The sample of material will be preserved more than 10 years.

 3.We have obtained safety approval of API,CE,ISO.

 1.Standard.
 2.Size.
 3.Material .
 4.Connection type.
 5.Medium.
 6.Temperature.

Quality achievement brand, honesty cast the future!

Would like to know more ,contact me please!
