Home > Products > check valve > 2" Swing check valve female NPT

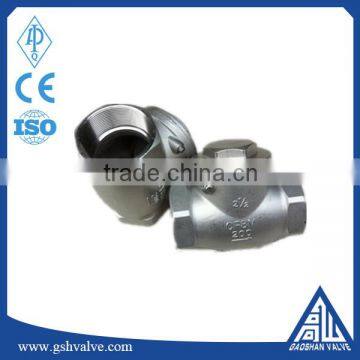

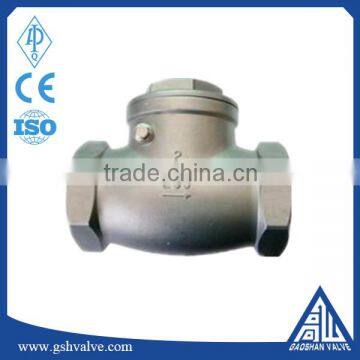

2" Swing check valve female NPT
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Check | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | 2" | |
| Place of Origin | Henan, China | Model Number | H14W | |
| Brand Name | Gaoshan | Application | General |
Product Description
2" Swing check valve female NPT
1.Brief Description:
1).Model:H14W
2).Size:2"
3).Pressure:class 150lb-class 300lb
4).Temperature:-20℃~+200℃
5).Medium:water,acid,steam,petroleum etc
2. Design Standard
Design and manufacure:API 6D
Structural length: ASME B16.10
Flange connection:ASME B16.5
Test and inspection:API 598
3. Main Properties
Testing pressure | Nominal pressure(Mpa) | |||||
LB | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB |
Strength test | 3.1 | 7.8 | 15.3 | 23.1 | 37.8 | 63.4 |
Sealing test | 2.2 | 5.5 | 11.0 | 16.5 | 27.5 | 46.2 |
Air test | 0.5~0.7 | |||||
Working temperature | PTFE≤150°C, | |||||
4.Main Spare Parts
No. | Part name | Material |
1 | Body,Bonnet | CF8,CF8M |
2 | Plug | SS316,SS304 |
3 | Plug gasket | PTFE |
Shipping:20 days after order confirmed.
Packaging:Plywood case.
1.Good quality and low price.
2.Good after-sale service.
3.Bring the finest goods to customer is our ultimate goal.
4.Products are exported to various countries.
