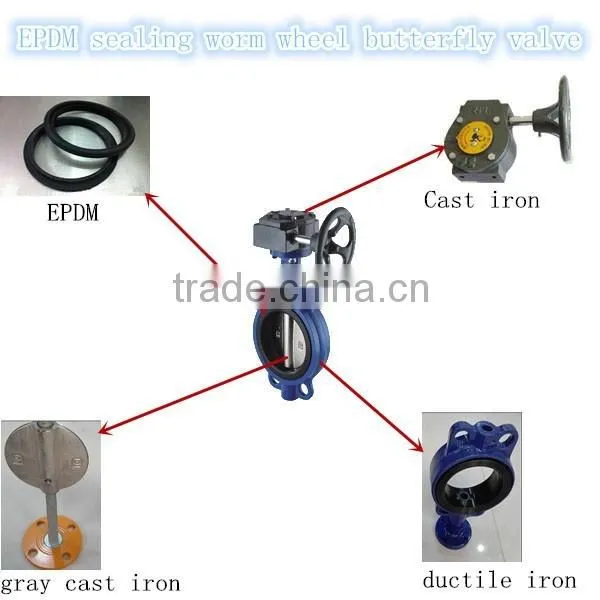

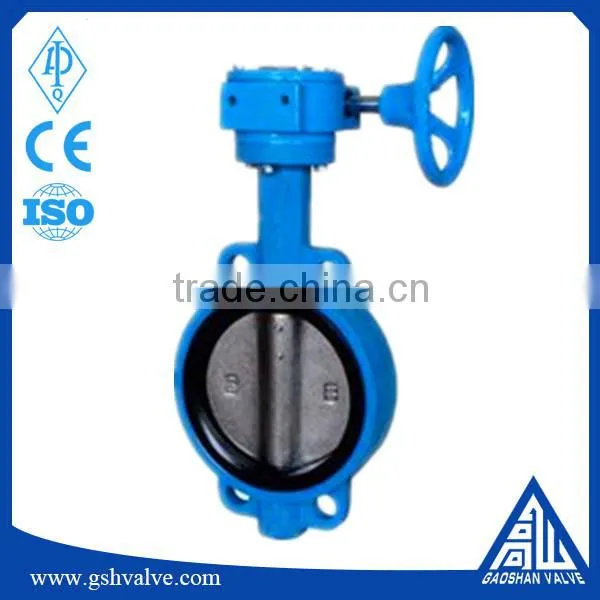

DN150 EPDM sealing worm wheel butterfly valve
1.Brief Description:
Nominal Diameter |
DN150 |
Valve Body |
ductile cast iron,cast steel,stainless steel |
Nominal Pressure |
PN10-PN16 |
Valve Disc |
gray cast iron,cast steel,Stainless Steel |
Operation Temperature |
-35℃~+120℃ |
Worm Wheel |
Cast Iron or Aluminium or Carbon Steel or Malleable Steel |
Drive |
worm wheel |
Seal Material |
EPDM |
Suface Treatment |
Painting |
Stem |
Carbon Steel or cast Iron or Stainless Steel |
Application |
Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. |
2 Products design features
1.Simple structure,small volume,light weight,small installation dimension.
2.With good sealing performance,and long life-span.
3.In the condition of the butterfly valve fully opened,it has little flow resistance.
4.Little driving couple,convenient and quick operation.
Shipping:20 days after order confirmed.
Packaging:Plywood case.
1.Good quality and low price.
2. free sample
3.Good after-sale service.
4.Bring the finest goods to customer is our ultimate goal.
5.Products are exported to various countries.
