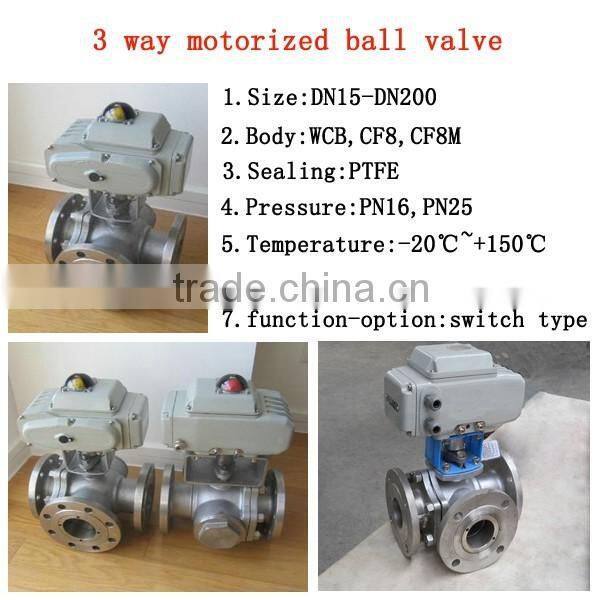

Electric flange Three-way SS304 SS316 ball valve
1.Brief Description:
1).Model:Q944F/Q945F
2).Size:DN15-DN200
3).Pressure:PN16,PN25
4).Temperature:-20℃~+150℃
5).Medium:Water,gas,oil
6).Driving mode:Electric operated
2 Design Standard
Steel ball valves API 6D/ASME 16.34
Face to face ASME B16.10
End flanges ASME B16.5
Buttwelding ends ASME B16.25
Inspection and test API 598/API 6D
3.Main Properties
Testing pressure | Nominal pressure(Mpa) | ||||
LB | 150 | 300 | 600 | 900 | 1500 |
The Shell testing | 2.94 | 7.67 | 15.3 | 23.0 | 39.0 |
Seal and test | 2.16 | 5.62 | 11.23 | 16.85 | 28.6 |
Have and seal texting | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Applicable temperature | -29℃~+121℃ | ||||
Applicable Medium | Natural gas,liquefied gas,Oil,water etc. | ||||
4.Main Spare Parts
No. | Part name | Material |
1 | Body | CF8(304),CF3(304L),CF8M(316) CF3M(316L) |
2 | Ball | 304,304L,316,316L |
3 | Stem | 2Cr13,CF8 |
4 | Seat | PTFE |
5 | Packing | PTFE |
Shipping:20 days after order confirmed.
Packaging:Plywood case.
1.Good quality and low price.
2.Good after-sale service.
3.Bring the finest goods to customer is our ultimate goal.
4.Products are exported to various countries.
