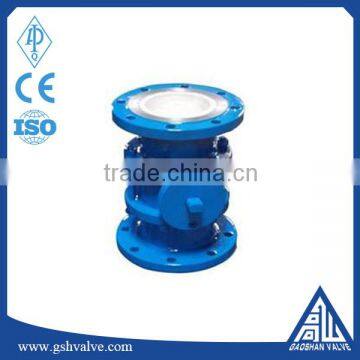

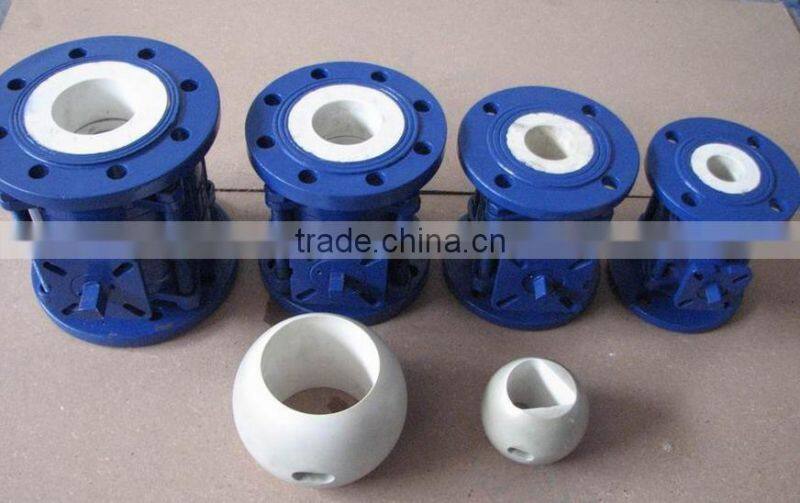

Cast Steel Flange Type Ceramic Ball Valve

1. Ceramic Ball Valve  Material:
* ASTM A216 WCB
  A351 CF8, CF8M, CF3, CF3M, CF3MN, CN7M

2. Ceramic Ball Valve  Pressure rating and size:
* API, ANSI, ASME, MSS, BS, DIN, JIS
* PN10, PN16, PN25, Class 150 : DN15 to DN350

3. Ceramic Ball Valve  Features:
* Design - API 608/ API 6D/ BS5351/ ANSI B16.34/ ISO 14313/MSS SP 72
* Face to Face & End to End - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ISO7005-1/ API 605/ BS 3293/ DIN
* Test - API 598
* Seat - PTFE, FEP, PFA, PO, PE
* Bore - Full Bore

4. Ceramic Ball Valve   Applications:
* Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.

5. Ceramic Ball Valve  Structure:
* 2 pieces body type
* End entry
* Floating ball
* Soft seal
* Full bore ( FB )

6. Ceramic Ball Valve  Temperature rating:
* -45°C - + 350 °C or above

7. Ceramic Ball Valve  Operators and option:
* Pneumatic / Electric/ Worm Gear/ Locking Device/ Lever etc.

8. Ceramic Ball Valve  CERTIFICATES :
* API 6D, API 6FA, CE, ISO 9001

 (1)Q: Could you provide samples?
A: Sure. We could send you free samples.
(2)Q: What kind of certificates do you have?
A: We have ISO, TUV, API,SGS,BV etc.
(3)Q: Could you produce according to the drawing?
A: Sure. We could produce according to the provided drawings, which include forged and casted items.
(4)Q: If I have place an order, how do I track the process of the order?
A: Firstly, we surely will finish the production according to theappointedtime in the order,Secondly, You could visit our website.
If you have no time to visit, we could inform you the process by e-mail.

 1.Professional technicians more than 40 years and experienced workers.
2.Bring the finest goods to customer is our ultimate goal.
3.Products are exported to various countries.
4. We have got the authority of the API ,CE and ISO certification.
